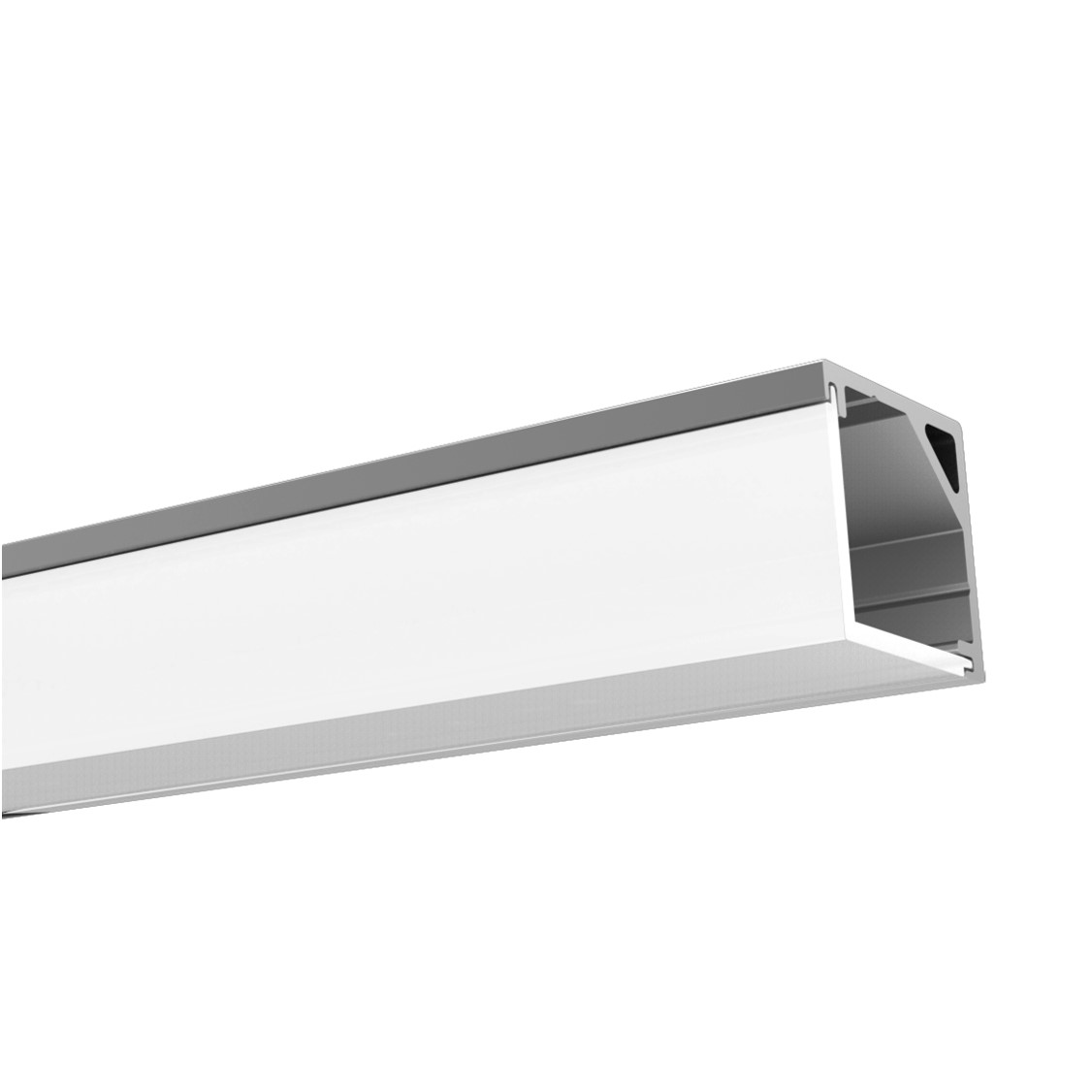

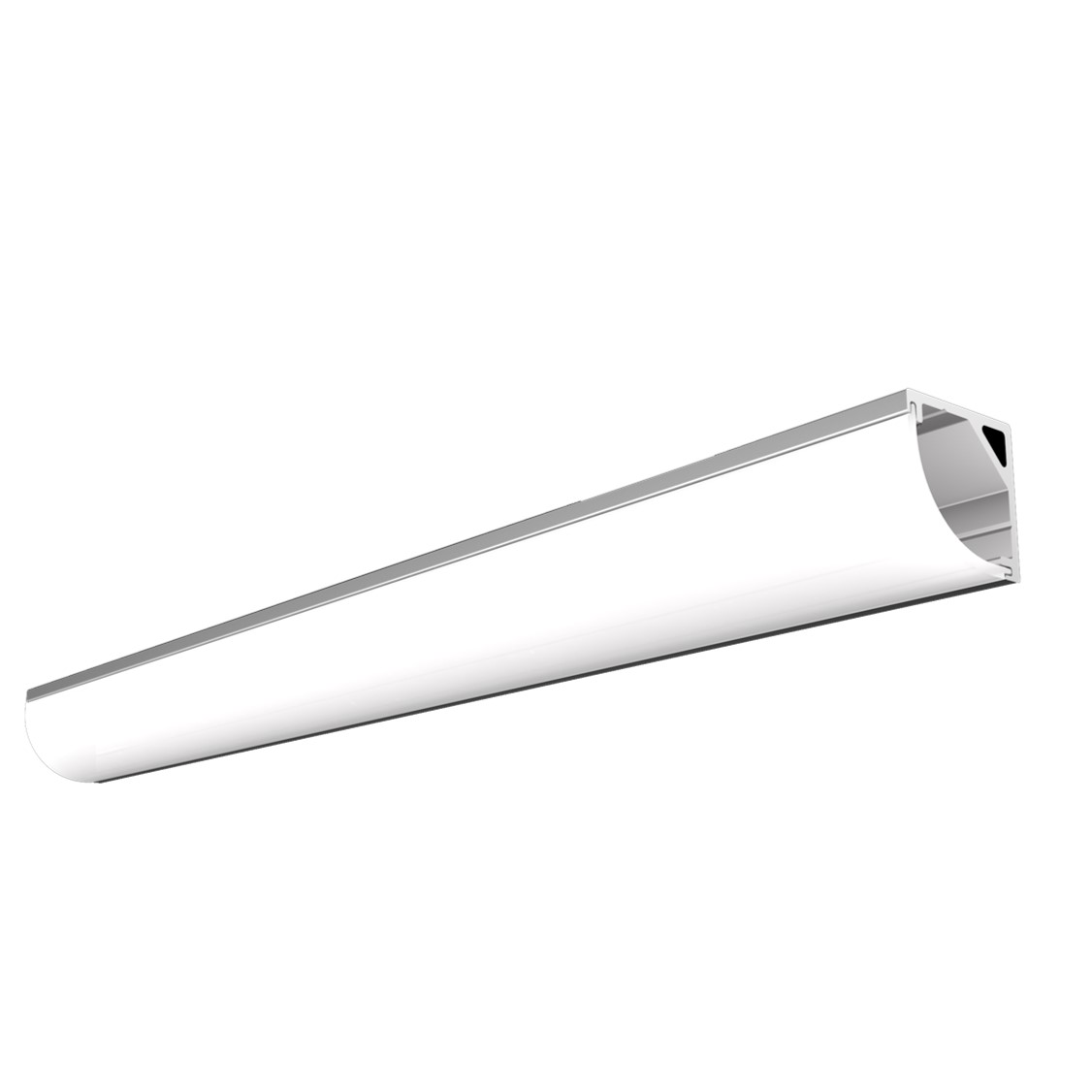

DIMENSION : 16 x 16 MM INSTALLATION : CORNER MOUNTING MATERIAL : AL6063-T5 PCB WIDTH : 8MM

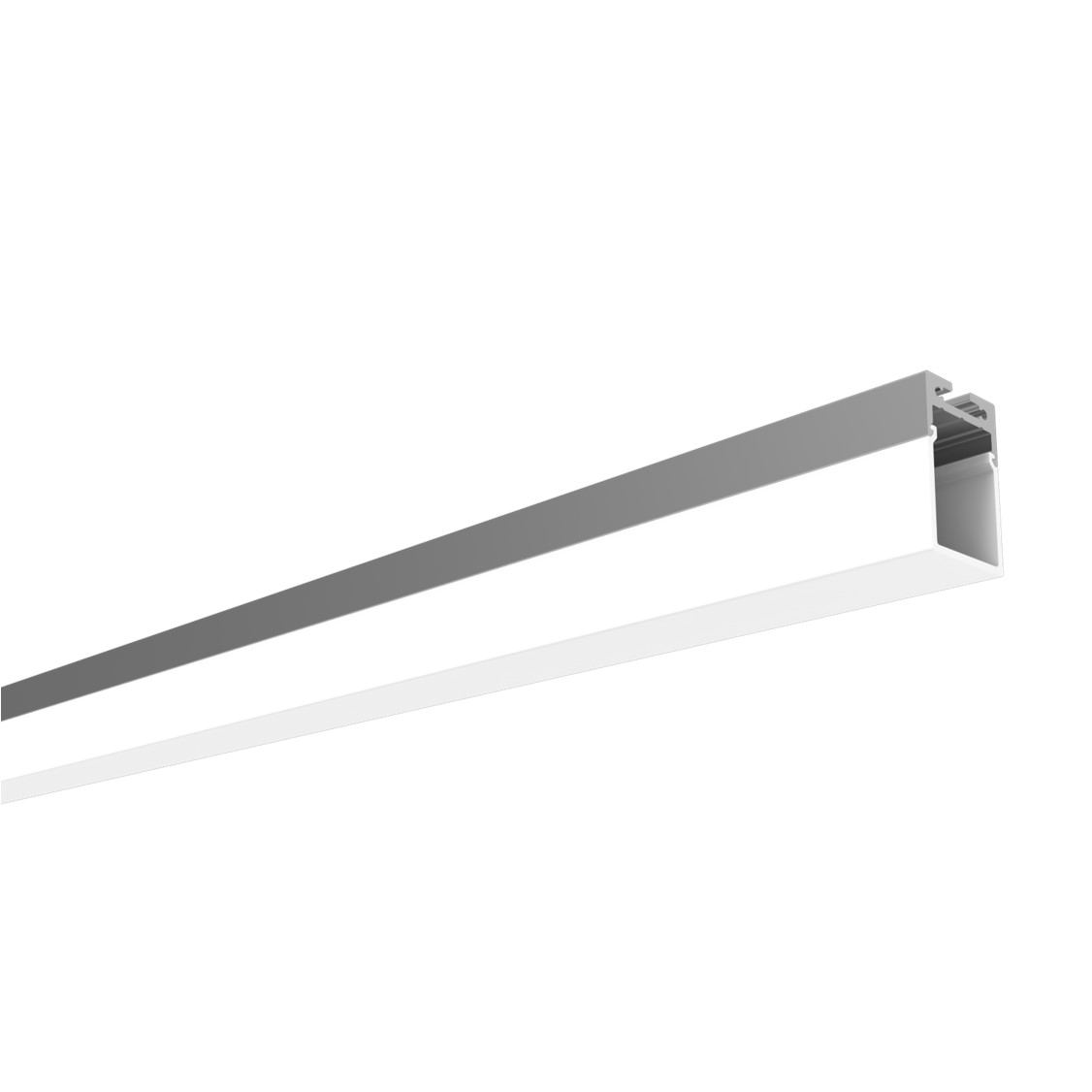

DIMENSION : 19.7 x 30 MM MATERIAL : AL6063-T5 PCB WIDTH : 10MM

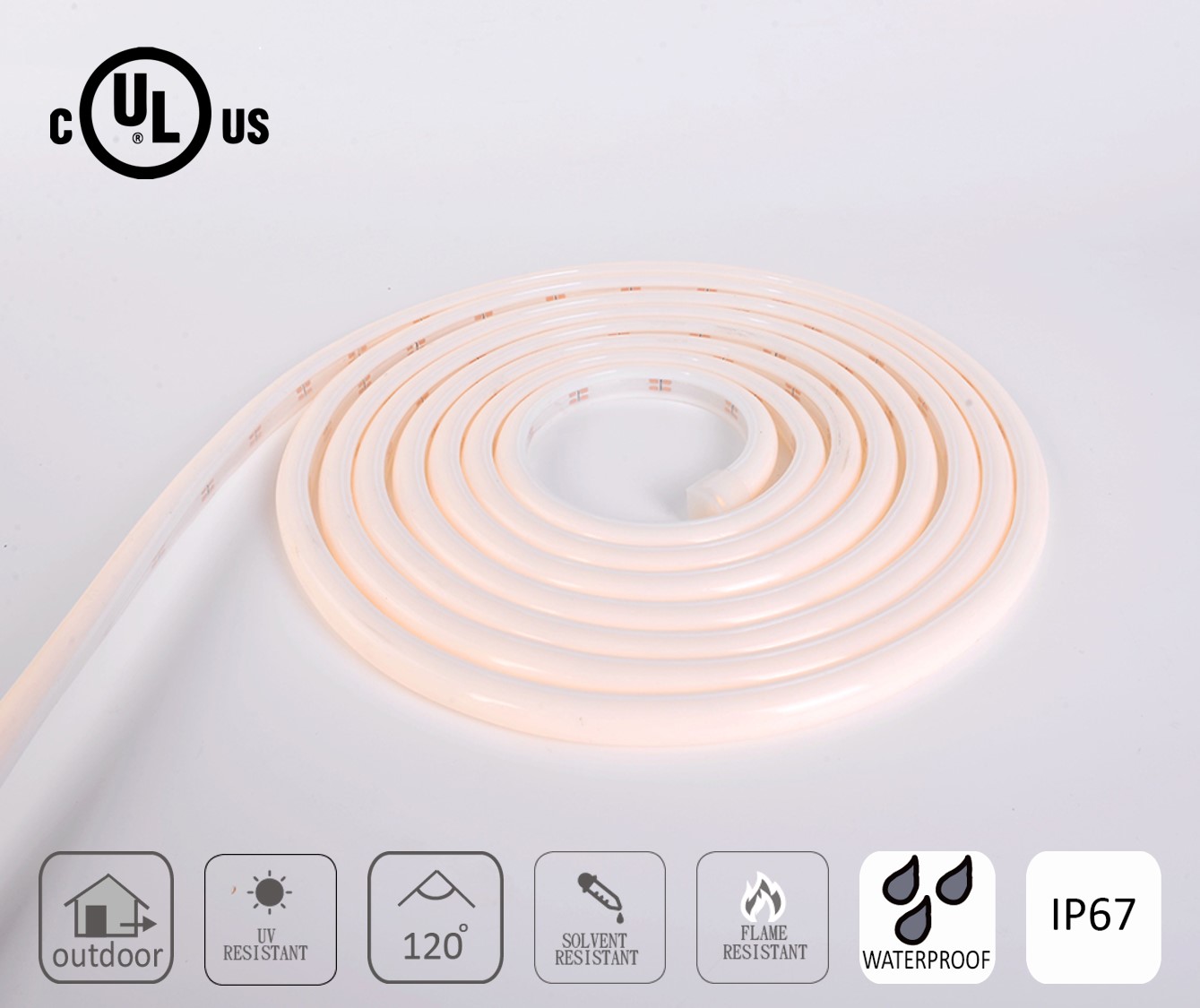

NNT1615 (Top view) ----------------------------------- ◆High luminous efficiency, unique optical light distribution structure, uniform and soft lighting, dot-free and no shadow ◆High light transmittance, food-grade environmental silicone material, with good flexibility and stylish appearance, exquisite and unique ◆IP67, with resistances to saline solutions, acids & alkalis, corrosive gases, fire and UV ◆LM80 proved, UL、CE、ROHS certification ◆Ta:-20~45℃; Tc: 0℃～60℃ ----------------------------------- Basic Parameters Size： 15000×16×15mm Cutting unit： 42mm Input voltage： 24VDC Input current： 0.46A/1m & 6.85A/15m Typ.power： 11W/m Max.power： 12W/m Bend radius： ＞60mm ------------------------------------ Photo-electric Parameters CRI： >80 CCT： 2300k/2700K/3000K/4000K/5000K LM/m： 750/780/800/820/800 LM/W： 68/70/72/74/72

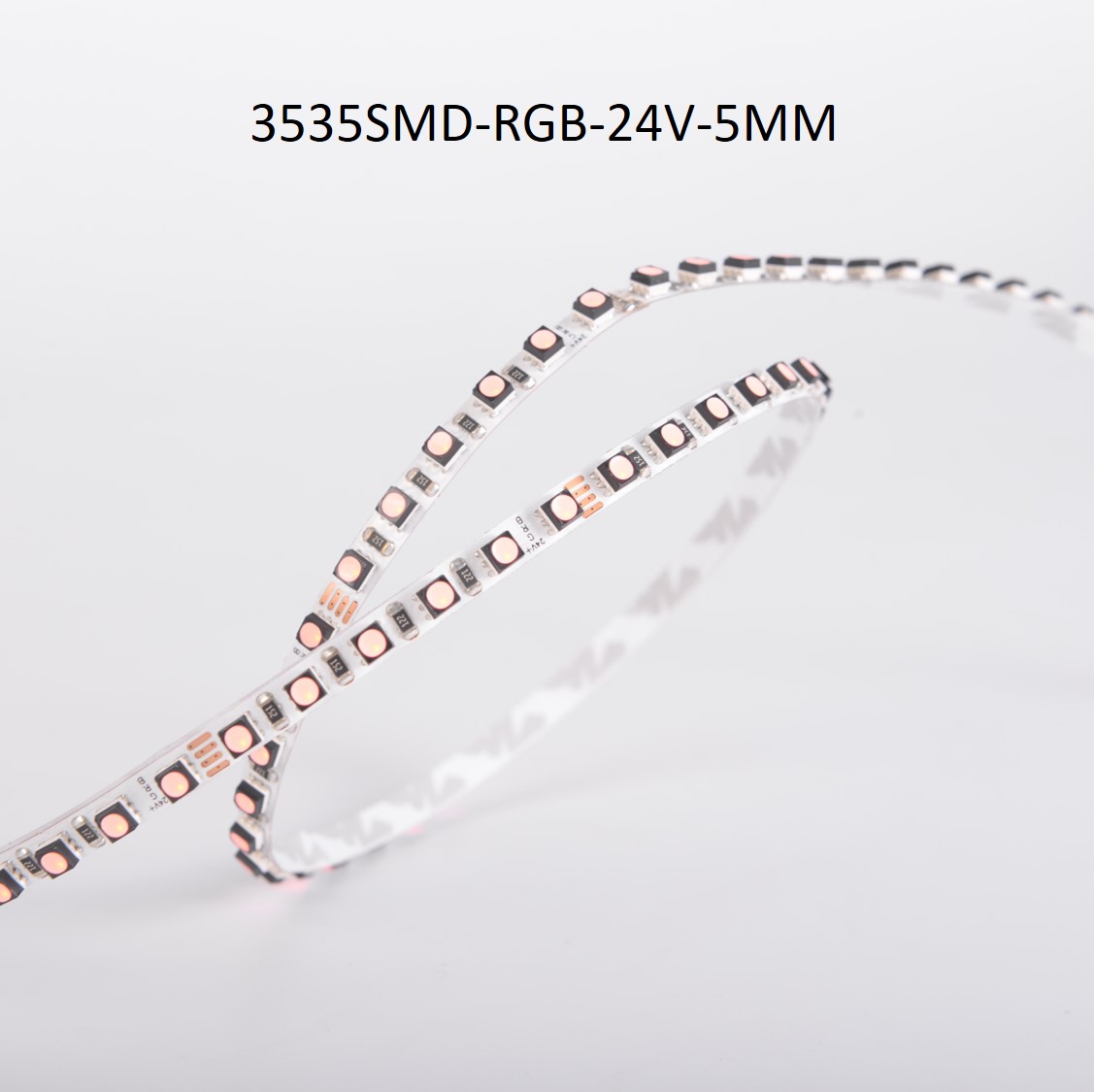

DC24V 3535RGB 120leds high density led strip light MODEL : D1120RGB-24-5 Item Type SMD3535 RGB high density LED Strip Led Model 3535RGB-120-24V LED Qty 120LEDs/M Cutting Size 50mm Ra CCT(K) RGB Dimmensions(mm) 5000 * 5 * 3.5(L * W * H) IP Rating IP20/IP65/IP67/IP68 Bean Angel 120º Certification CE/ROHS Warranty 2 Years

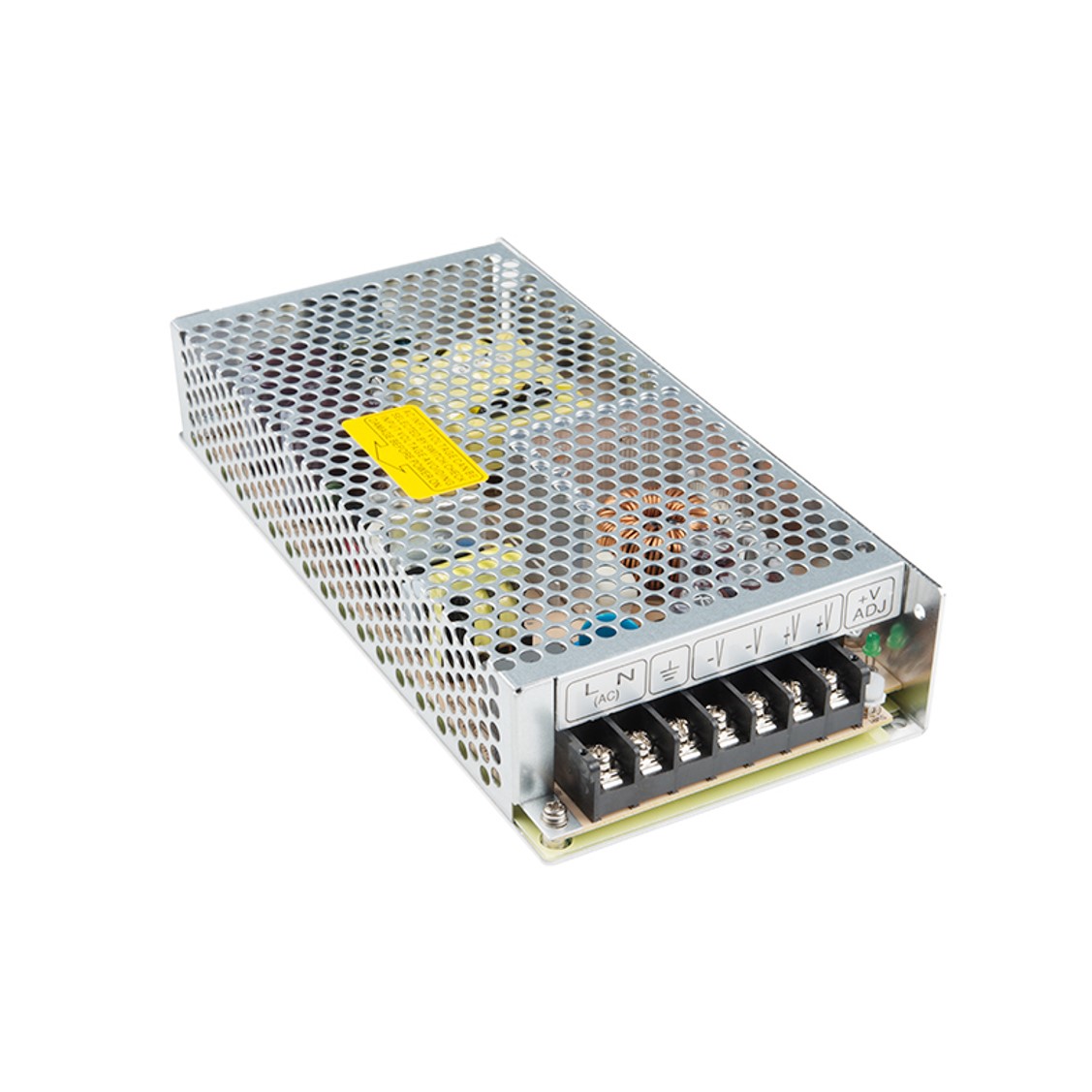

POWER SUPPLY INPUT : AC85-264V OUTPUT : DC12V MeanWell POWER SUPPLY TUV, UL

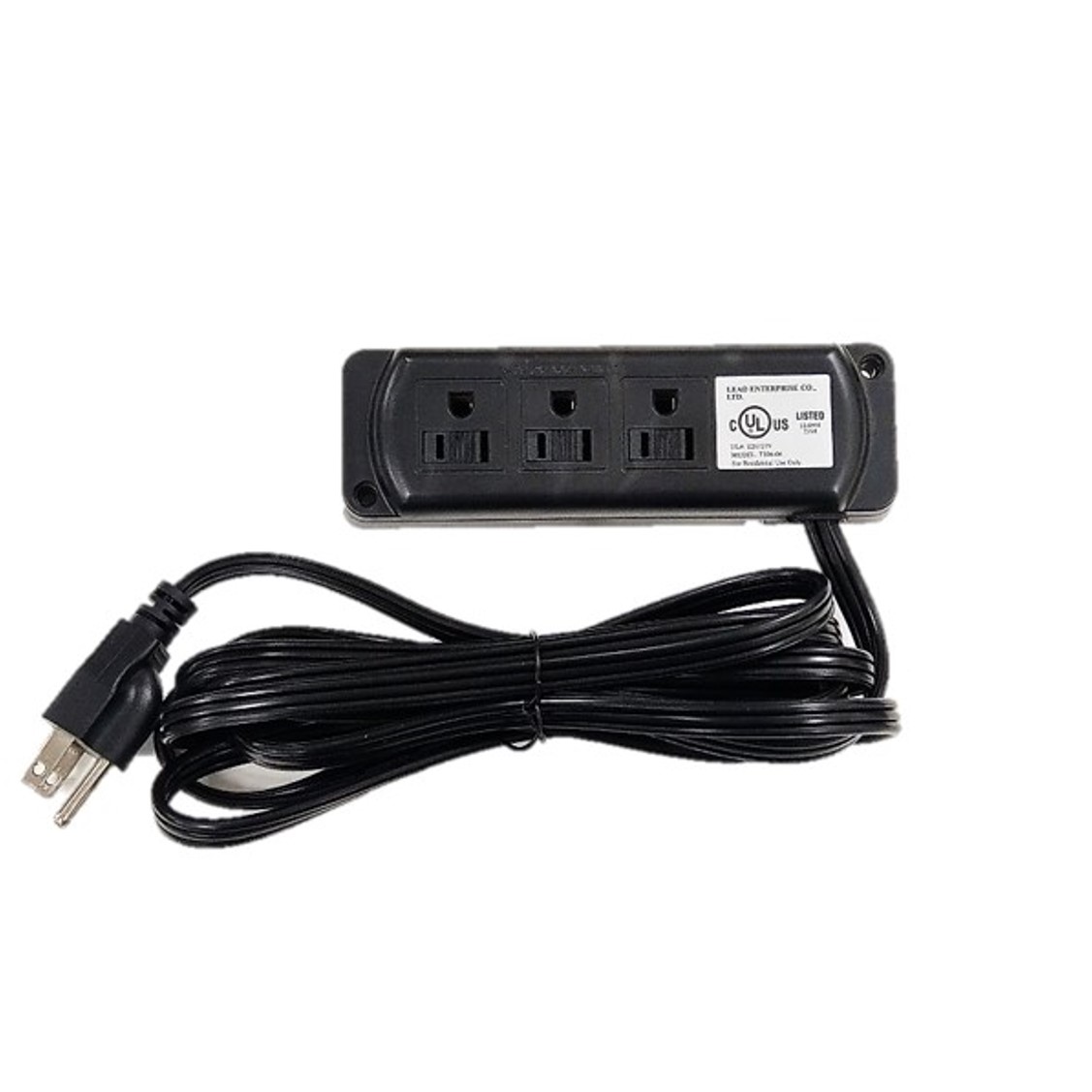

USA plug outlet x 3125V-12ADirect plugSurface mounted
LED UNDERCABINET LIGHT - LINEAR ------------------------------------ FEATURES Linkable Hardware or Plug AC 120V direct line voltage Easy installation ------------------------------------- CERTIFICATE ETL / Energy Star California Title 24 High energy compliant -------------------------------------- SPEC. Length : 8" / 12" / 16" / 24" / 32" Dimension : 2-3/4"(70mm)W * 15/16"(25mm)T AC 120V Beam angle : 120 Degree 2700K / 3000K / 4000K / 6000K Aluminum body with PC cover Triac Dimming

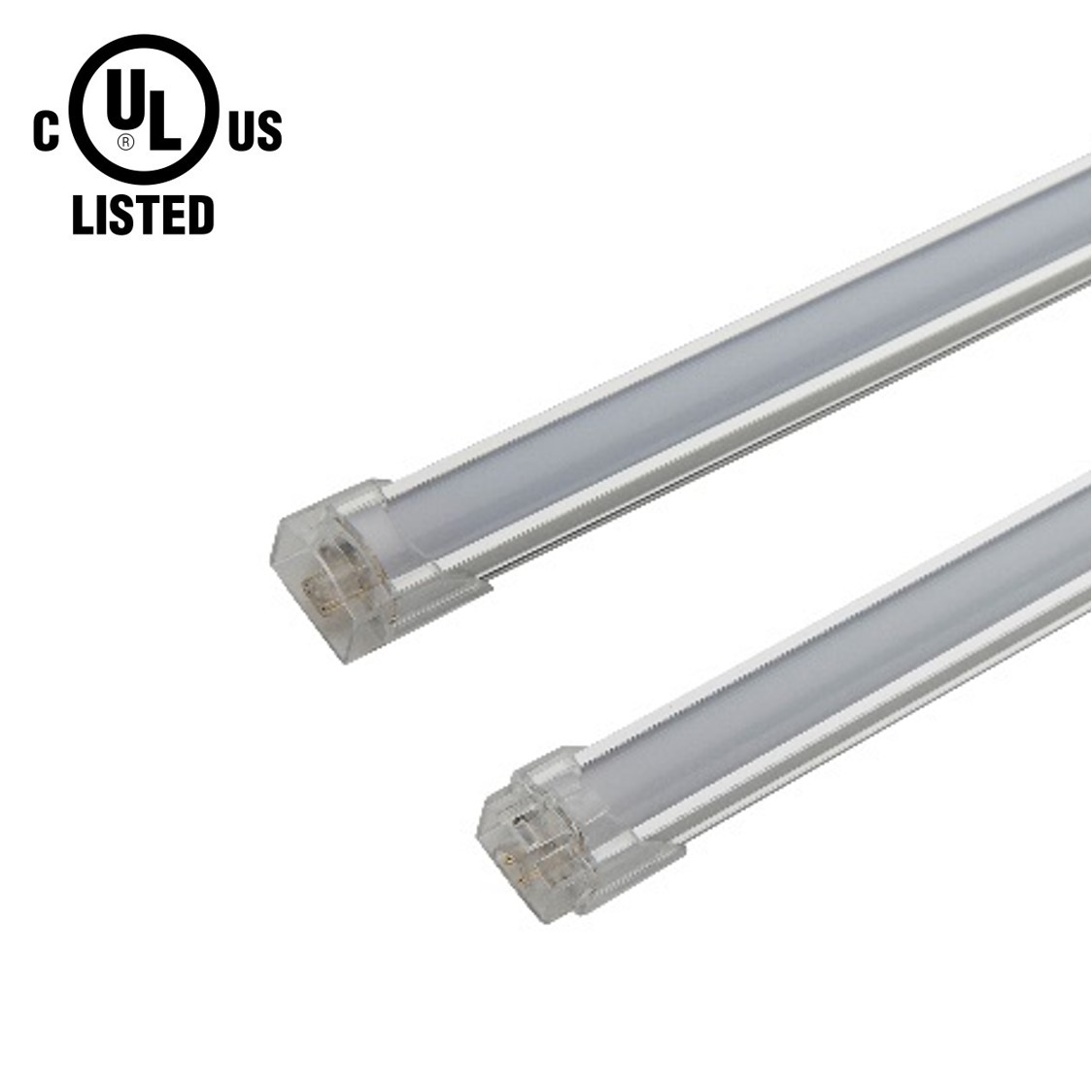

MODEL : LB2015 Direct linking / flex. linking
DIMENSION : 16 x 16 MM INSTALLATION : CORNER MOUNTING MATERIAL : AL6063-T5 PCB WIDTH : 8MM
DIMENSION : 19.7 x 19.6 MM MATERIAL : AL6063-T5 PCB WIDTH : 10MM

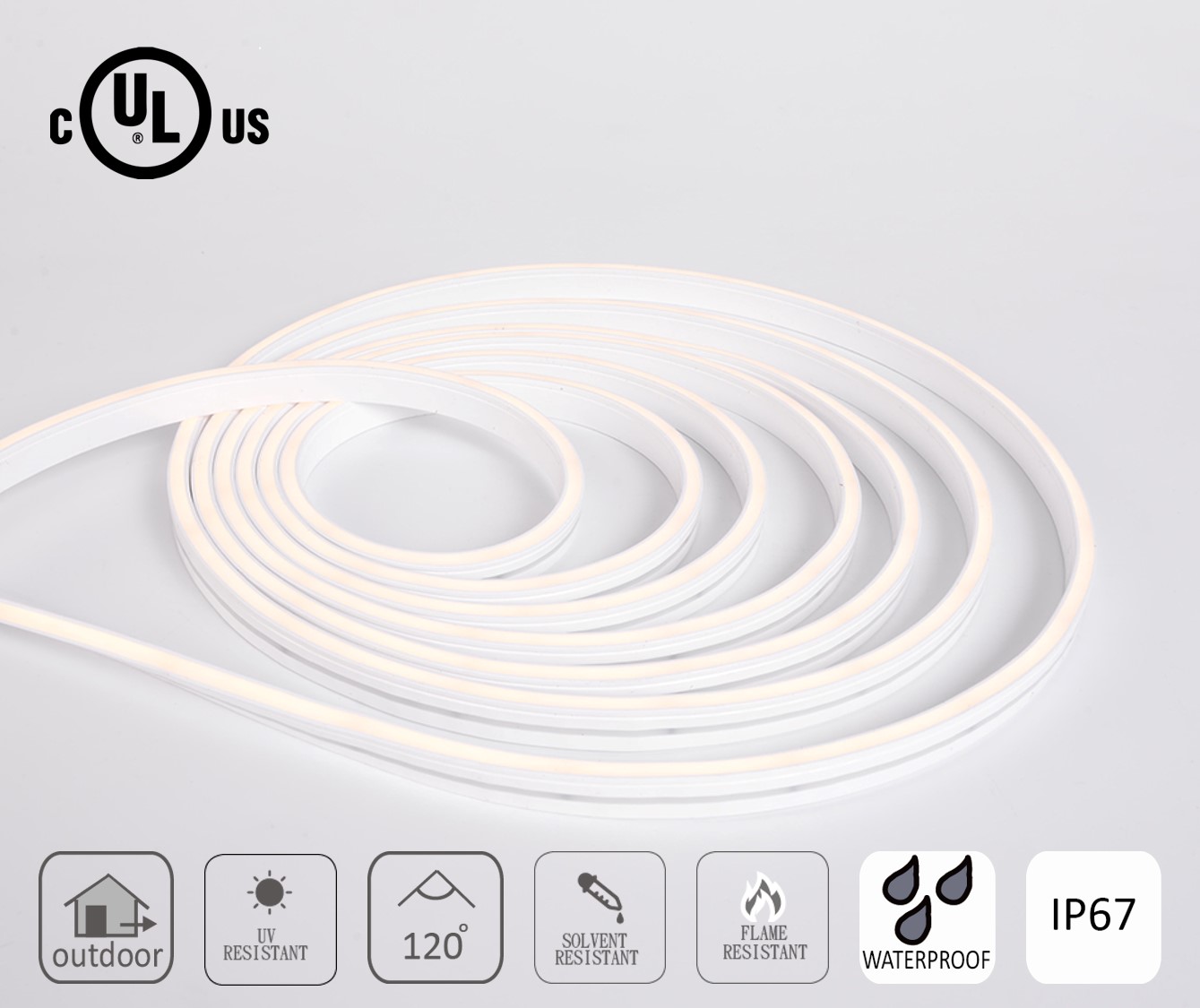

NTS0410(Side view) ----------------------------------- ◆High luminous efficiency, unique optical light distribution structure, uniform and soft lighting, dot-free and no shadow ◆High light transmittance, food-grade environmental silicone material, with good flexibility and stylish appearance, exquisite and unique ◆IP67, with resistances to saline solutions, acids & alkalis, corrosive gases, fire and UV ◆LM80 proved, UL、CE、ROHS certification ◆Ta:-20~45℃; Tc: 0℃～60℃ ----------------------------------- Basic Parameters Size： 5000×04×10mm Cutting unit： 42mm Input voltage： 24VDC Input current： 0.3A/1m & 1.5A/15m Typ.power： 7.2W/m Max.power： 8W/m Bend radius： ＞30mm -------------------------------------- Photo-electric Parameters CRI： >80 CCT： 2300k/2700K/3000K/4000K LM/m： 240/290/300/300 LM/W： 33/40/41/41

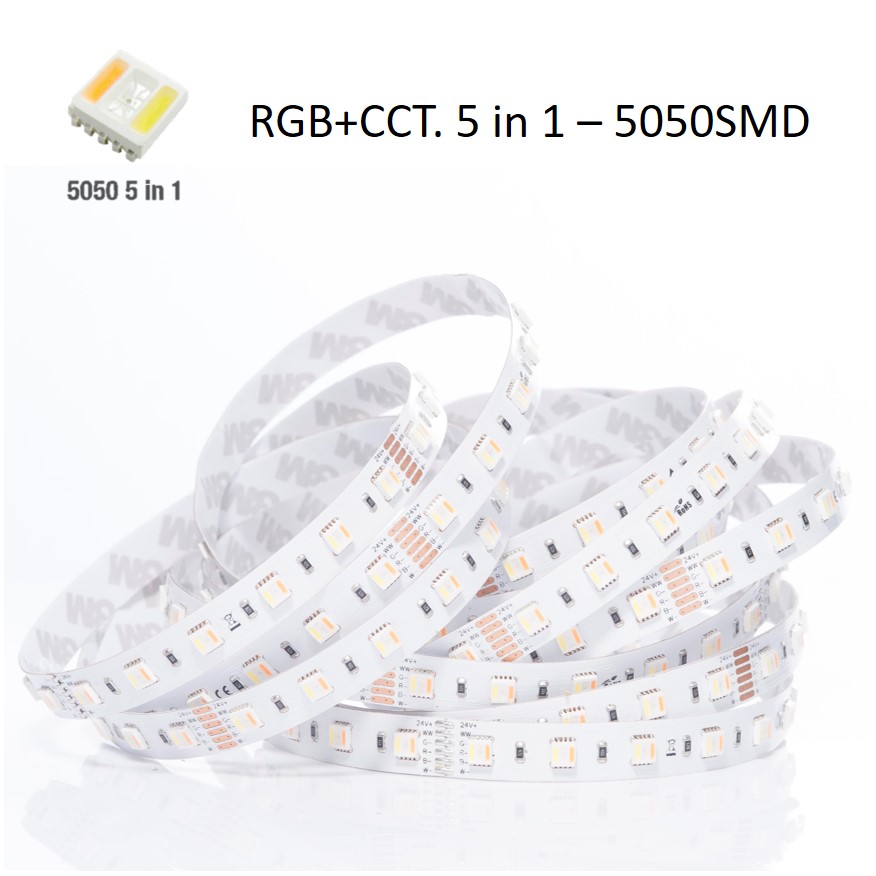

DC24V 5in1 RGBWW+W 60leds low power consumption led strip light MODEL : D560RGBLWW-24-12 Item Type SMD5050 5 in 1 RGB+W+WW LED Strip Led Model 5050RGBCCT-60 LED Qty 60LEDs/M Cutting Size 100mm Ra 80 CCT(K) RGB+2700K/3000K/4000K/6000K Dimmensions(mm) 5000 * 12 * 2(L * W * H) IP Rating IP20/IP65/IP67/IP68 Bean Angel 120º Certification CE/ROHS Warranty 2 Years
