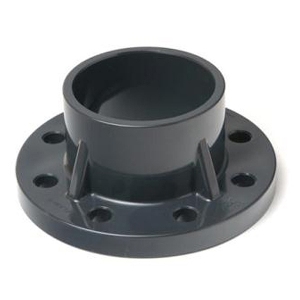

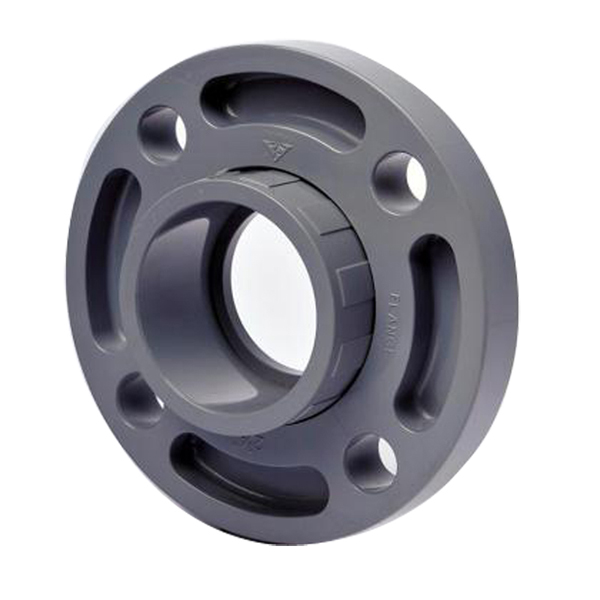

Size D D1 C d d1 d2 H T I n-Φe DIN JIS DIN JIS DIN JIS DIN JIS 1/2"(15) 95.00 32.00 65.00 70.00 15.00 20.30 22.40 20.10 21.73 35.00 14.00 32.00 4-15 4-15 3/4"(20) 105.00 35.00 75.00 75.00 20.00 25.30 26.45 25.10 25.69 40.00 15.00 37.00 4-15 4-15 1"(25) 125.00 42.00 85.00 90.00 25.00 32.30 32.55 32.10 31.70 45.00 16.00 40.00 4-19 4-19 1¼"(32) 140.00 52.00 100.00 100.00 32.00 40.30 38.60 40.10 37.65 49.00 16.00 44.00 4-19 4-19 1½"(40) 150.00 62.00 110.00 105.00 43.00 50.30 48.70 50.10 47.74 59.00 18.00 54.00 4-19 4-19 2"(50) 165.00 76.00 125.00 120.00 55.00 63.30 60.80 63.10 59.78 66.00 20.00 61.00 4-19 4-19 2½"(65) 185.00 90.00 145.00 140.00 65.00 75.30 76.60 75.10 75.68 70.00 22.00 61.00 4-19 4-19 3"(80) 200.00 108.00 160.00 150.00 80.00 90.30 89.60 90.10 88.55 73.00 22.00 64.50 8-19 8-19 4"(100) 220.00 132.00 180.00 175.00 100.00 110.40 114.70 110.10 113.60 93.00 22.00 83.50 8-19 8-19 5"(125) 250.00 162.00 210.00 210.00 125.00 140.50 140.85 140.20 139.64 114.00 24.00 103.00 8-19 8-23 6"(150) 285.00 187.00 240.00 240.00 150.00 160.50 166.00 160.20 164.63 142.00 26.00 130.00 8-23 8-23 10"(250) 395.00 309.00 350.00 —— 250.00 280.90 —— 280.30 —— 156.00 28.00 146.50 12-23 ——
SCH80 unit: mm Size D D1 C d d1 d2 H T I n-Φe 1/2" 87.00 30.00 60.30 15.00 21.54 21.23 26.00 14.00 23.00 4-16 3/4" 98.00 38.00 70.00 20.00 26.87 26.57 29.00 15.00 26.00 4-16 1" 108.00 47.00 79.40 25.00 33.66 33.27 33.00 16.00 29.00 4-16 1¼" 117.00 55.00 88.90 32.00 42.42 42.04 37.00 18.00 32.00 4-16 1½" 128.00 60.50 98.00 40.00 48.56 48.11 42.80 19.00 36.60 4-16 2" 155.50 73.80 121.00 51.00 60.63 60.17 45.50 21.00 40.00 4-19 2½" 178.00 89.00 140.00 63.00 73.38 72.85 52.50 25.00 46.50 4-19 3" 192.00 108.00 152.00 77.00 89.31 88.70 56.50 27.00 50.00 4-19 4" 230.00 133.00 191.20 102.00 114.76 114.10 67.00 29.00 59.80 8-19 5" 256.00 161.80 216.00 129.00 141.81 141.00 77.50 31.00 69.40 8-22 6" 285.00 191.00 241.00 156.00 168.83 168.00 88.00 33.00 79.00 8-22 8" 343.00 243.00 298.00 204.00 219.84 218.70 118.00 36.00 102.00 8-22 10" 406.40 308.00 362.00 256.00 273.81 272.67 151.00 42.00 127.50 12-25 12" 483.00 364.00 432.00 307.00 324.61 323.47 173.00 42.00 153.00 12-25 PN16 unit: mm Size D D1 C d d1 d2 H T I n-Φe 8"（200） 343.0 248.0 298.0 204.0 225.7 225.3 131.0 36.0 119.0 8-23 10"（250） 395.0 275.0 350.0 225.0 250.8 250.3 141.0 32.0 131.5 12-23 12"（300） 445.0 346.0 400.0 300.0 316.0 315.4 190.0 42.0 165.0 12-23

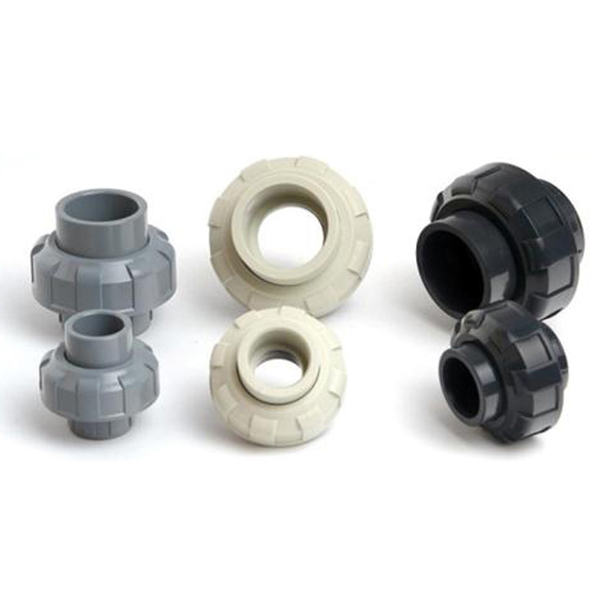

SIZE d d1 d2 D L L1 ANSI DIN JIS CNS ANSI DIN JIS CNS ANSI/JIS/CNS DIN ANSI/JIS/CNS DIN 1/2"(15) 15 21.54 20.30 22.40 22.40 21.23 20.10 21.73 21.90 54.00 53.50 41.00 22.30 16.00 3/4"(20) 20 26.87 25.30 26.45 26.40 26.57 25.10 25.69 25.90 63.00 60.00 47.50 25.50 19.00 1"(25) 25 33.65 32.30 32.55 34.50 33.27 32.10 31.70 33.90 73.50 67.00 53.50 28.60 22.00 1¼"(32) 32 42.42 40.30 38.60 42.50 42.04 40.10 37.65 41.90 84.50 76.00 63.00 32.00 26.00 1½"(40) 40 48.56 50.30 48.70 48.60 48.11 50.10 47.74 47.90 98.00 83.00 78.00 35.00 32.00 2"(50) 50 60.63 63.30 60.80 60.60 60.17 63.10 59.78 59.90 119.00 90.00 38.00 2½"(65) 63 73.38 75.30 76.60 76.70 72.85 75.10 75.68 75.90 150.00 110.00 47.00 3"(80) 75 89.31 90.40 89.60 89.70 88.70 90.10 88.55 88.90 169.00 127.00 51.00 4"(100) 97 114.76 110.40 114.70 115.00 114.10 110.10 113.60 113.80 211.00 158.00 61.00

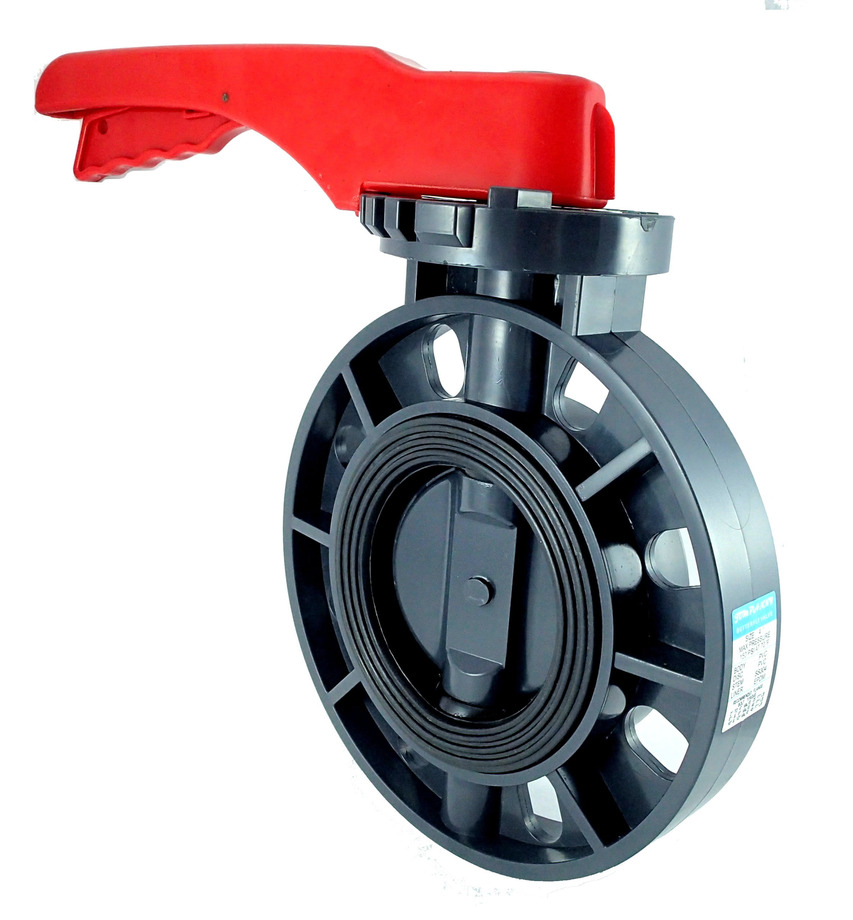

設計 1. 增加氣動,電動操作器平台螺絲孔便於客戶換裝2. 開關角度控制方式更新設計,去掉易生鏽的金屬物3. 頸部增加高度以便於施工連接4. 閥體為整圈完整設計形狀,重量較重,使得受力性能較高,延長了使用壽命5. 內徑及表面採用的精加工機床，內徑還採用螺紋型，使與密封圈配合更加緊密，可靠6. 閥體與桿裝配的孔都用最新式進口專用的鏜孔機加工，確保密封的可靠性7. 手柄設計更美觀,加寬受力面,不易折斷延長使用壽命8. 操縱握把變更為PVC材質,杜絕舊款生鏽的可能,且操作方便舒適9. 增加肋條，使密封圈更緊密，密封性更好10. 材質SUS304, 鋼軸體設計較粗,確保耐高壓力時,不會出現輕微變形而影響密封性能
