Rectangular box series-TL5C series （TL5C light tube suitable） Model Input Voltage(V) Input Current(A) Input Power(W) Lamp Current(A) Power Factor(%) Lamps Type(W) BM-U5C0221 110 / 220 0.24 ~ 0.12 26 0.3 99 TL5C 22 BM-U5C0401 110 / 220 0.42 ~ 0.21 45 0.32 99 TL5C 40 BM-U5C0551 110 / 220 0.5 ~ 0.25 56 0.42 99 TL5C 55 BM-U5C0601 110 / 220 0.61 ~ 0.3 67 0.45 99 TL5C 60 BM-U5C0222 110 / 220 0.47 ~ 0.24 52 0.3 99 TL5C 22 BM-UTC4022 110 / 220 0.61 ~ 0.3 67 0.3 99 TL5C 22 / 40 BM-UTC5522 110 / 220 0.73 ~ 0.37 80 0.27 / 0.45 99 TL5C 22 / 55 Certified with CNS 13755 and registered for authentication by Bureau of Standards, Metrology and Inspection ,MOEA. CNS 14115 EMI specification compliant.

Hole diameter：348mm FL series（T8/T9 light tube suitable） Model Input Voltage(V) Input Current(A) Input Power(W) Lamp Current(A) Power Factor(%) Lamps Type(W) BM-UFL0203A 110 / 220 0.5 ~ 0.26 58 0.3 98 T8 18 T9 18 / 20 BM-AFL0323 110 0.97 106 0.26 99 T8 32 BM-AFL0363 110 0.99 108 0.3 99 T8 36 BM-AFL0403 110 1.04 114 0.3 99 T8 38 T9 38 / 40 BM-AFL0453 110 1.16 126 0.29 99 T8 45 BM-BFL0323 220 0.48 105 0.23 99 T8 32 BM-BFL0363 220 0.5 108 0.32 98 T8 36 BM-BFL0403 220 0.4 / 0.52 87 / 114 0.3 99 T8 30 / 38 T9 30 / 38 / 40 BM-BFL0453 220 0.58 126 0.32 99 T8 45 BM-CFL0403 277 0.39 / 0.41 108 / 114 0.31 99 T8 30 / 38 T9 30 / 38 / 40 Certified with CNS 13755 and registered for authentication by Bureau of Standards, Metrology and Inspection ,MOEA. CNS 14115 EMI specification compliant.

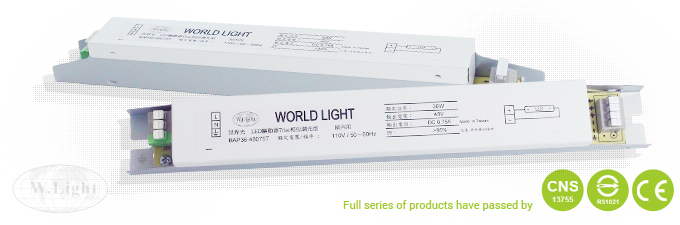

Specification Model Input Voltage(V) Input Current(A) Power Factor(%) Output Power(W) The range of output voltage(V) The range of output current(A) Constant voltage / Constant current BAP24-24100T 100~120V 0.3A/110VAC PF>0.97/110VAC 24W 24V 1.00A CC BAP24-30080T 100~120V 0.3A/110VAC PF>0.97/110VAC 24W 30V 0.80A CC BAP24-36066T 100~120V 0.3A/110VAC PF>0.97/110VAC 24W 36V 0.66A CC BAP24-42057T 100~120V 0.3A/110VAC PF>0.97/110VAC 24W 42V 0.57A CC BAP24-48050T 100~120V 0.3A/110VAC PF>0.97/110VAC 24W 48V 0.50A CC BAP24-54045T 100~120V 0.3A/110VAC PF>0.97/110VAC 24W 54V 0.45A CC BAP36-24150T 100~120V 0.4A/110VAC PF>0.97/110VAC 36W 24V 1.50A CC BAP36-30120T 100~120V 0.4A/110VAC PF>0.97/110VAC 36W 30V 1.20A CC BAP36-36100T 100~120V 0.4A/110VAC PF>0.97/110VAC 36W 36V 1.00A CC BAP36-42085T 100~120V 0.4A/110VAC PF>0.97/110VAC 36W 42V 0.85A CC BAP36-48075T 100~120V 0.4A/110VAC PF>0.97/110VAC 36W 48V 0.75A CC BAP36-54066T 100~120V 0.4A/110VAC PF>0.97/110VAC 36W 54V 0.66A CC BBP24-24100T 198~240V 0.16/220VAC PF>0.95/220VAC 24W 24V 1.00A CC BBP24-30080T 198~240V 0.16/220VAC PF>0.95/220VAC 24W 30V 0.80A CC BBP24-36066T 198~240V 0.16/220VAC PF>0.95/220VAC 24W 36V 0.66A CC BBP24-42057T 198~240V 0.16/220VAC PF>0.95/220VAC 24W 42V 0.57A CC BBP24-48050T 198~240V 0.16/220VAC PF>0.95/220VAC 24W 48V 0.50A CC BBP24-54045T 198~240V 0.16/220VAC PF>0.95/220VAC 24W 54V 0.45A CC BBP36-24150T 198~240V 0.2/220VAC PF>0.95/220VAC 36W 24V 1.50A CC BBP36-30120T 198~240V 0.2/220VAC PF>0.95/220VAC 36W 30V 1.20A CC BBP36-36100T 198~240V 0.2/220VAC PF>0.95/220VAC 36W 36V 1.00A CC BBP36-42085T 198~240V 0.2/220VAC PF>0.95/220VAC 36W 42V 0.85A CC BBP36-48075T 198~240V 0.2/220VAC PF>0.95/220VAC 36W 48V 0.75A CC BBP36-54066T 198~240V 0.2/220VAC PF>0.95/220VAC 36W 54V 0.66A CC   Features 1.Input voltage：AC 110~120V 220~240V 47~63HZ2.High power factor.3.Isolating type.4.Protection function：short / open / overload/ overcurrent.5.No load protection.(The dissipation power is less than 1W under no load voltage situation.)6.Dimmable range：5~100%. Notice 1.LED driver must be used indoor, and not suitable for outdoor or other humid places.2.Please check the output voltage and current of driver to see if it corresponds with the LED lamp before lighting up.3.In order to avoid the error and damage, the power supply loop of driver can’t be combined with other devices.4.Working temperature range is 0 – 50 degree Centigrade.5.Please don’t connect to the lamp under the power on situation.6.Pay attention to the polarity when installing the tube

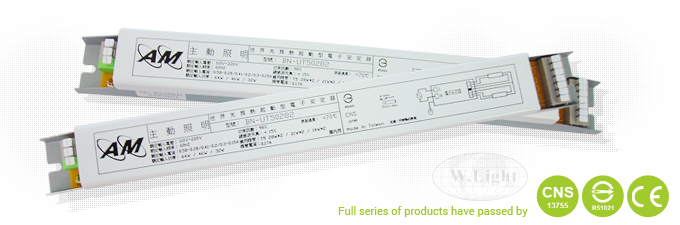

Hole diameter：300mm T5 Two lamp series（T5 light tube suitable） Model Input Voltage(V) Input Current(A) Input Power(W) Lamp Current(A) Power Factor(%) Lamps Type(W) BN-UT50282 110 / 220 0.58 ~ 0.15 32 / 46 / 64 0.17 98 T5 14 / 21 / 28 Certified with CNS 13755 and registered for authentication by Bureau of Standards, Metrology and Inspection ,MOEA. CNS 14115 EMI specification compliant.

Rectangular box series-PLT series(PL light tube suitable） Model Input Voltage(V) Input Current(A) Input Power(W) Lamp Current(A) Power Factor(%) Lamps Type(W) BM-UPT0421 110 / 220 0.44 ~ 0.13 29 / 37 / 48 0.3 97 TC-DEL 26 TC-T 26 / 32 / 42 BM-UPT0182 110 / 220 0.37 ~ 0.18 40 0.21 99 TC-DEL 18 BM-BPT0422 220 0.25 / 0.32 / 0.43 54 / 72 / 94 0.3 99 TC-DEL 26 TC-T 26 / 32 / 42 Certified with CNS 13755 and registered for authentication by Bureau of Standards, Metrology and Inspection ,MOEA. CNS 14115 EMI specification compliant.

Hole diameter：300mm FL series（T8/T9 light tube suitable） Model Input Voltage(V) Input Current(A) Input Power(W) Lamp Current(A) Power Factor(%) Lamps Type(W) BM-UFL0162 110 / 220 0.33 ~ 0.1 22 / 36 0.24 99 T8 10  T8 16 BM-UFL0202 110 / 220 0.36 ~ 0.18 40 0.32 99 T8 18 T9 18 / 20 BM-UFL0322 110 / 220 0.6 ~ 0.3 67 0.22 99 T8 32 BM-UFL0362 110 / 220 0.65 ~ 0.32 72 0.28 99 T8 36 BM-UFL0402 110 / 220 0.7 ~ 0.35 76 0.3 98 T8 38 / 40 T9 38 / 40 BM-AFL0452 110 0.9 98 0.42 98 T8 45 BM-AFL0582 110 1 110 0.42 99 T8 58  PL55 BM-BFL0402 220 0.28 / 0.35 61 / 76 0.3 99 T8 30 / 38 / 40 T9 30 / 38 / 40 BM-BFL0452 220 0.45 98 0.42 99 T8 45 BM-BFL0582 220 0.49 108 0.43 99 T8 58  PL55 BM-CFL0402 277 0.28 76 0.31 99 T8 38 / 40 T9 38 / 40 BM-CFL0582 277 0.42 114 0.47 99 T8 58 Certified with CNS 13755 and registered for authentication by Bureau of Standards, Metrology and Inspection ,MOEA. CNS 14115 EMI specification compliant.

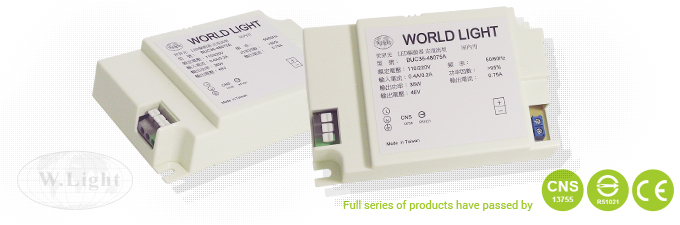

Specification Model Input Voltage(V) Input Current(A) Power Factor(%) Output Power (W) The range of output Voltage (V) The range of output Current(A) Constant voltage / Constant current 110VAC 220VAC 110VAC 220VAC BUC24-24100A 100~240V 0.3A 0.16A PF>0.97 PF>0.95 24W 24V 1.00A CC BUC24-30080A 100~240V 0.3A 0.16A PF>0.97 PF>0.95 24W 30V 0.80A CC BUC24-36066A 100~240V 0.3A 0.16A PF>0.97 PF>0.95 24W 36V 0.66A CC BUC24-42057A 100~240V 0.3A 0.16A PF>0.97 PF>0.95 24W 42V 0.57A CC BUC24-48050A 100~240V 0.3A 0.16A PF>0.97 PF>0.95 24W 48V 0.50A CC BUC24-54045A 100~240V 0.3A 0.16A PF>0.97 PF>0.95 24W 54V 0.45A CC BUC36-24150A 100~240V 0.4A 0.2A PF>0.97 PF>0.95 36W 24V 1.50A CC BUC36-30120A 100~240V 0.4A 0.2A PF>0.97 PF>0.95 36W 30V 1.20A CC BUC36-36100A 100~240V 0.4A 0.2A PF>0.97 PF>0.95 36W 36V 1.00A CC BUC36-42085A 100~240V 0.4A 0.2A PF>0.97 PF>0.95 36W 42V 0.85A CC BUC36-48075A 100~240V 0.4A 0.2A PF>0.97 PF>0.95 36W 48V 0.75A CC BUC36-54066A 100~240V 0.4A 0.2A PF>0.97 PF>0.95 36W 54V 0.66A CC   Features 1.Input voltage：AC 100~240V 47~63HZ2.High power factor3.Isolating type.4.Fuse switch is installed in LED driver to take precautions against errors and accidents.5.Short-circuit output protection function.6.No load protection.(The dissipation power is less than 1W under no load voltage situation.)7.It’s easy to install because of the small volume.8.Output voltage and current for LED can be customized. Notice 1.LED driver must be used indoor, not suitable for outdoor or other humid places.2.Do not install the LED driver in lantern with bad ventilation that may cause the driver broken.3.Please check the output voltage and current of driver to see if it corresponds with the LED lamp before lighting up.4.In order to avoid the error and damage, the power supply loop of driver can’t be combined with other devices.5.Working temperature range is 0 – 50 degree Centigrade.6.Please don’t connect to the lamp under the power on situation

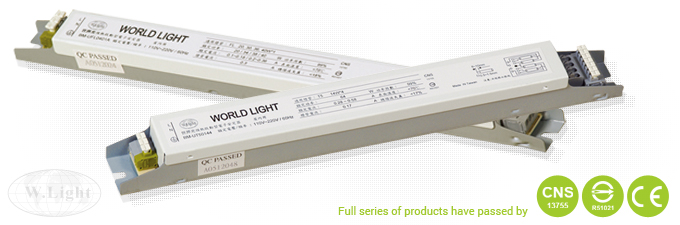

Hole diameter：300mm T5 single lamp series（T5 light tube suitable） Model Input Voltage(V) Input Current(A) Input Power(W) Lamp Current(A) Power Factor(%) Lamps Type(W) BL-UT50281 110 / 220 0.29 ~ 0.08 17 / 24 / 32 0.16 98 T5 14 / 21 / 28   Hole diameter：300mm T5 single lamp series（T5 light tube suitable） Model Input Voltage(V) Input Current(A) Input Power(W) Lamp Current(A) Power Factor(%) Lamps Type(W) BN-UT50351 110 / 220 0.3 ~ 0.08 18 / 25 / 34 0.17 98 T5 14 / 21 / 28 Certified with CNS 13755 and registered for authentication by Bureau of Standards, Metrology and Inspection ,MOEA. CNS 14115 EMI specification compliant.

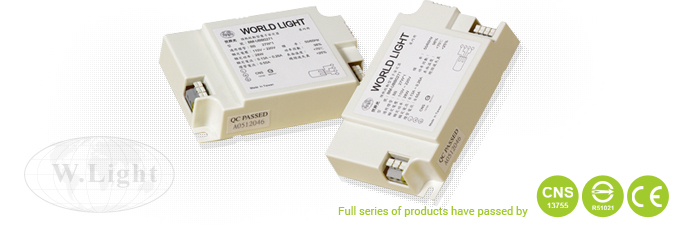

Rectangular box series-BB series（BB light tube suitable） Model Input Voltage(V) Input Current(A) Input Power(W) Lamp Current(A) Power Factor(%) Lamps Type(W) BM-UBB0271 110 / 220 0.26 ~ 0.13 28 0.55 98 BB 27 BM-UBB0272 110 / 220 0.52 ~ 0.25 54 0.53 99 BB 27 Certified with CNS 13755 and registered for authentication by Bureau of Standards, Metrology and Inspection ,MOEA. CNS 14115 EMI specification compliant.

Hole diameter：300mm FL series（T8/T9 light tube suitable） Model Input Voltage(V) Input Current(A) Input Power(W) Lamp Current(A) Power Factor(%) Lamps Type(W) BM-UFL0321 110 / 220 0.35 ~ 0.175 38 0.26 99 T8 32 BM-UFL0361 110 / 220 0.345 ~ 0.172 38 0.33 99 T8 36 BM-UFL0401A 110 / 220 0.36 ~ 0.09 20 / 34 / 38 / 40 0.3 98 T8 18 / 20 / 36 / 40 T9 18 / 20 / 38 / 40 BM-UFL0451 110 / 220 0.48 ~0.24 53 0.42 98 T8 45 BM-UFL0581 110 / 220 0.54 ~0.27 58 0.45 99 T8 58 PL 55 BM-CFL0321 277 0.135 37 0.26 99 T8 32 BM-CFL0401 277 0.15 40 0.31 99 T8 36 / 40 T9 38 / 40 BM-CFL0581 277 0.22 61 0.5 99 T8 58 Certified with CNS 13755 and registered for authentication by Bureau of Standards, Metrology and Inspection ,MOEA. CNS 14115 EMI specification compliant.
