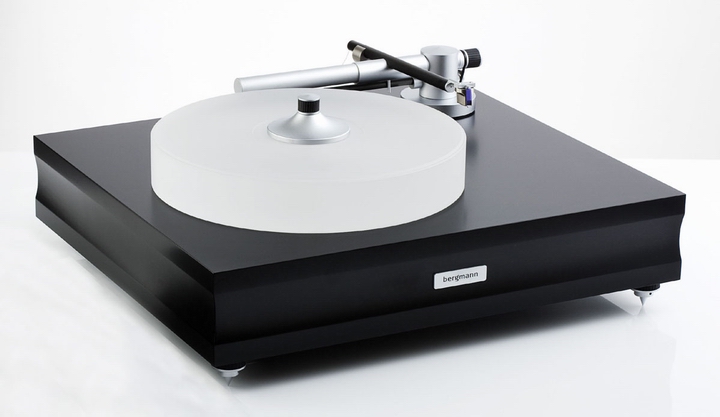

Bergmann Sindre 是一個藝術作品，不僅在外觀上，在聲音表現上亦是如此。在“少即是多”的設計理念下似乎滿足了的性能，安裝設定和可靠性的要求。原廠的目標是要克服許多所有過去和最新的設計當中固有的缺陷和曾經發現的問題。 技術規格： 氣浮式承盤座，主軸中心由一 鋼 / hardweared聚合物低摩擦軸承製成; 直流馬達; 皮帶驅動。  承盤主體材質板：實心纖維板。  承盤本體材質：壓克力，4公斤重。   承盤底座材質：鋁，3.2公斤。  總重量：23公斤。  尺寸：475 × 500 × 210（深x寬 x高） 唱臂：線性循軌airbearing唱臂, 材質為硬鋁合金 /碳。  有效質量：10克。  驅動馬達：獨立放置，33及45轉。  空氣幫浦：寧靜，清潔，乾燥，平穩的氣流。  重量：8.4公斤。  尺寸：415 × 210 × 220（深x寬 x高）

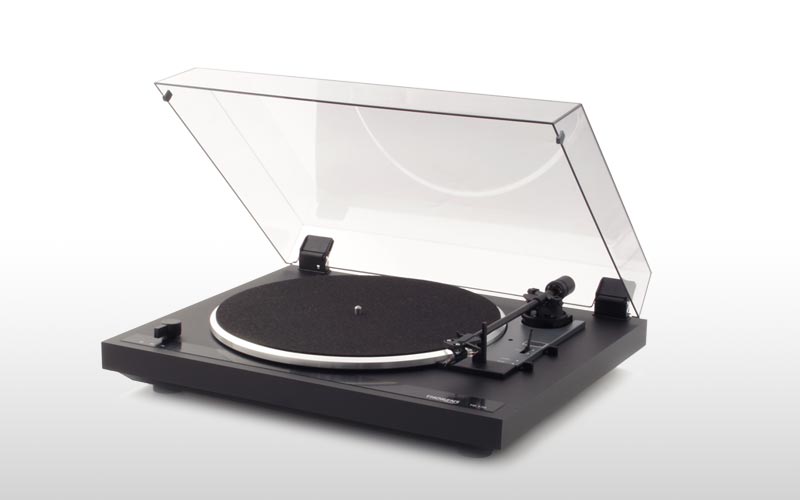

操作 全自動  驅動系統 內部扁平驅動皮帶  馬達 電子控制直流馬達  速度 33-1/3，45，78轉/分鐘  速度選擇 電子式  轉盤 12英吋/ 0.4公斤（鋁質、無磁性）  唱臂 THORENS TP18  唱頭 OMB 10  抗滑（偏向） 彈簧(可調整)  自動電源 機械式  電纜電容 160 pF  電源 外接電源轉接器（115V / 60 Hz）  尺寸 440 x 115 x 360毫米  重量 5.5公斤  隨貨配件 電源轉接器，防塵蓋（壓克力），RCA互連訊號線，操作說明  選購 內建phono 前級擴大機 (TD 170-1 phono)

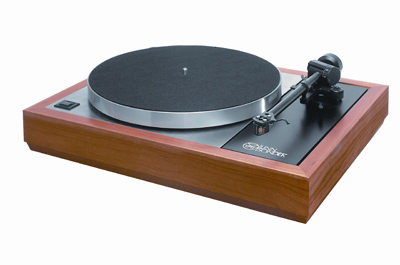

•專利低雜訊單點軸承，消除雜訊及最佳的訊號補償 •高質量皮帶驅動唱片盤，完美的平衡，最能保持速度穩定 •實木底座、不銹鋼底盤、懸吊內底盤以及穩定的唱臂平台，防止震動及聲音回授，並提穩定可靠的效能 •可從 Basik 機型逐步升級至 Lingo 機型，得到最精準的馬達控制與最細緻的音樂內容。(Lingo 以兩個高壓放大器提供相差 90 度的兩組低失真正弦波以驅動 LP12 馬達。正弦波由兩個低雜訊石英振盪器產生。獨特的電路負責監控馬達，並在啟動時以較大的功率驅動馬達，等到馬達穩定轉動，就會降低電壓，使馬達維持安靜運轉)規格:類型： 皮帶驅動唱盤 速度： 33.3/45 rpm  速度準確性： Lingo：0.03% (電源允差) 電源 Lingo：120V  消耗功率： ‹13W 尺寸： 寬 445 x 長 356 x 高 140mm  重量 ：3.75kg

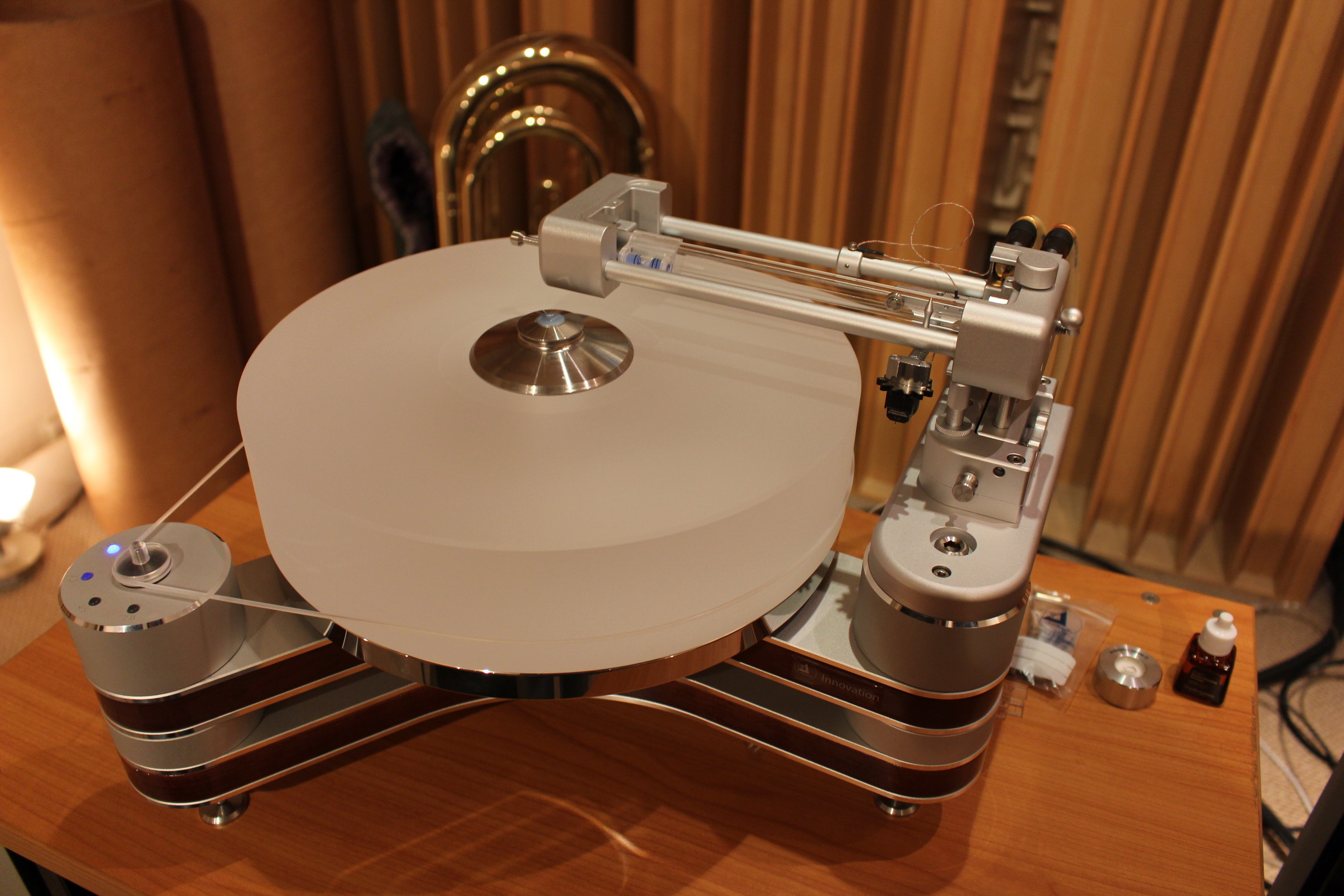

Clearaudio Innovation wood 唱盤 Clearaudio最新的傳統唱盤，以新技術 光學轉速控制系統（Optical Speed Control），讓所有玩家能輕易的以按鍵切換來選擇不同的轉速（33轉、45轉、甚至是78轉），而在轉速方面則是利用紅外線感應器來偵測轉盤的速度，好維持轉速的穩定性。即刻表現出Clearaduio另一個結合新技術與傳統唱盤的絕佳例子。 轉速 331/3 rpm, 45rpm, 78 rpm 驅動方式 光學轉速控制/系統 軸承 CMB 承盤高度 70mm 速度變化率 ±0.05% 重量 23 kg 尺寸 (W / D / H) 479 x 485 x 225 mm   Clearaudio TT3 正切式唱臂 使用超高精密度的瑞士軸承，二點式正切唱臂，包括舒適的VTA調整。陽極處理的鋁合金精確度基座。 Clearaudio Stradivari V2 MC唱頭 聲道輸出 Stereo / Mono 動態 MC 90 dB 總質量 7g 針尖鑽石形狀 Micro-HD-diamond tip. 線圈材質 24kt gold coils 輸出電壓 0.7 mV (@ 5 cm/sec) 抗阻 30 Ohm

Clearaudio Concept®(高貴卻不貴)的黑膠唱盤簡單性是它的魅力. Clearaudio Concept®(高貴卻不貴)的黑膠唱盤,What hi-fi 2010年最佳唱盤.高傳真視聽雜誌372期有詳細介紹.唱盤組合包括唱盤、唱頭、唱臂與唱頭放大，特賣99,000元。賣完了就不再「組合優惠」！Clearaudio Concept LP唱盤精選組合配備: *Concept唱盤:附合材料的機座331/3rpm,45rpm.78rpm均可使用,皮帶驅動及水平調整 *Concept磁浮唱臂 *Concept MC唱頭 *Concept clamp唱片鎮 *Basic Plus唱頭放大器:左右聲道分離,電源獨立,自動阻抗匹配

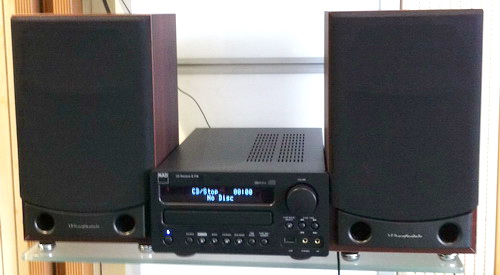

這組C715音響組合，集結了您最實用的音樂來源，放置在一個精緻的箱子裡，它配備高靈敏度的FM/AM調諧器和全功能的CD播放機，而且還加入多組類比和數位的連結系統，在前面板選擇及後面板連接端子。  面板上的USB接孔，可以讓您C715轉換音樂資料(CD音軌或是DAB收音機/只限有提供DAB服務的地區)，或其他有配備UAB接孔的儲存設備或是數位音樂播放機。這些USB週邊亦可做為C715的音源，播放音樂。例如：電腦、MP3、USB隨身碟….都可以連接到C715。      ‧ 2 X 20瓦 / 4-8歐姆 ‧ AM/FM 調諧器，可預置AM/FM 各30台 ‧ 可播出CD，CD-R/RW (8mm 和12mm 兩種規格) ‧ CD重複播放模式(單曲/全部/A-B定點重複) ‧ USB數位錄音/播放功能，用於記憶卡或MP3多媒體播放器。 ‧ 可選擇MP3或是WMA的格式錄音或是播放。 ‧ 3組類比立體聲輸入。 ‧ 1組類比輸出，將提供錄音訊號給磁帶錄音機。

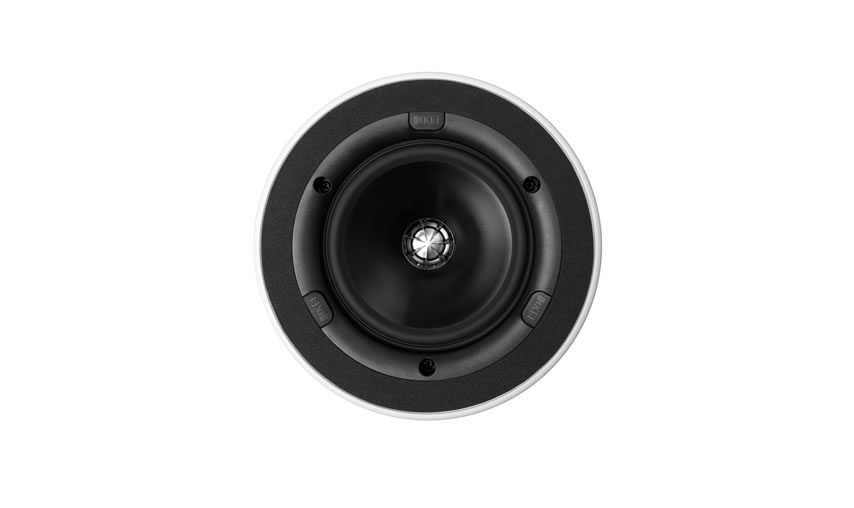

Ci130QR Uni-Q. KEF’s patented ’sit anywhere’ Uni-Q driver array places the tweeter in the acoustic centre of the bass/midrange cone (woofer). This allows both woofer and tweeter to act as a single, focused source of sound that is dispersed widely and evenly throughout the room.The practical benefit is that great sound can be experienced from anywhere in the listening environment removing the ‘sweet spot’ effect. Tangerine Waveguide The ‘tangerine’ waveguide has exceptionally wide dispersion characteristics, and provides excellent driver protection. Ultra Thin Bezel KEF’s search for the definitive discreet Ci speaker has culminated in the new Ultra Thin Bezel designs, offering the slimmest possible visible rim around the speaker. Forward Woofer Mounting Forward woofer mounting is another KEF technology that eliminates diffraction and ensures we create speakers that perform brilliantly regardless of placement. Computer Optimised Trim Ring The new, computer optimised trim ring offers stunning midrange clarity and a more open and natural sound across a wider area. Special Grille Treatments Seven of the Ci Round speakers now feature a powder-coated grille with a proprietary plasticised additive, delivering corrosion resistance that’s ideal for humid conditions. Features • UTB™ 超薄凹槽 • 130mm (5.25in.) Uni-Q 同軸點音源單體 • 19mm (0.75in.) 鋁製球型高音與瓣形波導管 •鍍金彈簧式接線端子 Model Ci130QR Nominal impedance 8Ohm Sensitivity (2.83V @ 1m) 87dB Frequency response +/-6dB open-backed 45Hz - 34kHz Crossover frequency 3.8kHz Drive units LF: 130mm (5.25in.) MF: - HF: 19mm (0.75in.) Recommended amplifier power 10-100W Product external dimensions Diameter Ø: 193.4mm (7.61in.)  Depth: 83mm (3.28in.) Cut-out dimension Diameter: 158mm (6.22in.) Mounting depth from surface Product only: 77.8mm (3.06in.) Optional rough in frame RIF130R

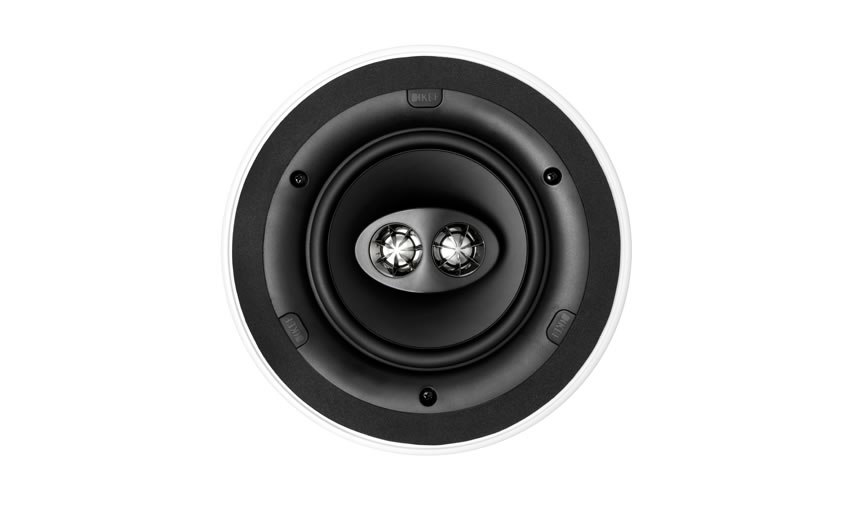

Ci160CRds Hearing Double The KEF Ci Series Ci160CRds is a high-fidelity flush-mount speaker that recreates stereo, and is ideal for locations where there is only room for one speaker. Thanks to KEF’s simple and ingenious screw down clamping system – with moisture-resistant fixings – you can place these speakers in environments such as bathrooms or under eaves. Tangerine Waveguide The ‘tangerine’ waveguide has exceptionally wide dispersion characteristics, and provides excellent driver protection. Tweeter Island Delivering a cleaner, purer sound to the maximum number of listeners, the tweeter island reduces diffraction and enhances off-axis, high frequency response. Ultra Thin Bezel KEF’s search for the definitive discreet Ci speaker has culminated in the new Ultra Thin Bezel designs, offering the slimmest possible visible rim around the speaker. Forward Woofer Mounting Forward woofer mounting is another KEF technology that eliminates diffraction and ensures we create speakers that perform brilliantly regardless of placement. Computer Optimised Trim Ring The new, computer optimised trim ring offers stunning midrange clarity and a more open and natural sound across a wider area. Special Grille Treatments Seven of the Ci Round speakers now feature a powder-coated grille with a proprietary plasticised additive, delivering corrosion resistance that’s ideal for humid conditions. Features • UTB™ 超薄凹槽 • 非對稱高音單體平台，實現寬廣的線性響 • Dual 19mm (0.75in.) 鋁製球型高音與瓣形波導管 • Dual voice coil 160mm (6.5in.) 響應延長低音單體 Model Ci160CRds Nominal impedance 8Ohm Sensitivity (2.83V @ 1m) 91dB Frequency response +/-6dB open-backed 50Hz - 20kHz Crossover frequency 3.2kHz Drive units LF: Dual voice coil 160mm  MF: - HF: 2 x 19mm (0.75in.)  Recommended amplifier power 10-80W Product external dimensions Diameter Ø: 234.6mm (9.24in.) Depth: 93mm (3.66in.)  Cut-out dimension Diameter Ø: 196mm (7.75in.) Mounting depth from surface Product only: 86mm (3.36in.) Optional rough in frame RIF160R

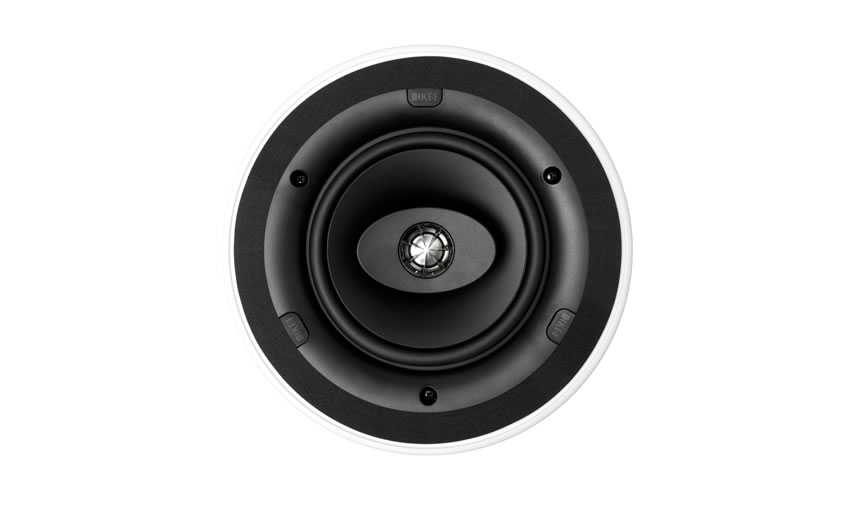

Ci160CR Tangerine Waveguide The ‘tangerine’ waveguide has exceptionally wide dispersion characteristics, and provides excellent driver protection. Tweeter Island Delivering a cleaner, purer sound to the maximum number of listeners, the tweeter island reduces diffraction and enhances off-axis, high frequency response. Ultra Thin Bezel KEF’s search for the definitive discreet Ci speaker has culminated in the new Ultra Thin Bezel designs, offering the slimmest possible visible rim around the speaker. Forward Woofer Mounting Forward woofer mounting is another KEF technology that eliminates diffraction and ensures we create speakers that perform brilliantly regardless of placement. Computer Optimised Trim Ring The new, computer optimised trim ring offers stunning midrange clarity and a more open and natural sound across a wider area. Special Grille Treatments Seven of the Ci Round speakers now feature a powder-coated grille with a proprietary plasticised additive, delivering corrosion resistance that’s ideal for humid conditions. Features • UTB™ 超薄凹槽 • 非對稱高音單體平台，實現寬廣的線性響應 • 19mm (0.75in.) 鋁製球型高音與瓣形波導管 • 160mm (6.5in.) 響應延長低音單體 Model Ci160CR Nominal impedance 8Ohm Sensitivity (2.83V @ 1m) 89dB Frequency response +/-6dB open-backed 52Hz - 20kHz Crossover frequency 3.4kHz Drive units LF: 160mm (6.5in.) MF: - HF: 19mm (0.75in.) Recommended amplifier power 10-100W Product external dimensions Diameter Ø: 234.6mm (9.24in.) Depth: 93mm (3.66in.) Cut-out dimension Diameter Ø: 196mm (7.71in.) Mounting depth from surface Product only: 86mm (3.36in.) Optional rough in frame RIF160R

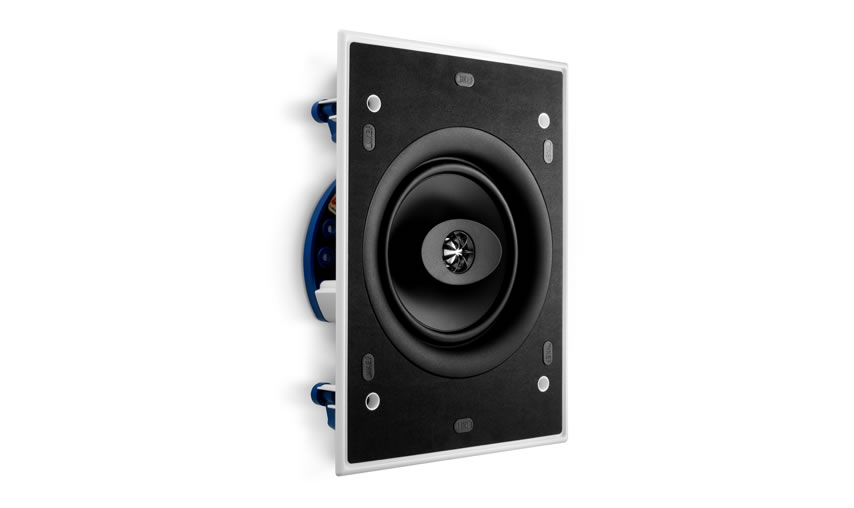

Ci160CL 超薄凹槽的主要特點： 超薄凹槽 源自KEF對打造隱藏式Ci揚聲器的追求，成就全新的超薄凹槽設計，在揚聲器周圍提供超薄細緻的邊框設計。 非對稱高音單體平台 高音單體平台能夠向最大範圍的聽眾傳遞更清晰、純粹的聲音，並減少繞射、增強擴散效果與高頻響應。   簡易快速的安裝步驟 安裝KEF Ci系列揚聲器是如此簡易且快速，一旦接上端子線並在牆壁或天花板上完成切孔，美妙聲音將在兩分鐘內完美呈現。     瓣形波導管 瓣形波導管具有卓越的擴散效果，並提供絕佳的單體保護。   前置式低音單體 前置式低音單體是KEF的專業技術之一，能夠消除繞射，並確保創造出無論任何擺位，揚聲器均能發揮其卓越性能。 電腦優化裝飾環 最新的電腦優化裝飾環能夠展現令人驚訝的清晰中音，而在更寬廣的區域內音質更為開放和自然。 特殊面板處理 Ci UTB 揚聲器的特色是具專利的粉末塗層面板處理，KEF採用具防潮功能且堅硬的材質，讓揚聲器俱備高度耐腐蝕性， 能適用在潮濕或是鹽份較高的環境下，像是浴室，泳池邊，海邊甚至是遊艇上。 完全磁性面網圈 完全磁性面網圈的特色可讓面網堅穩的浮貼在喇叭上。 新式鑲嵌支柱 新式的鑲嵌支柱能夠輕易上手使用且平均分散重力，同時能快速安裝不會破壞到牆面或天花板。 刺刀型PCB板 刺刀型PCB板可增添喇叭的堅硬性並保護分音器，而面網即使在不平滑的天花板上也可容易地被安裝。 型號 Ci160CL 額定阻抗 8Ω 靈敏度 (2.83V/1m) 89dB 頻率響應 (±6dB)開放式支撐 52Hz - 20kHz 分頻點 3.4kHz 單體配置 低音 高音 160mm (6.5in.) 19mm (0.75in.) 建議擴大機功率 10 - 100W 產品外部尺寸 (長*寬*深) 303 x 223 x 91 mm (11.93 x 8.78 x 3.58 in.) 圖樣尺寸 (長*寬) 274 x 194 mm (10.79 x 7.64 in.) 淨重 1.87kg (4.12lbs.) 表面安裝深度 84.5mm (3.33in.) 選配框架 RIF160L 選配後置音箱 RNC160L

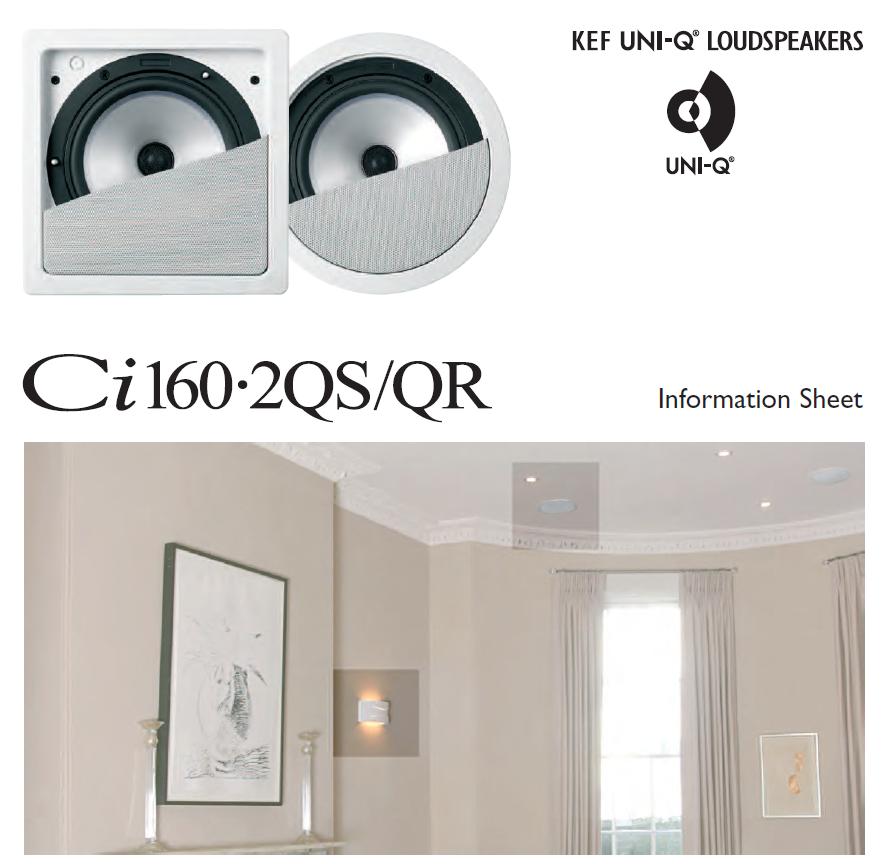

Ci160.2QS   The Ci Series Ci160.2QS is high-fidelity flush-mount loudspeaker utilising a fourth generation Uni-Q® driver array. The driver array is mounted into a moulded ABS baffle and along with KEF's simple and ingenious screw down clamping system - with moisture-resistant fixings - allows placement even in the harshest environments such as bathrooms or even under eaves. The bezel and stainless steel grille can be painted to specification or covered by fabric to suit the style of the room. The two-way Ci160.2QS combines 80W power handling and 87dB sensitivity, with a frequency response (±3dB) of 60Hz - 20kHz and a maximum output of 108dB. Features and Benefits Fourth generation Uni-Q driver array: Superb off-axis dispersion characteristics from the coincident source driver arrangement with greater flexibility of positioning that comes from such a wide sound stage. 160mm (6.5in.) bass/mid driver: Good bass extension from a flush-mount loudspeaker. 25mm (1in.) soft dome ferrofluid cooled tweeter: Excellent power handling and smooth response. Stainless steel bezel and grille: Can be painted to specification or covered by fabric to suit the style of the room. Applications The Ci Series Ci160.2QS is best suited for high quality music and speech reinforcement applications requiring hi-fi performance such as: • Multi Room systems • Home Theatre systems • Lounges, Bars, Boutiques • Boardrooms & Offices • Airports, Convention Centres, Hotels • Live Theatre/Concert Hall fill-in • Houses of Worship • Sports Arenas Architectural Specifications The Ci Series Ci160.2QS shall consist of: 1 x Uni-Q® driver array - 160mm (6.5in.) polypropylene cone bass/mid unit with a coincident mounted 19mm (1in.) soft dome, ferrofluid cooled high-frequency unit. Performance of the Ci160.2QS shall meet or exceed the following criteria: frequency response 1 metre on-axis with swept sinewave shall be 60Hz to 20kHz ±3dB, sensitivity shall be at least 89dB for 2.83V@1m. The driver impedance and maximum power handling shall be 80W at 6 Ohms. The enclosure shall not exceed the following dimensions: (H x W x D) 220 x 220 x 89 mm 8.7 x 8.7 x 3.5 in. Model Ci160.2QS Nominal Impedance 8Ω Sensitivity (2.83V @ 1m) 89dB Frequency Response +/-6dB 2pi/open-backed 60 - 24kHz Frequency Response +/-6dB With back can/rear enclosure - Crossover Frequency 2.8kHz Drive Units (LF / MF / HF) 160mm / - / 19mm Recommended Amplifier Power 10-100W Features Uni-Q Array Product External Dimensions (Height / Width / Depth) 220mm (8.66in.) / 220mm (8.66in.) / 93mm (3.66in.) Cut-out Dimension (Height / Width) 196mm (7.72in.) / 196mm (7.72in.) Mounting Depth from Surface (Product only / With back can) 89mm (3.50in.) / - Installations Parameters SD (Piston area) 132.73cm2 Re (DC resistance) 6.20 Ohms BI (Transduction coefficient) 4.57Tm (Flux density x length of immersed wire) Fs (Free air resonsance frequency) 77.35Hz Mms (Moving mass including air load) 10.85g Mmd (Moving mass excluding air load) 9.98g Cms (Compliance) 0.39mm/N
