高效濾網 > 高效率及超高效濾網– 平板型 < HEPA / ULPA> AR302 高效率及超高效濾網– 平板型 < HEPA / ULPA> 　 High Efficiency Particulate Air Filter (HEPA/ULPA) – Mini Pleat Panel Type 【English】 The air flow, initial resistance and dust collection capacity of the Mini Pleat Series media w/55mm pack is much better than conventional HEPA filter which is made with corrugate aluminum separators and with a 150mm deep. For handling large air volume, the operation cost becomes a prime consideration in a typical clean room application. One of the most important is to evaluate the Pressure Drop of HEPA due to Pressure losses of HEPA will be consumed the most energy in any clean room. AIRREX Mini Pleat HEPA/ULPA Filter is designed for extending filter’s life span and decreasing the pressure drop. Mini Pleat series filter is suitable for clean room, workstations and benches FFU use. Features: ※No Corrugated Aluminum Separators ※High Efficiency and Low Pressure Drop ※Allow Great Amount of Media in Shallow Depth Efficiency: All HEPA filter efficiency is tested in accordance with US MIL-STD-282 (EU Standard) and EN1822. The series provide guarantee efficiency from 99.97%, 99.99% to 99.999% (EU12-EU14) or H10-H14 (per EN-1822 standard in MPPS Test) on 0.3 micrometer size particles HEPA filter; and 99.999% to 99.999999% or U15-U16 (per EN-1822 standard in MPPS Test) on 0.1 – 0.2 micrometer size particles ULPA filters.. Media: HEPA media is made from ultra fine glass fiber formed with high density papers. Use hot melting glue to replace traditional aluminum separators. Each pleat is spaced by hot-melt adhesive to allow air flow through the filter with minimum resistance. Inside of frame to be sealed by sealant to prevent filter media leakage. Frame: The filter media pack is permanently bonded with epoxy or PU to an anodized aluminum extruded frame or wood board frame. Aluminum extruded frame can increase strength and rigidity for corrosion resistance. 特色：平板型濾網提供多種的配置適用於無塵室、無塵工作站、無菌操作台及風車濾網組等嚴格的潔淨需求，迷你摺數系列的濾網過濾之風量、初壓損及集塵量效果較隔板型之HEPA濾網好很多，迷你摺數設計意在延長濾網使用壽命及降低壓損。因產業特性需求在耗材的選用上，本公司亦可提供低硼濾材，製造符合客戶需求之終端濾網。 效率：依歐規EN1822標準測試，即測試濾網之上風處與下風處粒子濃度，HEPA級效率從95~99.999%通過0.3um，ULPA級效率從99.999~99.999999%通過0.1~0.2um。 濾材：濾材由超細玻璃纖維經摺疊組裝入框架內，濾紙經由熱熔膠間隔，不會釋出化學性污染到無塵室，使空氣以最低的壓損通過濾網。 外框：外框內側四周以密封膠密封，防止濾材空隙及洩漏。鋁擠外框經陽極處理增加強硬度及耐久的防腐性。以PU膠密封於鋁擠型框架達到完全的氣密無洩漏。     High Efficiency Filter Performance Data -Mini Pleat Panel Type (HEPA/ULPA) 高效率及超高效率濾網性能表-平板型濾網

特點： TM-320 快速消毒器 衛署藥字第 0970336403 號 衛署醫器製字第  001706 號 桌上手提式，重量輕，移動方便 操作簡單，容易上手 消毒快速效果佳 安全經濟 無水溫度過高時自動停止加熱並斷電 適合醫療單位、各科診所、研究單位、牙科、美容業等使用 規格： 內桶尺寸：ψ23 cm × 38 cm 內桶容量：15 公升 外觀尺寸：56D × 32W × 46H cm 消毒溫度：121℃ 消毒壓力：1.2 kgs/㎝2 淨重：約16kg 材質：內桶、外箱、消毒盒皆為304不銹鋼 電力：AC 110V 1.0Kw、AC 220V 0.9Kw 附件：底墊、電源線、消毒盒(34D×17. 2W×13.5H cm) 主要裝置：壓力表、60分定時器、指示燈、排氣閥、安全閥、 操作完成及過熱時自動斷電、壓力控制器

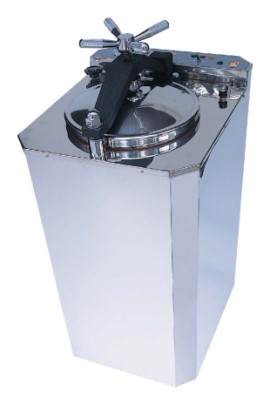

特點：TM-328 直立式快速消毒器 TM-328 直立式快速消毒器TM-329 直立式快速消毒器 衛署藥字第 0970336403 號 衛署醫器製字第  001706 號 為直立式消毒器，容量大，可消毒大型器皿 底板裝有滑輪，方便移動 壓力上升至消毒溫度才開始計時 有乾燥功能，當消毒完成可切換進行乾燥 操作簡單，容易上手 消毒快速效果佳 無水溫度過高時自動停止加熱並警報通知 安全經濟 適合醫療單位、各科診所、研究單位、牙科等使用 規格： 內桶尺寸：ψ30 cm × 70 cm 內桶容量：49 公升 外觀尺寸：56L × 45W × 114H cm 消毒溫度：121℃ 消毒壓力：1.2 kgs/㎝2 乾燥方式：電熱片乾燥 淨重：約64kg 材質：內桶、外箱、消毒網籃皆為304不銹鋼 電力：AC 110V、220V 2.3Kw 附件：底墊、墊勾、電源線、消毒網籃(ψ28 cm × 66 cm) ※另可選購雙層網籃(ψ28 cm × 33 cm) × 2 主要裝置：總開關、起動鈕、壓力錶、60分定時器、指示燈、消毒乾燥開關、排水閥、排氣閥、安全閥、操作完成及過熱時自動斷電附警報通知、溫度控制器、壓力控制器、排水管 特點：TM-329直立式快速消毒器 為直立式消毒器，容量大，可消毒大型器皿 底板裝有滑輪，方便移動 壓力上升至消毒溫度才開始計時 有乾燥功能，當消毒完成可切換進行乾燥 操作簡單，容易上手 消毒快速效果佳 無水溫度過高時自動停止加熱並警報通知 安全經濟 適合醫療單位、各科診所、研究單位、牙科等使用 規格： 內桶尺寸：ψ35 cm × 75 cm 內桶容量：72 公升 外觀尺寸：64L × 54W × 118H cm 消毒溫度：121℃ 消毒壓力：1.2 kgs/㎝2 乾燥方式：電熱片乾燥 淨重：約96kg 材質：內桶、外箱、消毒網籃皆為304不銹鋼 電力：AC 220V 2.7Kw 附件：底墊、墊勾、電源線、消毒網籃(ψ33 cm × 71 cm) ※另可選購雙層網籃(ψ33 cm × 35 cm) × 2 主要裝置：總開關、起動鈕、壓力錶、60分定時器、指示燈、消毒乾燥開關、排水閥、排氣閥、安全閥、操作完成及過熱時自動斷電附警報通知、溫度控制器、壓力控制器、排水管

超高磁性吸力，攪拌子旋轉力超強！ 內建 50...500℃ PID溫度控制模組 A/B/C 三種操作模式選擇，以 Pt1000 模式控溫或盤面控溫 具 550℃安全斷電迴路、盤面高溫警示 LCD 數字顯示幕，可精確設定加熱溫度 馬達反饋機能，確保攪拌轉速維持穩定 無接縫陶瓷玻璃盤面，高抗化學腐蝕性 標配 Pt1000 溫度探棒、支架 德國 IKA 牌

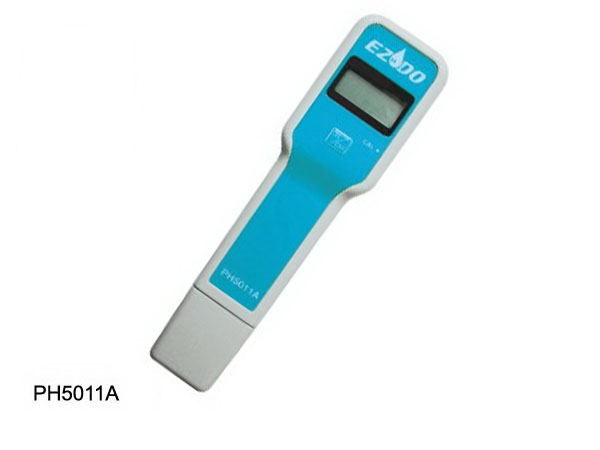

測試範圍 pH：0.00~14.00pH/±0.01 EC：0.1μS~19.99mS/cm TDS：0.1~999ppm/9.99ppt鹽度Salinity：0.1~999ppm/9.99ppt資料儲存：25筆 校正指示：3點校正 電源：CR2032×4顆 電量不足顯示：顯示BAT自動關機：停止操作10分鐘後 外觀尺寸：36×173×41mm重量 / 防水等級：110g‧IP57

測試範圍EC：0.1μS~19.99mS/cm    TDS：0.1~999ppm/9.99ppt    鹽度Salinity：0.1~999ppm/9.99ppt    防水等級：IP57    資料儲存：15筆    校正指示：3點校正    電源：CR2032×4顆    電量不足顯示：顯示BAT   自動關機：停止操作10分鐘後   外觀尺寸：36×173×41mm   重量：110g

產品規格     測試範圍:  0.01~10.00ppm      精確度:  ±0.01ppm±10%rdg     溫度範圍:  -5.0~90.0℃      防水等級:  IP67      資料儲存:  15筆       校正指示:  自動       電       池:  CR2032×4顆  電量不足示:  顯示BAT       自動關機:  停止操作10分鐘後       外觀尺寸:  36×173×41mm        重       量:  110g

12 mm epoxy body reference electrode. These electrodes are of sealed construction utilizing a ceramic junction and are designed for greater convenience where minimal maintenance is of prime importance. Part No. Membrane R (25℃) pH Range Temp. Range Length L Dia. D Internal Reference Element 5731401 Ceramic - - 0 to 100℃ 110 mm 12 mm Ag/AgCl Sealed 5731402 Ceramic - - 5 to 80℃ 110 mm 12 mm Calomel Sealed 5731403 Ceramic - - 0 to 110℃ 110 mm 12 mm Double Junction Sealed Ag/AgCl and KNO3

12 mm glass reference electrode for routine laboratory use. The 5771425 Double Junction is ideal for selective measurements. Bottom half may be filled by user with electrolyte compatible with the sample. Part No. Membrane R (25℃) pH Range Temp. Range Length L Dia. D Internal Reference Element 5771423 Ceramic - - 0 to 100℃ 110 mm 12 mm Ag/AgCl Refillable 5771424 Ceramic - - -5 to 80℃ 110 mm 12 mm Calomel Refillable 5771425 Ceramic - - 0 to 110℃ 110 mm 12 mm Double Junction Refillable

12 mm glass platinum combination electrode. Used for ORP (redox) determinations. The reference junction is an inert annular ceramic junction. Part No. Membrane R (25℃) pH Range Temp. Range Length L Dia. D Internal Reference Element 5779601 Platinum Band - - -5 to 110℃ 110 mm 12 mm Ag/AgCl Refillable 5779685 Platinum Band - - -5 to 110℃ 110 mm 12 mm Sealed Ag/AgCl 5779861 Platinum Band - - -5 to 110℃ 110 mm 12 mm Sealed Double Junction Ag/AgCl and KNO3

12 mm glass combination pH electrode with an epoxy sensor protector combines the accuracy of a glass combination electrode with the ruggedness of the epoxy body type. Part No. Membrane R (25℃) pH Range Temp. Range Length L Dia. D Internal Reference Element 5773597 GX-2 150MΩ 0-13 0 to 110℃ 130 mm 12 mm Ag/AgCl Refillable 5773598 GX-2 150MΩ 0-13 0 to 110℃ 130 mm 12 mm Sealed Ag/AgCl

Sleeve junction combination pH electrode provides the highest flow rate for use with difficult samples, low ionic strength solutions, colloidal suspensions, slurries, emulsions, and high purity water. Part No. Membrane R (25℃) pH Range Temp. Range Length L Dia. D Internal Reference Element 5773511 GX-2 100MΩ 0-13 0 to 110℃ 130 mm 12 mm Ag/AgCl Refillable 5773911 GX-2 100MΩ 0-13 -5 to 80℃ 130 mm 12 mm Calomel Refillable 5773711 GX-2 100MΩ 0-13 0 to 110℃ 130 mm 12 mm Double Junction Refillable

12 mm combination electrode for routine pH measurements. Provides good stability with its annular ceramic junction. The 5773905 is specially suitable for measurements in high purity water. The 5773522 is designed with an extra strength bulb for rough handling. Part No. Membrane R (25℃) pH Range Temp. Range Length L Dia. D Internal Reference Element 5773504 GX-2 50MΩ 0-13 0 to 100℃ 110 mm 12 mm Ag/AgCl Refillable 5773905 GX-2 50MΩ 0-13 -5 to 80℃ 110 mm 12 mm Calomel Refillable 5773792 GX-2 50MΩ 0-13 0 to 110℃ 110 mm 12 mm Sealed Double Junction 5773593 GX-2 50MΩ 0-13 0 to 110℃ 110 mm 12 mm Sealed Ag/AgCl 5773701 GX-2 50MΩ 0-13 0 to 110℃ 110 mm 12 mm Double Junction Refillable 5774519 GX-2 250MΩ 0-14 5 to 110℃ 110 mm 12 mm Sealed Ag/AgCl 5773522 GX-2 250MΩ 0-13 5 to 110℃ 140 mm 12 mm Ag/AgCl Refillable

Puncture tip combination pH electrode specially designed with a rugged, needle-shaped, pH sensitive membrane, suited for measurement in cheese, fruit, leather, meat, etc. Part No. Membrane R (25℃) pH Range Temp. Range Length L Dia. D Internal Reference Element 5673511 GX-2 150MΩ 0-13 0 to 100℃ 55 mm 8 mm Sealed Ag/AgCl 5673912 GX-2 150MΩ 0-13 -5 to 80℃ 55 mm 8 mm Sealed Calomel

12 mm soil pH electrode. This electrode is especially designed for soil pH measurements. Part No. Membrane R (25℃) pH Range Temp. Range Length L Dia. D Internal Reference Element 5773521 GX-2 150MΩ 0-13 0 to 100℃ 110 mm 12 mm Ag/AgCl Refillable

防水型pH/EC/TDS/鹽度/溫度5合1測試筆，可更換電極，自動3點校正及溫度顯示(可選擇℃/℉)可浮於水面，低電力顯示，自動關機功能，附pH/EC測頭，1uS/cm~19.99mS/cm，0.01pH，0~1300ppm(TDS)、0~1000ppm(鹽度)。

防水型IP57酸鹼度 /氧化還原/ 溫度3合1測試筆，可更換電極，自動3點單鍵校正及溫度補償，溫度顯示(可選擇℃/℉)，自動關機功能，低電力顯示，並可浮於水面，精度±0.01(pH-2-16)。(ORP測試範圍:  ±999 mV選購配件

防水型酸鹼/溫度測試筆，可更換電極，3點校正自動溫補，℃/℉顯示自動關機，低電力顯示，15組記憶，可漂浮，平面多功能電極肉類、皮革、麵糰、乳酪、紙張、黏稠、皮膚、微量，精度0.01pH。

pH測試筆、0.01pH可伸縮電極12mm直徑樣品量少、大型字幕顯示、穩定性高反應快、兩點校正、自動溫度補償、9V電池使用簡單。
