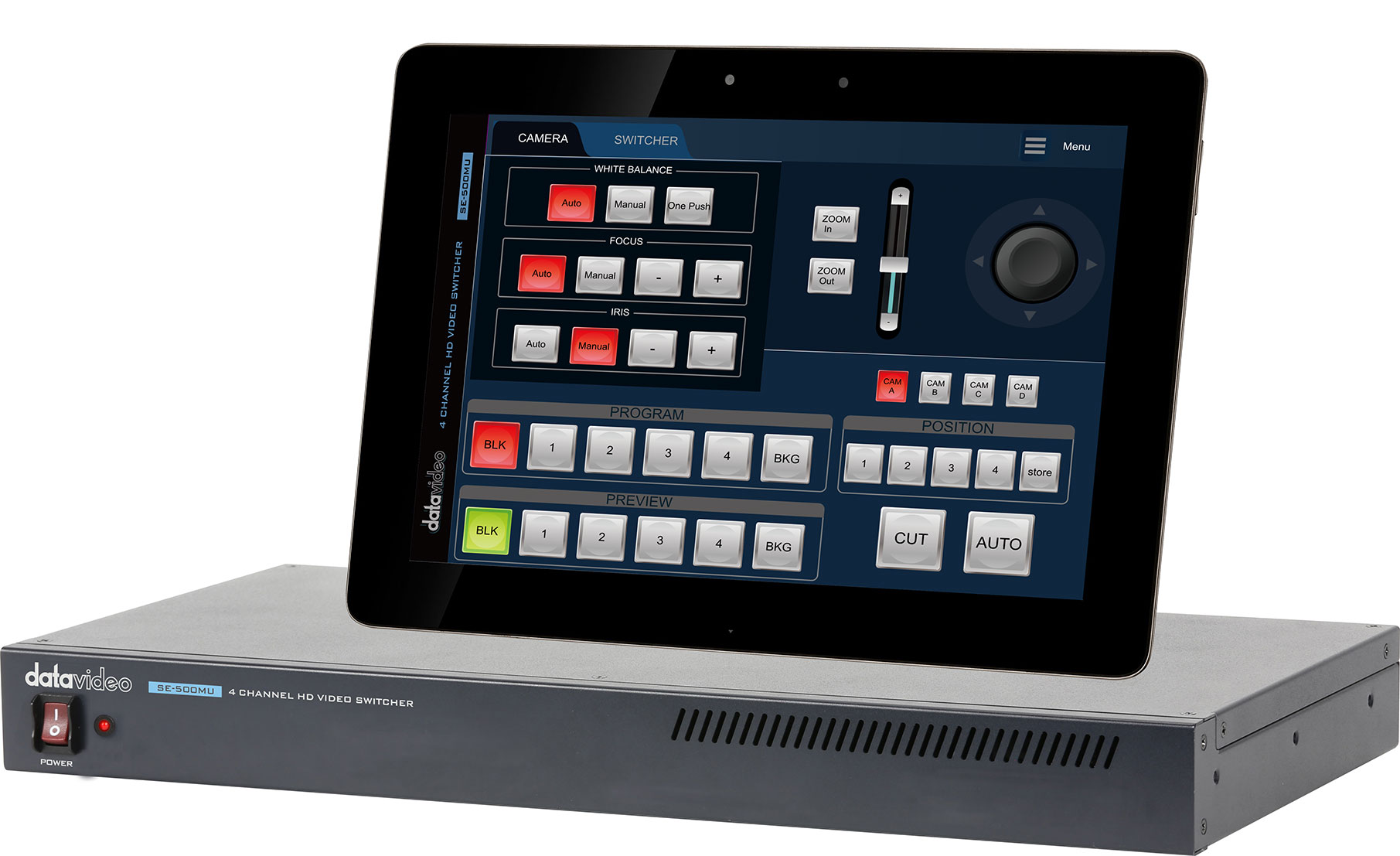

SE-500MU 產品介紹 SE-500MU是當前最實惠的1080p切換器之一，透過平板電腦上的免費APP應用程式進行控制，支援Apple iOS 及Window 系統，應用程式免費下載。 SE-500MU 的App同時具備導播機模式和攝影機控制器模式，在攝影機控制模式下，可透過App 操控四組PTZ 雲台攝影機。SE-500MU提供4路HDMI輸入、1路輸出以及4路預覽。它支援高達Full HD 1080p的影片解析度，並且可以執行cut、mix、wipe 、淡出至黑畫面、PIP子母畫面、分割畫面和Luma Key。 【註】平板電腦並不包含於本產品。 特點 ● 4路 1080p 3G HDMI輸入 ● 可控制4台 PTZ 雲台攝影機 ● 內置Video Scaler ● 透過免費APP遙控：適用於Windows、Mac OS、iOS和Android ● IP或RS-232控制 ● 支援PGM輸出分割畫面─可用於在線培訓的企業應用 ● 專為系統集成商，個人操作使用，企業、會議、醫療等AV市場設計   產品影片 【How-To 教學影片】 SE-500MU HD 4通道導播機功能簡介 【官方版】SE-500MU HD 4通道導播機五大亮點 【360˚產品影片】SE-500MU HD 4通道導播機   Model Name SE-500MU Product Name 4 Channel HD Video Switcher Video Standard Full HD & SD Video Format 1080p 50/59.94/60Hz1080i 50/59.94/60Hz720p 50/59.94/60Hz576i 50Hz480i 59.94Hz Video Processing HDMI: YUV 4:4:4 10 bit, RGB: 4:4:4 Input Routable / Crosspoint N/A Video Input 4x HDMI Mix HD & SD source Yes Computer Graphic Interface 4 via HDMI Video output 2 x HDMI (1 is MV, 1 is PGM) Down-converted output Yes Built-in Multi-viewmonitoring out HDMI Audio input 1 x Stereo RCA (L/R)2 x Mono MicrophoneDe-embedded Digital Audio (2 CH) Audio output 1 x Stereo RCA (L/R)Embedded Digital Audio (2 CH) Embedded audio support embedded 2-CH digital/analogue audio Audio Delay Calibration N/A A+V switching Yes Chromakey N/A Title Creator N/A USK Lumakey DSK N/A Picture in Picture 1 Logo Insertion N/A Still Store N/A Effects FTB, Cut, Wipe with border Transition Preview N/A Sync / Reference In/Out Built-in Genlock (internal) Tally Output 1x D-sub 15pin, dual color PC Remote Control N/A Built-in Audio Mixer N/A Special Features Support Apple iOS, Apple Mac, Android ControlBuilt-in video scaler for mixed resolution inputs Chassis 1 RU Rackmount Power DC 12V 20W Accessory CB-60/61/62 (30/50/100m)

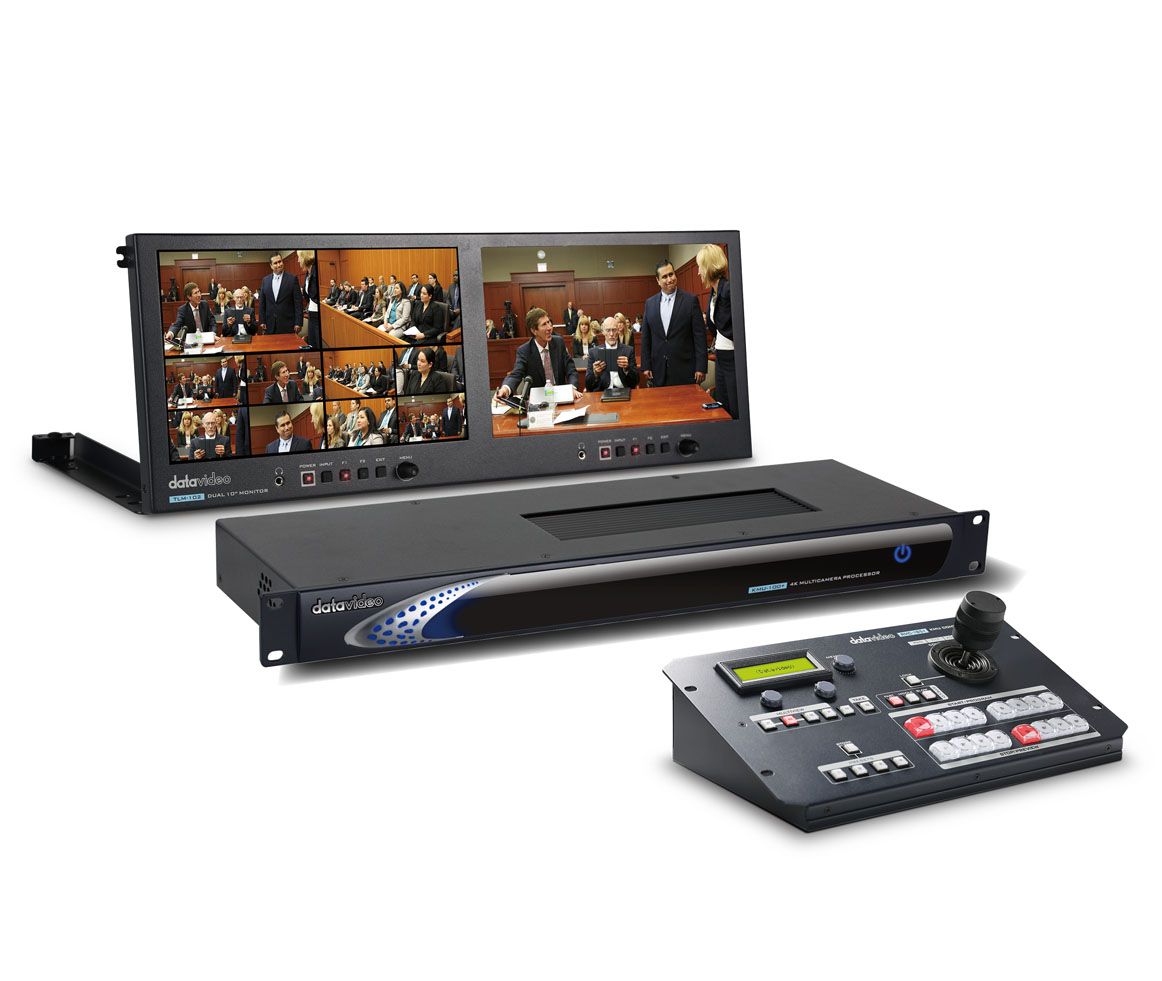

KMU-100 產品介紹 單台攝影機可以做到多機位EFP作業嗎? 就目前各大廠商的設備來說，是不可能辦到的應用，因為所謂EFP多機作業的概念下，最基本就是要2機攝影機的搭配下，才能夠讓導播設備發揮切換功能，做到現場直播作業。 但是，如果能一台攝影機就可在攝影影像中，任意截取需要的局部影像，單獨輸出連接導播設備使用，那一台攝影機與一台導播機，不就可以完成一場多機作業的EFP工作。   創新的現場導播方式，就在Datavideo KMU-100 4K 影像截取處理器，可以輕鬆的為大家在人力、設備的運用上，帶領大家走入另一創新世界的EFP應用。   KMU-100 4K 影像截取處理器最大的優勢功能，就是可將4K大影像畫面中，任意選取需要的局部影像，再以3G-SDI影像單獨輸出，一組4K大影像畫面中，KMU-100最多可抓取4路3G-SDI影像使用，也就是一場EFP多機作業上，您只要一台4K攝影機與一台導播機，KMU-100就可以幫你做到4機位的現場導播。   更重要的是KMU-100可接受2路4K影像輸入，相對就可以截取出8路3G-SDI影像輸出，所以只要2台攝影機也可做到大型活動、運動會的現場轉播作業。   同時KMU-100首次在2016年NAB及Infocomm新產品發表時，榮獲六項殊榮： ● Streaming Media 的 NAB2016最佳產品獎 ● BCPVA 的 影像創新獎 ● BeTerrific 的 NAB2016最優秀產品獎 ● IABM Game Changer獎入圍 ● TV Technology 2016 Best of Show Award ● AV Technology 2016 Best of Show Winner   特點 ● 一台4K攝影機與一台導播機，就可做到4機位EFP多機作業導播 ● 任意選擇4K影像中局部影像單獨輸出 ● 相容4K影像3840 x 2160解析度 ● 2路4K SDI影像輸入，可截取8路3G-SDI影像輸出 ● 4K-SDI影像可設定為2路4K-HDMI訊號輸入，也可設定一路Display訊號輸入 ● 具備兩組HDMI四分割影像輸出監看 ● 截取的局部影像可選擇影像之縮小或放大 ● 搖桿移動方式，選擇截取的影像位置 ● 具備外部Genlock訊號輸入與迴路輸出 -------------------------------------------------------------------------------------------------------------------------------------------------------------- 產品影片 【官方版】KMU-100 4K影像擷取處理器升級版 KMU-100 4K影像擷取處理器產品影片 KMU-100 4K影像擷取處理器與RMC-185控制器搭配 KMU-100 4K影像擷取處理器360˚影片 Model Name KMU-100 Product Name 4K Multicamera Processor Video Input 2x SDI Input:12Gb/s or 3Gb/s SD/HD/4K.Supports single link 4:2:26x SDI Input:3Gb/s SD/HD/4K.Supports single link, dual link, and quad link 4:2:22x HDMI Input:Supports Ultra HD 4K 60p in 4:2:0/4:2:2 Supported Video InputResolution 3840x2160p 23.98/24/25/29.97/30/50/59.94/60.1080p 23.98/24/25/29.97/301080i 50/59.94/601080PsF 23.98/24/25/29.97/30720p 50/59.94/60 Video Output 2x SDI Output:12Gb/s or 3Gb/s SD/HD/4K.Supports single link 4:2:26x SDI Output:3Gb/s SD/HD/4K.Supports single link, dual link, and quad link 4:2:2 Support Video OutputResolution 1080p 25/29.97/30/50/59.94/601080i 50/59.94/60720p 50/59.94/60625/50i PAL, 525/59.94i NTSC Multiview Out 2x HDMI 1.4 Multiview Mode Preview, Motion, Quad Audio Input SDI: 16 Ch embedded in HD/4K. 8 Ch embedded in SDHDMI: 8 Ch embedded in SD, HD and Ultra HD 4K Audio Output SDI: 16 Ch embedded in HD/4K. 8 Ch embedded in SD.HDMI: 8 Ch embedded in SD, HD and Ultra HD 4K Audio Sampling Television standard sample rate of 48 kHz at 24-bit Reference Input Blackburst, Tri-level Control Interface Ethernet RJ45 for control, configuration and updatesRS-232 x1 input for controlling configurationRS-422 x1 input with external keyboard supportGPIO x1 Controller RMC-185/RMC-185+ Power Supply DC 12V 5A

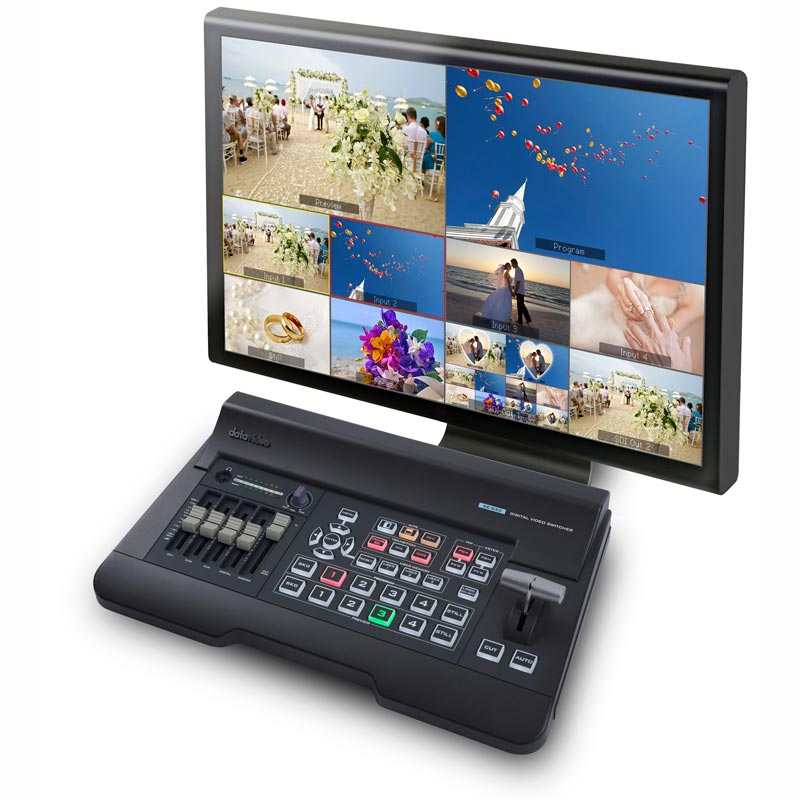

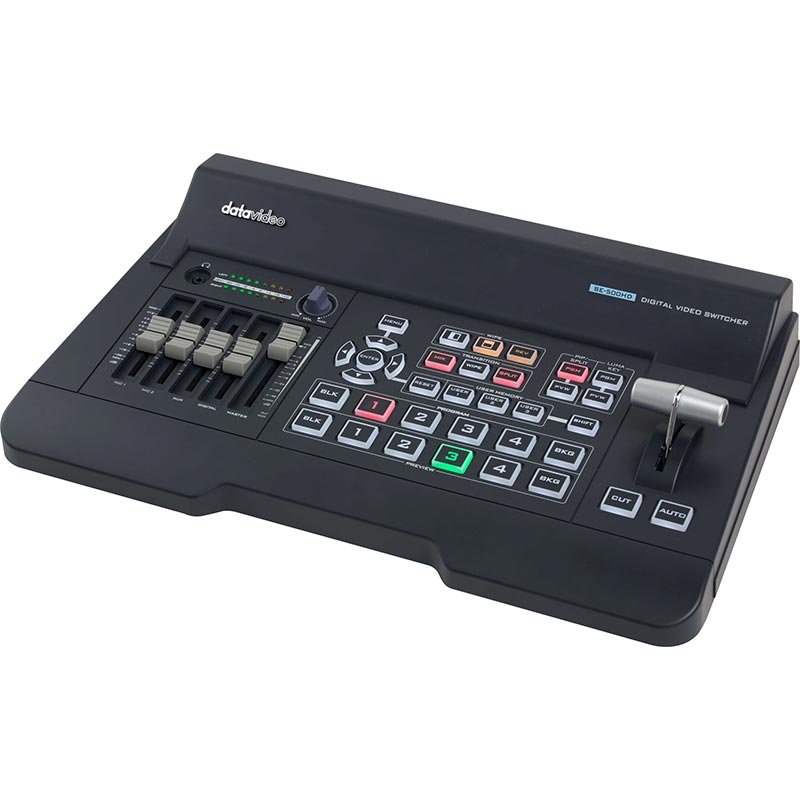

SE-500HD 產品介紹 SE-500HD是專為多種格式輸入的HD/SD現場活動導播機，對於會議室、網紅、小型製作公司來說都特別好用，沒受過專業訓練的一般使用者也可輕鬆理解、自由運用。SE-500HD的每路輸入都可調整縮放成同一種解析度，並且內建調音台以及支援4:4:4 10-bit 1080p的影像品質。SE-500HD設計便於攜帶精小，擁有專業設計但又非常容易使用。它適用於小型的會議室，企業的活動或是任何現場節目。擁有4路的HDMI輸入解析度轉換功能以及2路的輸出，讓使用者能夠自由混搭不同的訊號輸入，包含筆記型電腦、平板電腦、攝影機而不需要任何的影像轉換器搭配。 絕對不要因為SE-500HD的小巧尺寸及高CP值給騙了。它擁有多樣性的效果模式，包含Lumakey、畫中畫、左右畫面以及各種轉場效果提供給做簡報及現場活動的人使用。專為影音市場量身打造，SE-500HD還提供了內建的混音器可讓麥克風、周邊音效庫等輸入，簡易的使用方式，讓網紅美聲可直達影音核心，RCA音源輸出可供監聽，或是外接擴大機使用。精緻專用的影像切換按鍵，專業的功能，高CP值的產品，徹底實現多功能一體機的優勢，也讓您的每一次直播及現場導播更加高效完美。 特點 ● 4路HD/SD導播機 ● 支援Full HD 1080P輸入 ● 10-bit 處理 ● 影像輸入：4 x HDMI ● 影像輸出：2 x HDMI (1x多分割畫面＋一個PGM) ● 聲音輸入：1x Stereo RCA | 2x Microphone ● 聲音輸出：1x Stereo RCA | 1x Stereo headphone mini Jack ● 調音台：2x Mic | 1x Stereo RCA | 1x internal Digital embedded ● LED音量表 ● 支援Wipe, Mix & Cut ● 提供廣播級品質Lumakey去背效果 ● PIP畫中畫與分割畫面效果呈現 ● Tally訊號輸出 -------------------------------------------------------------------------------------------------------------------------------------------------------------- 產品影片 【官方版】人人夢寐以求的HDMI切換台 SE-500HD 4通道導播機360˚影片 NAB 2017 Datavideo 熱門新品搶先看 SE-500HD 1080p 10bit 影像導播機產品簡介 Model Name SE-500HD Product Name HD/SD 4-Channel Digital Video Switcher Video Standard Full HD & SD Video Format 1080p 50/59.94/60Hz1080i 50/59.94/60Hz720p 50/59.94/60Hz576i 50Hz480i 59.94Hz Video Processing HDMI: YUV 4:4:4 10 bit, RGB: 4:4:4 Input Routable / Crosspoint N/A Video Input 4x HDMI Mix HD & SD source Yes Computer Graphic Interface 4 via HDMI Video output 2x HDMI (1 is MV, 1 is PGM) Down-converted output Yes Built-in Multi-viewmonitoring out HDMI Audio input 1x Stereo RCA (L/R)2x Mono MicrophoneDe-embedded Digital Audio (2 CH) Audio output 1x Stereo RCA (L/R)1x Stereo headphone (Mini Jack with volume control)Embedded Digital Audio (2 CH) Embedded audio support embedded 2-CH digital/analogue audio Audio Delay Calibration N/A A+V switching Yes Chromakey N/A Title Creator N/A USK Lumakey DSK N/A Picture in Picture 1 Logo Insertion N/A Still Store N/A Effects FTB, Cut, Wipe with border Transition Preview N/A Sync / Reference In/Out Built-in Genlock (internal) Tally Output 1x D-sub 15pin, dual color PC Remote Control N/A Built-in Audio Mixer Yes Special Features Built-in video scaler for mixed resolution inputs Chassis Unibody Power DC 12V 29W Accessory CB-60/61/62 (30/50/100m)

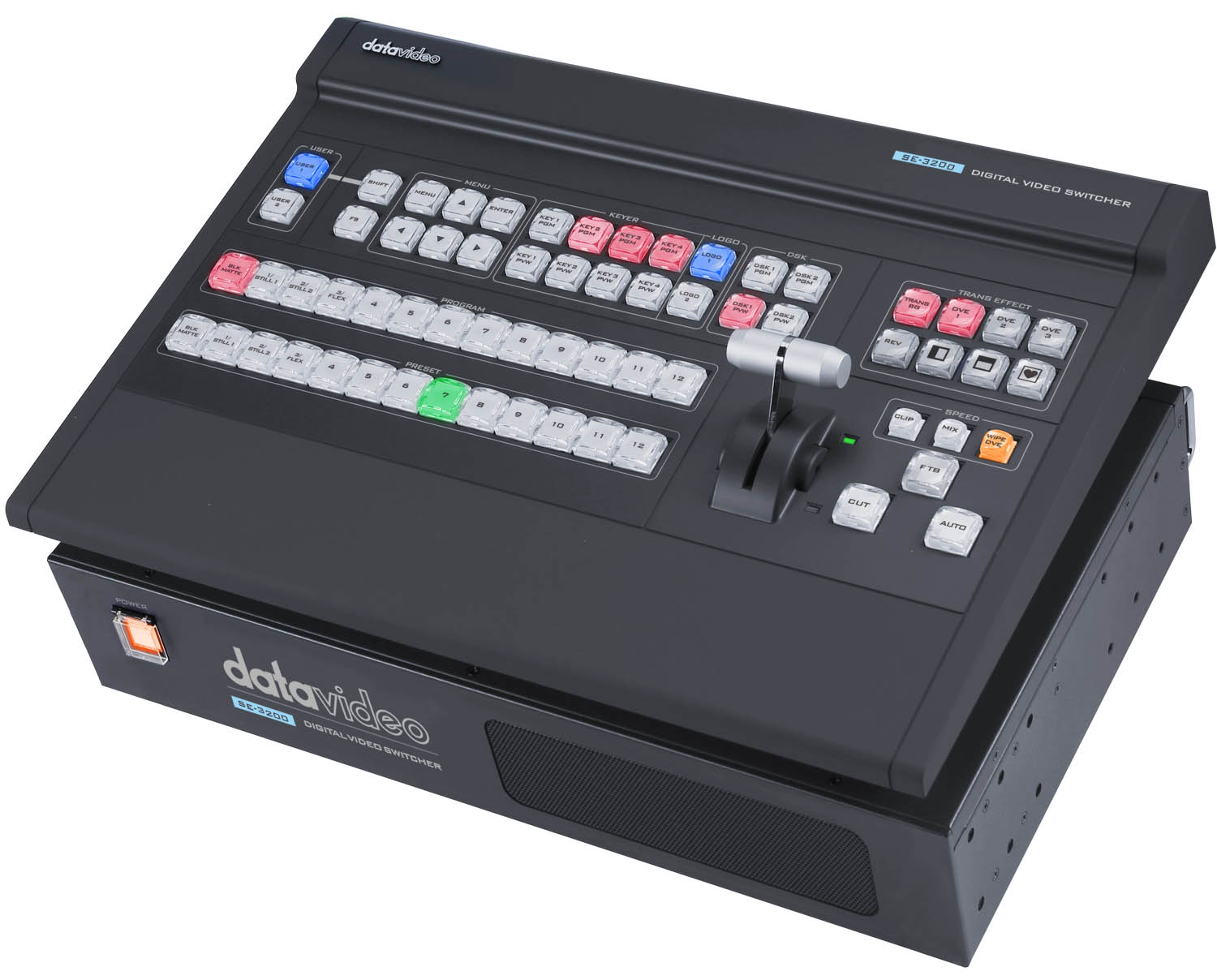

SE-3200 產品介紹 SE-3200是專業的12通道Full HD導播機，具備強大且容易使用的影像效果，例如Chromakey、Luma Key、DSK、PIP、WIPE特效、靜態圖片存儲及動態轉場特效等，多通道的輸入加上多樣的影像變換效果，豐富視覺畫面。同時內建字幕功能，可搭配Datavideo字幕軟體迅速製作廣電級字幕效果。 SE-3200的箱型設計可讓您將2U高度主機安裝在標準19吋的機架，控制器則可放置在平面工作台或內建在導播車上，方便棚內作業或戶外切換使用。 特點 ● 12路影像輸入：8 路SDI + 4路HDMI ● 9路影像輸出：6路SDI + 3路HDMI ● 4組USK，可任選去背/Linear / Luma key /PIP畫中畫使用 ● 8組PIP畫中畫（包含4組Flex Source），可設置比例、位置和尺寸 ● 2組DSK，支持Linear及Luma key模式 ● 2組Logo顯示並能調整位置尺寸，也可做動態Logo使用 ● 支持Wipe、Mix、DVE、Cut轉景功能 ● 32組Wipe特效，包含圓形和心型等多種變化，並可調整邊框尺寸及柔和度 ● 支持動態轉場特效，適合運動、直播使用 ● 任一輸入皆可設定為圖片、攝影機或播放器的影像 ● 支援XPT (輸入訊號交叉設置) ● 4組XLR模擬音頻輸入，輸入影像可帶4音軌輸出 ● 2組XLR解嵌模擬音頻輸出 ● 雙色紅/綠Tally燈訊號傳輸 ● 支援Tri-Level and Black Burst sync reference ● 2組記憶鍵隨選隨用 ● 提供USB接口方便韌體更新 產品影片 【官方版】SE-3200 HD 12通道導播機的五大亮點 【360˚產品影片】SE-3200 HD 12通道導播機 Model Name SE-3200 Product Name HD 12-Channel Digital Video Switcher Video Standard Full HD Video Format 1080p 50/59.94/60Hz,1080i 50/59.94/60Hz,720p 50/59.94/60Hz, Video Processing SDI: 4:2:2HDMI: YUV 4:2:2, RGB: 4:4:4 Input Routable / Crosspoint All 12, repeatable Video Input 8x SDI, 4x HDMI Mix HD & SD Source N/A Computer Graphic Interface 4 via HDMI Video Output 6x SDI assignable: Multiview, PGM, PVW, PG + DSK,Clean PGM, Clean PVW, Input 1-123x HDMI assignable: Multiview, PGM, PVW, PG + DSK,Clean PGM, Clean PVW, Input 1-12 Down-converted output N/A Built-In Multi-ViewMonitoring Out HDMI Audio Input 4x Balanced XLR Audio Output 2x Balanced XLR Embedded Audio Support Embedded 4-CH Audio Output Audio Delay Calibration up to 16 Fields or 8 Frames per Channel A+V Switching Yes Chromakey 4 USK 4x USK support Chromakey & Linear/ Luma Key DSK 2x DSK support Lumakey & Linear key(Key / Fill) Picture in Picture 8 (4x PIP, 4x Flex Source) Logo Insertion 2 Still Store 500 Effects DVE, FTB, Cut, 32 Wipe with border Transition Preview Full Transitions Preview Sync / Reference In/Out Built-in GenlockSupport external sync with loop thru Tally Output 1x D-sub 25pin, Dual Color PC Remote Control Via Ethernet (free Window software) or RS-422 / RS-232 Built-in Audio Mixer N/A Special Features 4 User Memory PresetFree Virtual Set and Stinger Transition included Chassis 2 units, 2RU Rack-Mount Mainframe Power DC 12V 69W Accessory CB-60/61/62 (30/50/100m)

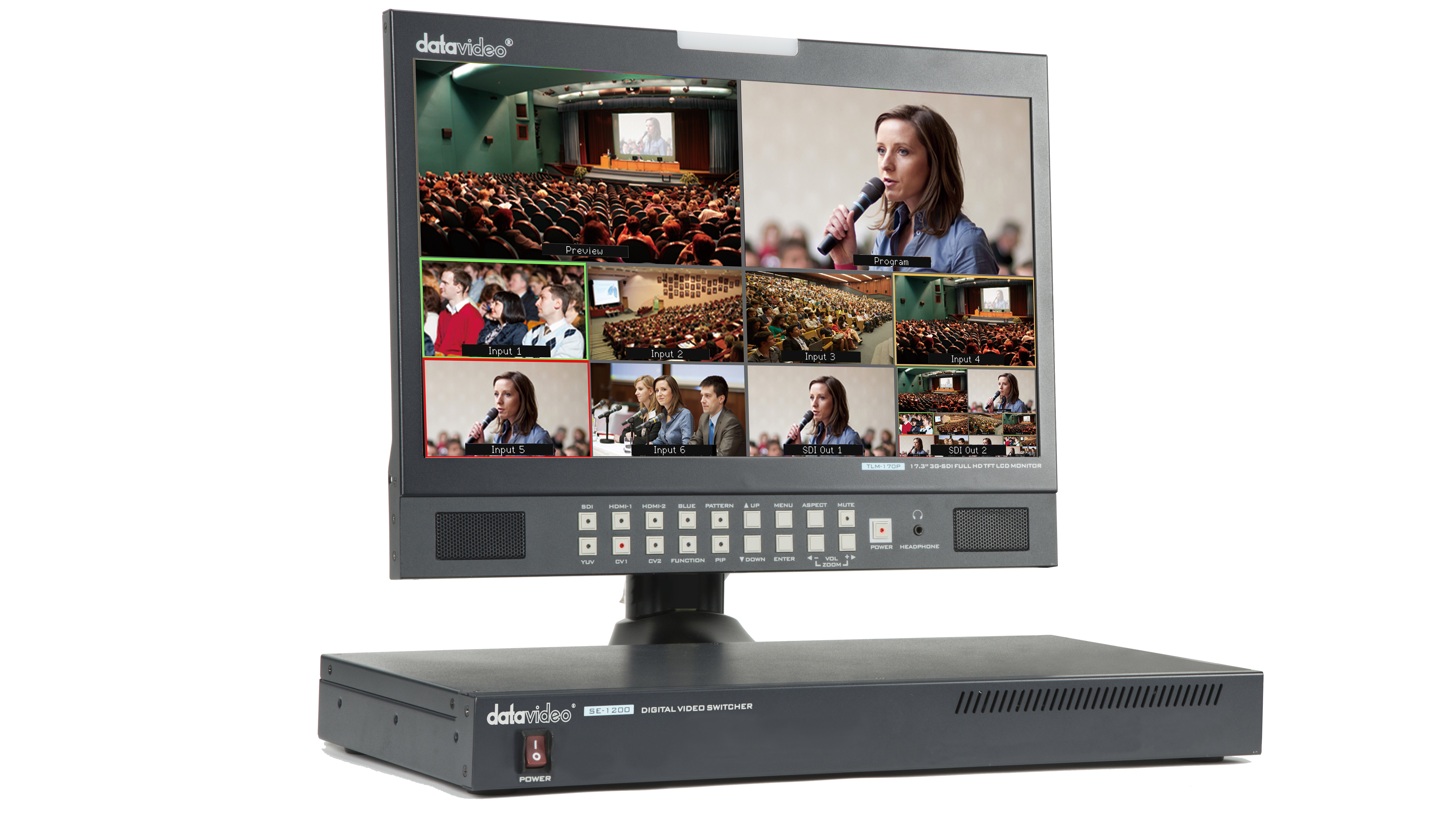

SE-1200MU 產品介紹 SE-1200MU導播機，主導教室內課程錄製的每一台鏡頭切換，是課程錄製主力核心設備。 SE-1200MU可利用桌上型或是筆記型電腦直接操作導播機，控制訊號由採用網路傳輸，可以長距離的控制SE- 1200MU，無須人員在教室現場控制影像影響老師授課。更重要的一項功能就是網路除了傳輸控制訊號外，還可以將教室現場的畫面以分割模式傳輸到控制這邊，所以系統設計上並無需再架構一條影像線路。 SE-1200MU具備四組SDI輸入與兩組HDMI輸入，符 合大、中、小的教室使用，老師授課的講義內容，可使用HDMI輸入至SE-1200MU內，在課程錄製影像中除了教室老師上課的口述外，又有講義內容可以輔助學習，搭配出最好的課程影像，對閱讀學生也是最佳的課程影像。有些預算較為寬裕的學校，教室內的虛擬棚運用也是一項重要教學輔助功能，所以SE-1200MU特別加入2組去背功能，同時可記憶24組圖像，老師準備好背景圖像作為背景，就是一場虛擬學習環境。 特點 ● 攝影系統 早期僅是利用web cam拍攝老師頭部講課模式，再配合 PowerPoint的課程資料繪製而成的課程錄製內容，比較單調不生動且閱讀率較差。 由於科技進步，課程錄製系統都以吸頂式攝影機架設在教室天花板上，直接拍攝老師課堂上授課，時而轉換為電腦課程資料 或以子母畫面呈現，內容較符合教室授課模式，閱讀者較喜歡。 ● 導、錄系統 單機攝影機僅是拍攝老師講台上授課影像，無法做到教室內與學生互動討論模式，所以漸漸以多機方式匯入導播系統， 因課程內容、師生互動狀態切換錄製，產生的課程內容就如置身在教室中，活潑、生動更容易吸收老師上課的內容。 ● 聲音系統 修改僅收錄老師上課的聲音，改變以影像位置收錄影像位置的聲音，讓影像有該位置的聲音搭配，才不會造成有影像無聲音 的現象，就如攝影機轉拍攝學生提問時，就會直接轉收錄學生 的聲音，營造教室內互動模式的課程內容。 ● 追蹤系統 之前幾乎採用紅外線追蹤拍攝，讓攝影機追蹤老師的授課 位置錄製，但紅外線追蹤有移動太快速，定位點會晃動的現 象，讓閱讀者看課程影像非常不舒服，甚至於會有暈眩的現象，所以必須以廣播拍攝模式，慢追蹤攝影技巧去追蹤老師， 甚至提問的學生，才能錄製好的影像課程，閱讀者才會容易觀看課程影像。 ● 播放系統 播放系統可分為網路線上直播與VOD後製播放，最好的方 式就是將課程直接匯入學校的播放系統內，可直播或者錄製後 的影像剪輯後再匯入系統內，提供學生後續調閱影像做課後複 習，也可分享給其他學校學生閱讀。 五項架構項目完成百年教學大計，幾乎也是市場上各系統 規劃商的主要方向，只是產品不同導致應用門道不同，最後課程內容效果、順暢與資源也會不一樣。 -------------------------------------------------------------------------------------------------------------------------------------------------------------- 產品影片 SE-1200MU HD 6通道導播機 / 技巧和竅門: CG字幕搭配TC-200 SE-1200MU HD 6通道導播機 /  技巧和竅門: 通過電腦控制篇 【How-To 教學影片】 如何匯入圖片到導播機中 【How-To 教學影片】 導播機如何做Stinger動畫轉場特效 Model Name SE-1200MU Product Name HD 6-Channel Digital Video Switcher Video Standard HD Video Format 1080i 50/59.94/60Hz720p 50/59.94/60Hz Video Processing SDI: 4:2:2HDMI: YUV 4:2:2 10 bit, RGB 4:4:4 Input Routable / Crosspoint All 6, repeatable Video Input 4x HD-SDI2x HDMI (RGB/YUV, 1080i/1080p/720p) Mix HD & SD source N/A Computer Graphic Interface 2 via HDMI Video output 2x HD-SDI & 2x HDMI assignable:PGM(w/DSK 1&2), PGM(w/DSK 1),PGM Clean, PVW(w/o DSK),multi-view, Input 1-6 Down-converted output N/A Built-in Multi-viewmonitoring out HDMI & Ethernet (MJPEG) Audio input 2x Balanced XLRDe-embedded Digital Audio (2 CH) Audio output Embedded digital audio (2 CH) Embedded audio support embedded 2-CH audio output from XLR inputor embedded audio input Audio Delay Calibration N/A A+V switching Yes Chromakey 2 Keyers Title Creator N/A USK 2x USK support Chromakey & Linear / Luma Key DSK 2x DSK support Lumakey & Linear key (Key / Fill) Picture in Picture 1 Logo Insertion N/A Still Store 500 Effects FTB, Cut, 32 Wipe with border Transition Preview Full transitions preview Sync / Reference In/Out Built-in Genlock (internal) Tally Output 1x D-sub 15pin, dual color PC Remote Control Via Ethernet (free Window software) or RS-232 Built-in Audio Mixer N/A Special Features Motion JPEG Multi-view streaming(120 memory preset, BGD Transition on/off option)Stinger transition Chassis 2 units, 1RU rack-mount mainframe Power DC 12V 19W Accessory CB-60/61/62 (30/50/100m)

SE-650 產品介紹 針對中小型活動及簡單的節目來說，只要具備雙機作業再加上1~2路的HDMI輸入，其實就可以輕鬆完成整體的作業，只是目前市場能夠專為該需求所設計的演播系統並不多，所以只能接受中、大型演播設備使用。 SE-650就是針對小型活動及HD影像格式所設計的小型導播機，除了具備四路影像輸入外，更重要是內建混音功能，所以只要一機即可解決影、音作業的需求。SE-650雖是小型設備卻也內建Chromakey功能，符合地方電視臺棚內錄製的需要，同時也是電視臺從模擬市場轉換為HD市場最好的設備。 特點 ● 4路影像訊號輸入：HD-SDI x 2 +HDMI x 2 ● 3路影像訊號輸出：HD-SDI x 1 +HDMI x 2 ● 虛擬棚去背功能，背景可使用內建背景圖片或外部HDMI輸入影像，輕鬆架置虛擬導播室 ● 具備混音功能，支援A+V ● 聲音輸入：RCA Stereo (L/R) + Microphone x 2 ● 聲音輸出：RCA Stereo (L/R) + Stereo headphone mini Jack x 1 ● DSK與Luma雙字幕系統功能，方便在不同場所下使用，如運動轉播螢幕上的商業宣傳、商業或教育電子佈告欄、KIOSK廣告畫面、結婚慶典特效畫面 ● 可儲存高畫質圖片，做為虛擬背景、開場圖片或結尾圖片使用 ● PIP子母畫面功能中的子畫面採用百分比率設定，最大可100%滿版輸出 ● 具備影像調度功能(XPT) ● 導播轉場特效包含Wipe、Mix與Cut ● 支援Tally輸出  ● 支援Logo插入 ● 支援多國語言 -------------------------------------------------------------------------------------------------------------------------------------------------------------- 產品影片 超好上手的高CP值導播機 SE-650 HD 4通道導播機 【360˚產品影片】SE-650 HD 4通道導播機 【How-To 教學影片】 如何在SE-650 HD導播機上設定虛擬色度去背 【How-To 教學影片】 如何使用SE-650導播機設定或添加LOGO商標 【How-To 教學影片】 3分鐘輕鬆上手SE-650 HD 4通道導播機 【How-To 教學影片】 如何設定SE-650導播機的PiP子母畫面 【How-To 教學影片】 導播機如何做Stinger動畫轉場特效 【How-To 教學影片】 如何匯入圖片到導播機中 Model Name SE-650 Product Name HD 4-Channel Digital Video Switcher Video Standard HD Video Format 1080i 50/59.94/60Hz720p 50/59.94/60Hz Video Processing SDI: 4:2:2HDMI: YUV 4:2:2 10 bit, RGB: 4:4:4 Input Routable / Crosspoint All 4, repeatable Video Input 2x HD-SDI2x HDMI Mix HD & SD Source N/A Computer Graphic Interface 2 via HDMI Video Output 2x HDMI (1 is MV, 1 is Assignable)1x HD-SDI (Assignable) Down-Converted Output N/A Built-in Multi-ViewMonitoring Out HDMI Audio Input 1x Stereo RCA (L/R)2x Mono MicrophoneDe-embedded Digital Audio (2 CH) Audio Output 1x Stereo RCA (L/R)1x Stereo Headphone (Mini Jack with volume control)Embedded Digital Audio (2 CH) Embedded Audio Support embedded 2-CH Digital / Analogue Audio Audio Delay Calibration N/A A+V Switching Yes Chromakey 2 Title Creator N/A USK 1x USK support Chroma Key & Linear/ Luma Key DSK N/A Picture in Picture 1 Logo Insertion 1 Still Store 500 Effects FTB, Cut, 32 Wipe with border Transition Preview Full Transitions Preview Sync / Reference In/Out Built-in Genlock (internal) Tally Output 1x D-sub 15pin, dual color PC Remote Control N/A Built-in Audio Mixer Yes Special Features Free Virtual Set and Stinger Transition included Chassis Unibody Power DC 12V 29W Accessory CB-60/61/62 (30/50/100m)

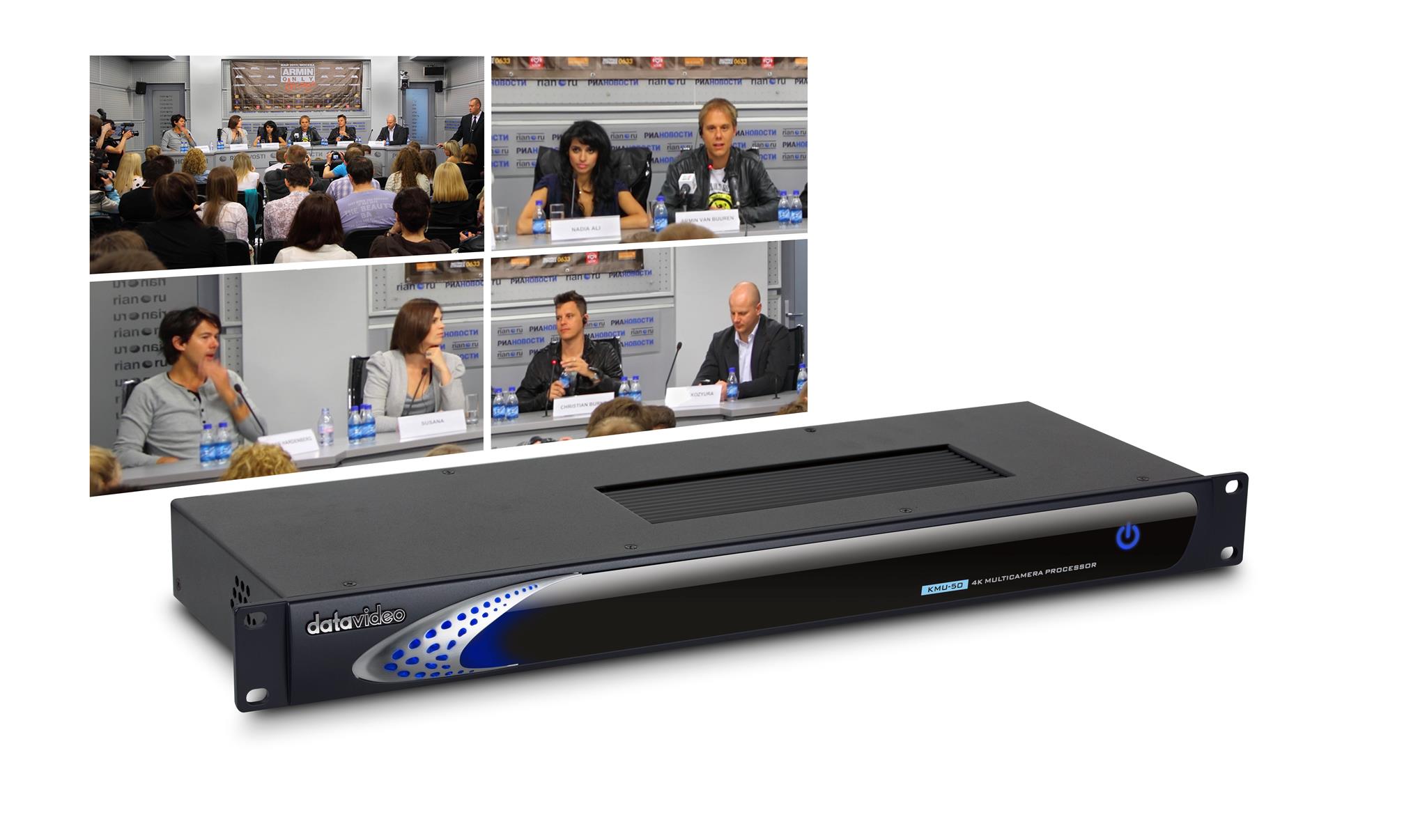

KMU-50 產品介紹 KMU-50是一款4K影像處理器，支援一路HDMI 2.0輸入，四路HDMI輸出。它為您提供高性價比的多機位拍攝現場活動解決方案— 利用一個4K攝影機輸入4K 50/60p影像，讓您擁有四個可供切換的1080p/60 HD畫面，高端解決方案卻只要經濟的設備預算即可達成。 KMU-50可透過Datavideo KMU控制器RMC-185、觸控式控制器RMC-500或是利用軟體通過RS-422進行控制。這是一種簡單、便捷且全新的拍攝現場影片的方式。此外，KMU-50可用於監控系統中，單個4K攝影機就可以爲您提供4個HD影像輸出。 Model Name KMU-50 Product Name 1-Channel 4K Multicamera Processor Video Input 1 x HDMI 2.0 Supported Video InputResolution 3840 x 2160p 50/59.94/60 (4:2:0 10bits)3840 x 2160p 25/29.97/30/50/59.94/60 (4:4:4 8bits)1080p 50/59.94/60 Video Output 4 x HDMI 1.4 Support Video OutputResolution 1080p 50/59.94/601080i 50/59.94/60720p 50/59.94/60 Multiview Out HDMI 1.4 x1 Multiview Mode Preview, Motion Audio Input HDMI embedded audio Audio Output HDMI embedded audio Audio Sampling 8CH PCM, LPCM 2CH Control Interface RS-422 for external controller Controller RMC-185/RMC-500 Power Supply DC 12V 2A

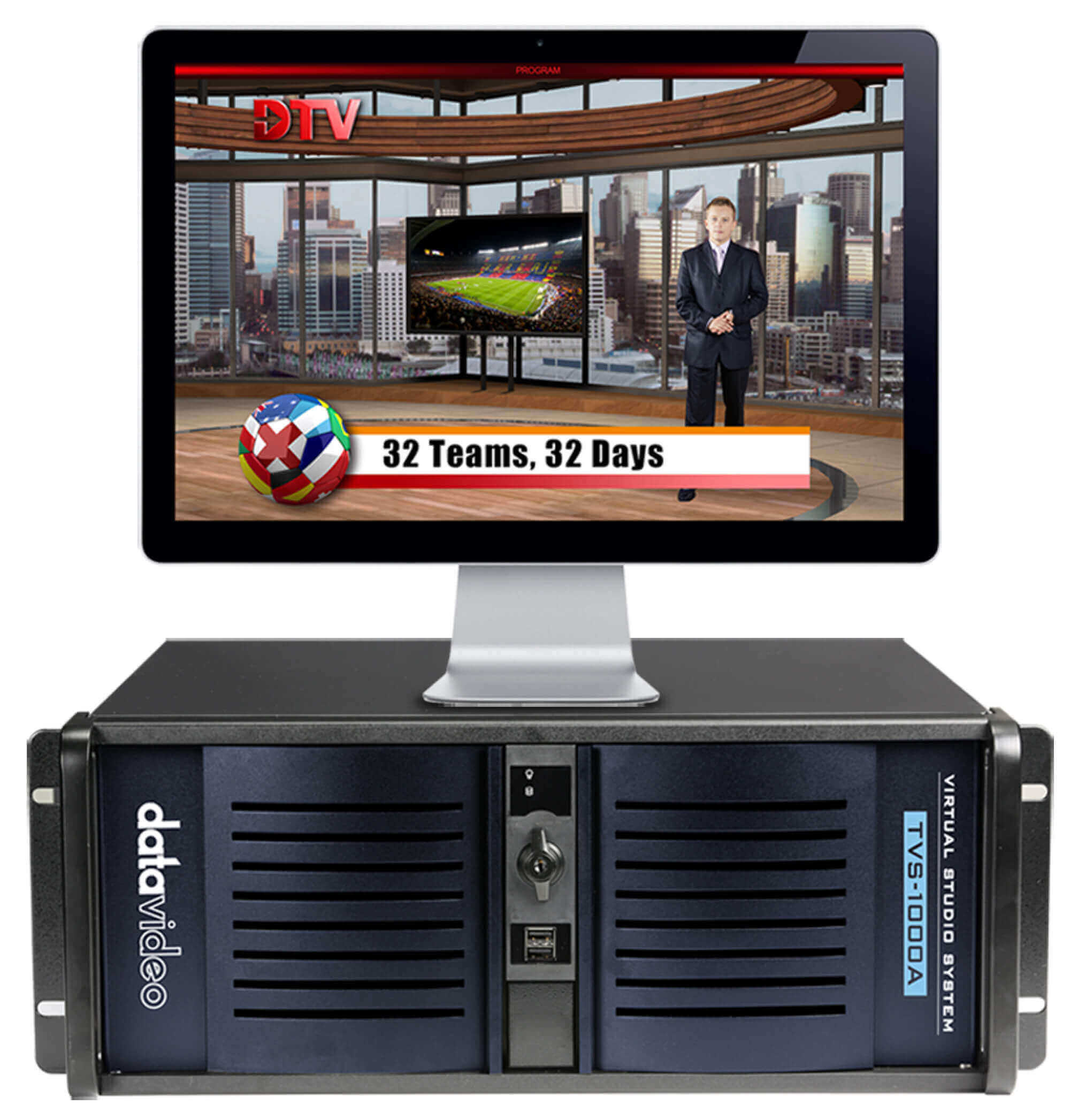

TVS-1000A <產品介紹> --------------------------------------------------------------------------------------------------------------------------------------------------------------  ◆ 1x TVS-1000A 虛擬棚導播系統  ◆ 1x 電源線  ◆ 1x 2.5吋硬碟收納盒 (附SATA to USB線)  ◆ 1x USB 滑鼠  ◆ 4x M3 x 4mm 螺絲  ◆ 1x RMC-220 攝影機控制器 (含 D-Sub 9Pin Cable + DC 12V 電源轉換器)  ◆ 2x 標籤  ◆ 1x 感謝卡 --------------------------------------------------------------------------------------------------------------------------------------------------------------

具有多種書籍、電影、作家介紹等等有助學生知識以及因應時事的線上資料庫

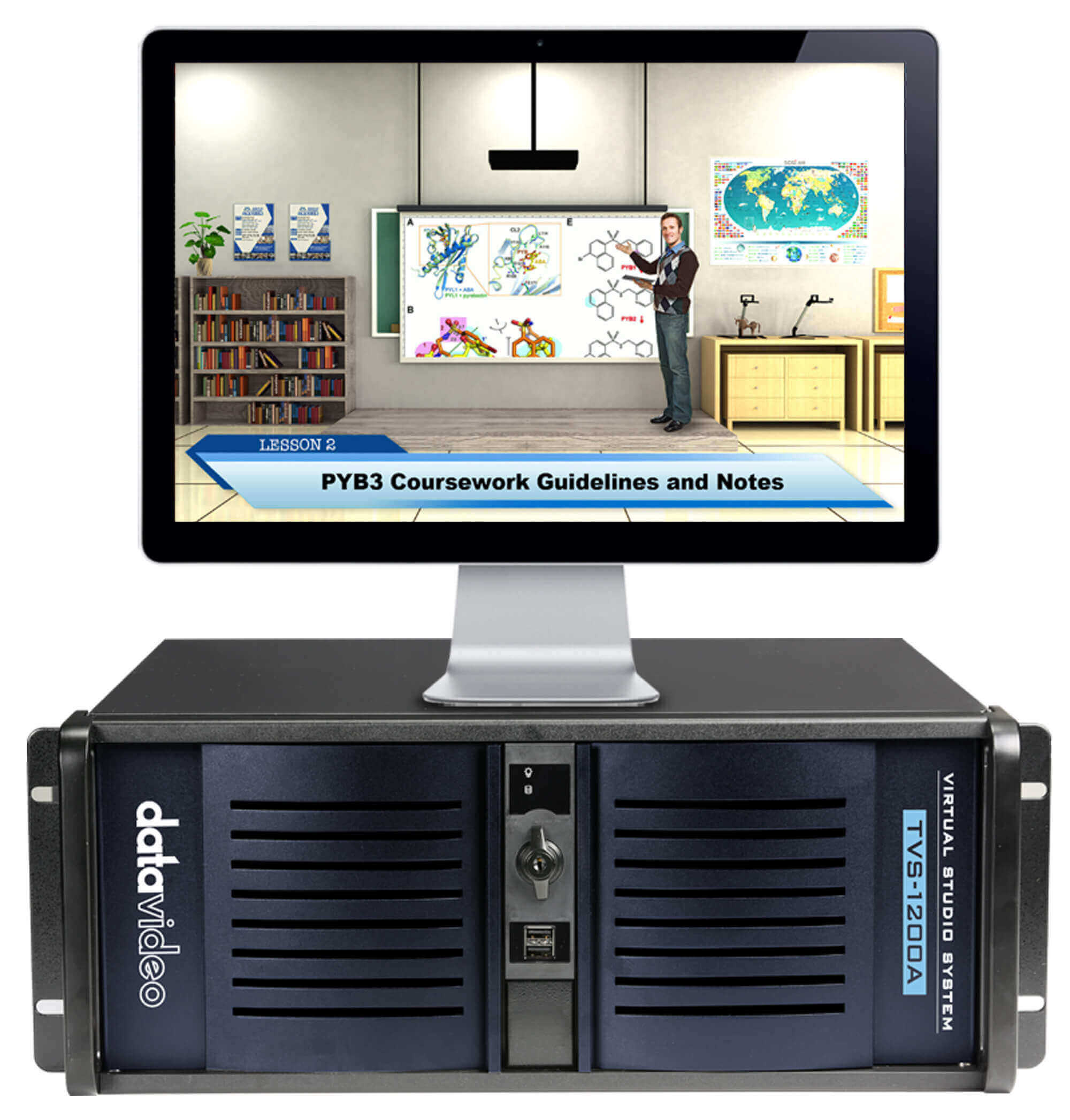

TVS-1200A <產品介紹> --------------------------------------------------------------------------------------------------------------------------------------------------------------  ◆ 1x TVS-1200A Main Unit  ◆ 1x Power AC Cord  ◆ 1x 2.5'' HDD Box (with SATA to USB cable)  ◆ 1x USB Mouse  ◆ 2x Labels  ◆ 1x TVS-1200 Thank You Card  ◆ 4x screws M3 x 4  ◆ 1x RMC-220 Unit(Include D-Sub 9 PIN Cable + DC 12V power adaptor)  ◆ 1x 802.11AC Antenna / or USB dongle --------------------------------------------------------------------------------------------------------------------------------------------------------------

軟體介紹 以功能面來說，等同於整合教室內現有設備的一套系統(例如顯像器、投影機、電腦、電子白板、平板電腦等)。只要將程式植入於平板電腦，開啟程式即啟動後鏡頭(主動式)，移動、對焦至內容物件，於欲講解註記之畫面輕觸(即同時執行畫面內容靜止、貼覆透明註記層、啟動註記筆功能)，即可直接於畫面書寫、註記、講解。   產品特性 。極少操作步驟（3個步驟） 。啟動時可辨識（細線底框） 。連動載具鏡頭（即按即標） 。 功能說明： 極少步驟：使用時只要點選軟體，進入系統做點選功能，三個步驟內即可進入到註記行為 。 鏡頭開啟：開啟系統時，軟體功能即可與鏡頭同步，將鏡頭做直接做開啟行為。 點選靜止：使用手指觸控正呈現攝影物品的螢幕，即可立即產生靜止畫面，並進行註記。 透明註記層：產生靜止的畫面會出現一個透明層，可提示老師軟體可進行註記 註記回復鍵：點選載具回復鍵，即可回收註記及回收透明註記板功能。 無筆介面：本系統註記前，不需點選筆盤，可直接於透明層出現時即標註。 回復功能：減少軟體本身的使用介面，需回復只要點選載具上頁功能即可清除內容，回復到初始狀態。

極少使用操作步驟的軟體，簡化教師摸索的時間，初次使用軟體時，只要自己做１～２次的啟動，軟體即呈現透明底框提示使用者可做立即標示，啟動若感想要調整筆跡粗細不適或顏色，亦可自定義筆畫，並存成筆筒模式，啟動選擇時即可再使用調整過後的粗細或顏色。 產品特性 。極少操作步驟（3個步驟） 。啟動時可辨識（細線底框） 。多層漂浮作業（同時多工） 。自定義粗細筆（筆筒邏輯）   功能說明： 極少步驟：含開啟三個步驟完成註記 多層次漂浮 ：多工邏輯 教學更方便 漂浮功能一：可漂浮於各類型檔案上層，漂浮透明註記板 漂浮功能二：課表、計算機 漂浮功能三：標註筆 透明註記板：透明全貼覆桌面，使用時不改變任何檔案及任何裝置功能 註記回復鍵：可回收註記及回收透明註記板功能 隱藏式筆筒：不佔畫面空間 內建七支可編輯註記筆+橡皮擦 多工作業：搭配其他應用程式同時開啟(例相簿、，相機、Line、影片等) 註記板相容度：開啟操作時,沒有檔案格式無不相容的狀況(例：Word、PPT、pdf、) 註記筆編輯: 透明度 255 階調整 ：螢光筆效果 RGB 255 階調色：調色盤效果 粗細 50 階調整

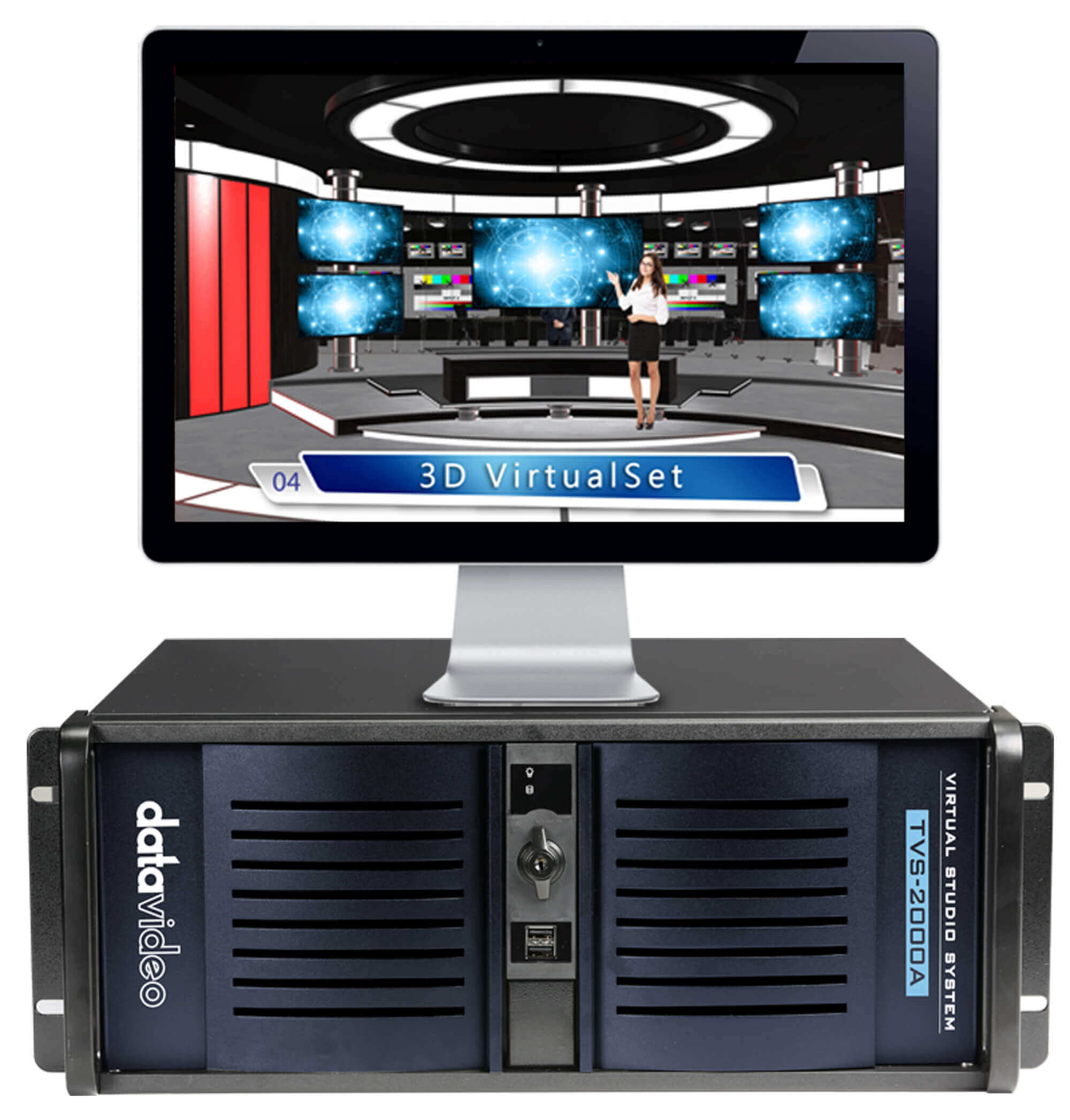

TVS-2000A <產品介紹> --------------------------------------------------------------------------------------------------------------------------------------------------------------  ◆ 1x TVS-2000A Main Unit  ◆ 1x Power AC Cord  ◆ 1x 2.5'' HDD Box (with SATA to USB cable)  ◆ 1x USB Mouse  ◆ 2x Labels  ◆ 4x screws M3  ◆ 1x RMC-280 Unit(Include D-Sub 9 PIN Cable + DC 12V power adaptor)  ◆ 1x 802.11AC Antenna / or USB dongle  ◆ 1x Thank You Card --------------------------------------------------------------------------------------------------------------------------------------------------------------

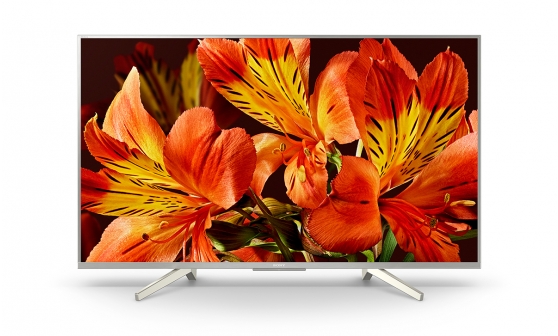

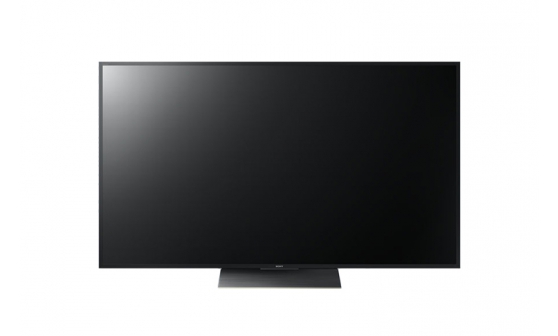

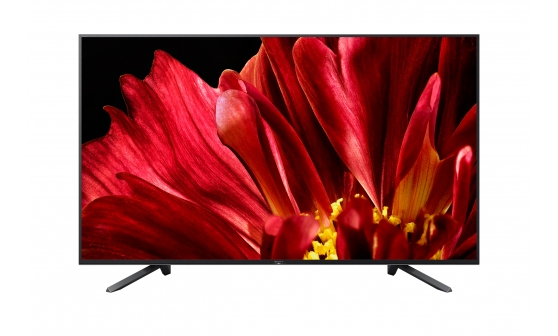

Specifications Display features Dimming type Frame Dimming Display device LCD Backlight type Edge LED Brightness (cd/m2) (*1) 620 Contrast Ratio (*1) 1400:1 Dynamic Contrast Ratio 500,000:1 Response Time (ms) (*1) 5 Video specs Wide Mode Wide zoom/Normal/Full/Zoom/14:9 4:3 Default Yes Video Processing 4K X-Reality PRO Motionflow Motionflow XR 960 (Native 120Hz) Compatible with HDR Yes (HDR10, HLG) Video Signal 4096 x 2160p (24, 60 Hz), 3840 x 2160p (24, 30, 60 Hz), 1080p (30, 60 Hz), 1080/24p, 1080i (60 Hz), 720p (30, 60 Hz), 720/24p, 480p, 480i Audio specs Speaker position Down Firing Audio Power Output 10W+10W Network specs Wi-Fi direct Yes Wi-Fi Certified Yes DLNA Home Network Client, Home Network Renderer Miracast (screen mirorring) Yes Firmware update Yes Wireless LAN Integrated Convenience features USB Play (contents) MPEG1: MPEG1/MPEG2PS: MPEG2/MPEG2TS (HDV,AVCHD): MPEG2, AVC/MP4 (XAVCS): AVC, MPEG4, HEVC/AVI: Xvid,  MotionJpeg/ASF (WMV): VC1/MOV: AVC, MPEG4,  MotionJpeg/MKV: Xvid, AVC, MPEG4, VP8. HEVC/WEBM: VP8/3GPP: MPEG4, AVC/MP3/ASF (WMA)/WAV/MP4AAC/FLAC/JPEG On screen clock Yes Sleep timer Yes On/Off timer Yes Google Cast Yes Inputs and outputs HDCP HDCP 2.2 (for HDMI 1/2/3/4) Composite Video Input(s) 1 (Rear Hybrid w/Component) Component Video (Y/Pb/Pr) Input(s) 1 (Rear Hybrid w/Composite) HDMI™ Connection(s) (Total) 4 (3 Side, 1 Rear) Analog Audio Input(s) (Total) 1 (Rear) Digital Audio Output(s) 1 (Rear) Audio Out 1 (Side/Hybrid w/HP and Subwoofer Out) USB 3 (Side) Ethernet Connection(s) 1 (Side) Design Features Finish (Surface Color) Black Table Top Stand Separate (assembly required) VESA® Hole Spacing Compatible Yes VESA® Hole Pitch 400 x 300 mm/15 3/4 x 11 7/8 inch Panel type (IPS/VA) IPS Panel surface treatment AG Haze (%) 3% Bezel size (Top/Side/Bottom (mm)) 9.6/9.6/15.6 Bezel Material Aluminum Eco and energy saving Screen size (measured diagonally) 75" (74.5") Power Consumption (Rated/ standard) 250 W Power Consumption (in Standby) 0.5W Power Requirements AC 120V for UL cUL AC 110-240V for other Power Saving Mode / Back Light Off Mode Yes Dynamic Backlight Control Yes Light Sensor Yes AC Power Input 1 (REAR) Measurements Display Only (WxHxD) (Approx.) 1673 x 963 x 54 (16.8) mm/65 7/8 x 38 x 2 1/4 (11/16) inch Display with Stand (WxHxD) (Approx.) 1673 x 1031 x 371 mm/65 7/8 x 40 5/8 x 14 5/8 inch Package Carton (WxHxD) (Approx.) 1884 x 1083 x 188 mm/74 1/4 x 42 3/4 x 7 1/2 inch Weight Display Only 38.9 Display with Stand 40.1 Package Carton 53 Display specifications Viewing angle (Right/Left) 178 (89/89) degree Viewing angle (Up/Down) 178 (89/89) degree Display resolution QFHD Aspect ratio 16:9 OS Android 7.0 Nougat Signage specs Easy HTML5 Signage embedded Yes Multicast / IPTV Yes Control specs RS-232C Control 1 (Side) Pro Mode Yes IP Control Yes HDMI auto wake-up Yes Notes (*1) Typical value of the panel spec. Availability Please note this model is not available in the following countries: Argentina, Bolivia, Brazil, Chile, Costa Rica, Dominican Republic, Ecuador, El Salvador, Guatemala, Honduras, Jamaica, Mexico, Nicaragua, Panama, Paraguay, Peru, Puerto Rico, Uruguay, and Venezuela.

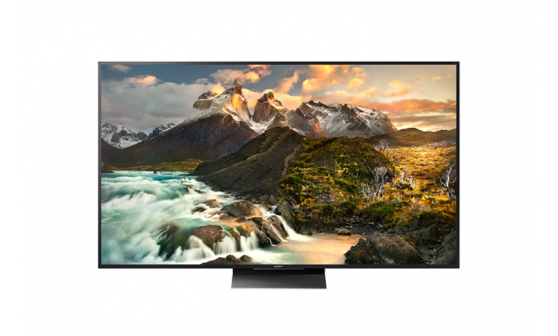

Specifications TV System Tuner ATSC Tuner (Cable) Clear QAM Number of tuners 1(Digital/Analog) Display features Dimming type Local Dimming Display device LCD Backlight type Direct LED Video specs Wide Mode Wide Zoom/Normal/Full/Zoom 4:3 Default Yes Video Processing 4K X-Reality PRO Motionflow X-Motion Clarity Compatible with HDR Yes (HDR10, HLG, Dolby Vision) Video Signal 4096 x 2160p (24, 60 Hz), 3840 x 2160p (24, 30, 60 Hz), 1080p (30, 60, 120 Hz), 1080/24p, 1080i (60 Hz), 720p (30, 60 Hz), 720/24p, 480p Audio specs Speaker position Down Firing Audio Power Output 10W+10W Network specs Wi-Fi direct Yes Wi-Fi Certified Yes DLNA Home Network Client, Home Network Renderer Miracast (screen mirorring) Yes (only for B2B purpose) Firmware update Yes Internet Browser Vewd (not pre-installed) Wireless LAN Integrated Convenience features USB Play (contents) MPEG1:MPEG1/MPEG2PS:MPEG2/MPEG2TS(HDV,AVCHD):MPEG2, AVC/MP4(XAVC S):AVC,MPEG4, HEVC/AVI:Xvid,MotinJpeg/ASF(WMV):VC1/MOV:AVC,MPEG4, MotionJpeg/MKV:Xvid,AVC,MPEG4,VP8.HEVC/WEBM:VP8/3GPP:MPEG4, AVC/MP3/ASF(WMA)/WAV/MP4AAC/FLAC/JPEG On screen clock Yes Sleep timer Yes On/Off timer Yes Google Cast Yes Inputs and outputs HDCP HDCP2.3 (for HDMI 1/2/3/4) RF Connection Input(s) 1(Bottom) Composite Video Input(s) 1 (Side) HDMI™ Connection(s) (Total) 4 (1 side/3 bottom) Digital Audio Output(s) 1 (Bottom) USB 2 (side), 1 (bottom) Ethernet Connection(s) 1 (Bottom) Design features Finish (Surface Color) Black Table Top Stand Separate(assembly required) VESA® Hole Spacing Compatible Yes VESA® Hole Pitch 15 3/4 x 11 7/8 inch / 400 x 300 mm Eco and energy saving Screen size (measured diagonally) 75"(74.5") Power Consumption (Rated/ standard) 395 W Annual Power Consumption 422 kWh/Year Power Consumption (in Standby) 0.5 W Power Requirements AC 120V for UL cUL AC 110-240V for other Power Saving Mode / Back Light Off Mode Yes Dynamic Backlight Control Yes Light Sensor Yes AC Power Input 1(REAR) Measurements Display Only (WxHxD) (Approx.) 66 x 38 x 2 3/4 (2 3/4) inch / 1676 x 963 x 67 (66.9) mm Display with Stand (WxHxD) (Approx.) 66 x 41 x 15 3/4 inch / 1676 x 1039 x 399 mm Package Carton (WxHxD) (Approx.) 70 1/2 x 44 1/8 x 8 3/4 inch / 1790 x 1118 x 222 mm Weight Display Only 84.88 lbs Display with Stand 88.41 lbs Package Carton 114.64 lbs Display specifications Viewing angle (Right/Left) 178 (89/89) degree Viewing angle (Up/Down) 178 (89/89) degree Display resolution QFHD Aspect ratio 16:9 OS Android 8.0 Oreo Signage specs Easy HTML5 Signage embedded Yes Multicast / IPTV Yes Control specs RS-232C Control 1 (Bottom) Hotel Mode Pro Yes IP Control Yes HDMI auto wake-up Yes Warranty information Warranty 3-year commercial warranty Notes *1 This is the perceptible contrast level expanded by X-tended Dynamic Range PRO technology, which is a unique figure calculated for the contrast that users actually feel and experience (XDR Contrast). This figure is based on our conventional TV without local dimming. *2 Needs a remote control compatible with Voice Search. *3 Requires compatible devices connected to the same network. Google Cast requires mobile devices with Android 2.3 or higher, or iOS 6.0 or higher and Chromecast application. Google Play using Android TV Remote Control application requires Android 4.0 or higher; not available for iOS. Voice Search is available using the included remote control, Android TV Remote Control application with Android 4.0 or higher, or using Sony's TV SideView application available for Android 4.0.3 or higher, or iOS 7.0 or higher.

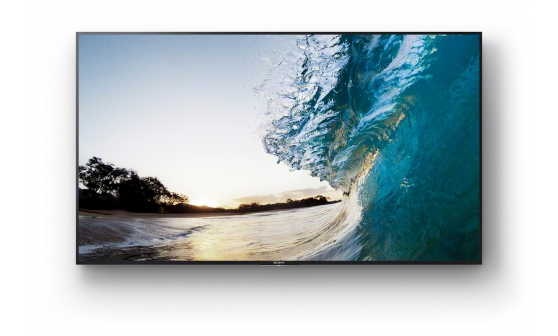

Specifications Display features Dimming type Frame Dimming Display device LCD Backlight type Direct LED Brightness (cd/m2) (*1) 620 Contrast Ratio (*1) 4000:1 Dynamic Contrast Ratio 500,000:1 Response Time (ms) (*1) 6 Video specs Wide Mode Wide zoom/Normal/Full/Zoom/14:9 4:3 Default Yes Video Processing 4K X-Reality PRO Motionflow Motionflow XR 960 (Native 120Hz) Compatible with HDR Yes (HDR10, HLG) Video Signal 4096 x 2160p (24, 60 Hz), 3840 x 2160p (24, 30, 60 Hz), 1080p (30, 60 Hz), 1080/24p, 1080i (60 Hz), 720p (30, 60 Hz), 720/24p, 480p, 480i Audio specs Speaker position Down Firing Audio Power Output 10W+10W Network specs Wi-Fi direct Yes Wi-Fi Certified Yes DLNA Home Network Client / Home Network Renderer Miracast (screen mirorring) Yes Firmware update Yes Wireless LAN Integrated Convenience features USB Play (contents) MPEG1: MPEG1/MPEG2PS: MPEG2/MPEG2TS (HDV, AVCHD): MPEG2, AVC/MP4 (XAVCS): AVC, MPEG4, HEVC/AVI: Xvid, MotionJpeg/ASF (WMV): VC1/MOV: AVC, MPEG4, MotionJpeg/MKV: Xvid, AVC, MPEG4, VP8.HEVC/WEBM: VP8/3GPP: MPEG4, AVC/MP3/ASF (WMA)/WAV/MP4AAC/FLAC/JPEG On screen clock Yes Sleep timer Yes On/Off timer Yes Google Cast Yes Inputs and outputs HDCP HDCP 2.2 (for HDMI 1/2/3/4) Composite Video Input(s) 1 (Rear Hybrid w/Component) Component Video (Y/Pb/Pr) Input(s) 1 (Rear Hybrid w/Composite) HDMI™ Connection(s) (Total) 4 (3 Side, 1 Rear) Analog Audio Input(s) (Total) 1 (Rear) Digital Audio Output(s) 1 (Rear) Audio Out 1 (Side/Hybrid w/HP and Subwoofer Out) USB 3 (Side) Ethernet Connection(s) 1 (Side) Design Features Finish (Surface Color) Black Table Top Stand Separate (assembly required) VESA® Hole Spacing Compatible Yes VESA® Hole Pitch 400 x 400 mm/15 3/4 x 15 3/4 inch Panel type (IPS/VA) VA Panel surface treatment AG Haze (%) 2% Bezel size (Top/Side/Bottom (mm)) 17/17/17 Bezel Material Aluminum Eco and energy saving Screen size (measured diagonally) 85" (84.6") Power Consumption (Rated/ standard) 378 W Power Consumption (in Standby) 0.5W Power Requirements AC 120V for UL cUL AC 110-240V for other Power Saving Mode / Back Light Off Mode Yes Dynamic Backlight Control Yes Light Sensor Yes AC Power Input 1 (REAR) Measurements Display Only (WxHxD) (Approx.) 1911 x 1098 x 73 mm/75 1/4 x 43 1/4 x 2 7/8 inch Display with Stand (WxHxD) (Approx.) 1911 x 1176 x 429 mm/75 1/4 x 46 3/8 x 17 inch Package Carton (WxHxD) (Approx.) 2082 x 1233 x 369 mm/82 x 48 5/8 x 14 5/8 inch Weight Display Only 44.1 Display with Stand 46.2 Package Carton 64 Display specifications Viewing angle (Right/Left) 178 (89/89) degree Viewing angle (Up/Down) 178 (89/89) degree Display resolution QFHD Aspect ratio 16:9 OS Android 7.0 Nougat Signage specs Easy HTML5 Signage embedded Yes Multicast / IPTV Yes Control specs RS-232C Control 1 (Side) Pro Mode Yes IP Control Yes HDMI auto wake-up Yes Notes (*1) Typical value of the panel spec. Availability Please note this model is not available in the following countries: Argentina, Bolivia, Brazil, Chile, Costa Rica, Dominican Republic, Ecuador, El Salvador, Guatemala, Honduras, Jamaica, Mexico, Nicaragua, Panama, Paraguay, Peru, Puerto Rico, Uruguay, and Venezuela.

Specifications 3D Features 3D capability Active 3D Format Support Yes (exclude 4K) 3D Super-resolution Yes Audio Bass/Treble/Balance Balance DSEE/DSEE-HX DSEE 2ch, Two way speaker Speaker Configuration [Tweeter (30mm) + Woofer (40 x 100mm)] x2 Speaker Position Down Firing Speaker Type Long Duct Audio Features Advanced Auto Volume Yes Alternate Audio (Digital) Yes ARC Output Format Dolby Digital, Dolby Digital Plus, DTS, PCM Audio Out Fixed / Variable Auto Mute (on no signal) Yes Auto Surround Yes Clear Audio+ Yes Clear Phase Yes Digital audio out (Optical) format Dolby Digital, DTS, PCM Dolby audio format Dolby Digital, Dolby support Digital Plus, Dolby Pulse DTS audio format support DTS Digital Surround HDMI Audio Return Channel(ARC) Yes, PCM (5.1ch, 32, 44.1, 48, HDMI input Audio 88.2, 96, 176.4, 192 Headphone/Speaker Link Yes Simulated Surround Sound S-Force Front Surround S-Master S-Master Digital Amplifier Sound Modes Standard, Cinema, Live Football, Music Convenience Features Application Store Yes (Google Play Store) Auto Picture Mode Yes Auto Shut-off Yes Channel Block (with password) Analog & Digital Google Cast™ Yes HDMI-CEC Yes i-Manual Yes Multiple Language Display English, Spanish, French On/Off Timer Yes On-Screen Clock Yes Parental Control Yes Show/Hide Channels Yes (Digital & Analog) Sleep Timer Yes Text Input Language BUL / CAT / HRV / CES / DAN / DUT / ENG / EST / HUN / ITA / LAV / LIT / / FIN / FRA / GER / GRK / NOR / POL / POR / RON / RUS / SLK / SLV / SPA / SWE / TUR / UKR / THA / VIE / ARA / FAS / JPN USB drive format Yes (Supported File support System: FAT16/ FAT32/ exFAT/ NTFS) MPEG1: MPEG1 / MPEG2PS: MPEG2 / MPEG2TS(HDV,AVCHD): MPEG2, AVC/ MP4(XAVCS): AVC, MPEG4, HEVC/AVI: Xvid USB playback codecs MotinJpeg / ASF(WMV): VC1 / MOV: AVC,MPEG4, MotionJpeg / MKV: Xvid, AVC, MPEG4, VP8. HEVC/WEBM: VP8/3GPP: MPEG4, AVC / MP3 / ASF(WMA) / WAV / MP4AAC / FLAC / JPEG Voice Search Yes Customizing Capability RS-232C Control Yes Design Features Cable Management Yes Frame color Black Illumination LED Yes Stand Design Black Slate Display Features Backlight dimming type Local Dimming Backlight Type Direct LED (Backlight Master Drive) Display type LCD TRILUMINOS Display Yes X-tended Dynamic X-tended Dynamic Range PRO/ X-tended Range PRO Dynamic Range Display Aspect Ratio 16:9 Display Resolution QFHD Display resolution (H x 3840 x 2160 V, pixels) Screen Size (cm, measured diagonally) 252.8 cm Screen Size (inch, measured diagonally) 100" (99.5") Viewing Angle (Right/Left) 178 (89/89) degree Viewing Angle (Up/Down) 178 (89/89) degree Energy Saving & Efficiency Backlight Off Mode Yes Dynamic Backlight Yes Control Yes Power Saving Mode Yes General Features Analog Yes Closed Captions (CC) Yes Digital Yes Demo Mode Yes Hotel Mode Menu Yes Inputs and Outputs Up to 18Gbps 4K 4K 60P High-Quality 60p 4:4:4(8bit), formats 4:2:2(8,10,12bit), 4:2:0(8,10bit) HDR included for HDMI AC Power Input 1 (rear) Analog Audio Input(s) 2 (1 Analog Conversion (Total) / 1 Rear) Audio / Headphone 1 (Side / Hybrid w/HP Output(s) and Subwoofer Out) Bluetooth profile Version 4.1 HID / HOGP / support 3DSP / SPP Component Video (Y/Pb/Pr) Input(s) 1 (rear) Composite Video 2 (1 Side Analog Input(s) Conversion / 1 Rear Hybrid w/Component) Digital Audio Output(s) 1 (side) Ethernet Connection(s) 1 (side) HDCP HDCP 2.2 (for HDMI1/2/3/4) HDMI inputs total 4 (outside 1, center 3) 640 x 480@60Hz, 800 x 600@60Hz, 1024 x 768@60Hz, 1280 x 1024@60Hz HDMI PC Input Format 1600 x 900@60Hz, 1152 x 864@75Hz, 1680 x 1050@60Hz, 1920 x 1080@60Hz, 3840 x 2160@30Hz, 4096 x 2160p (24, 60Hz), 3840 x 2160p (24, 30, HDMI Signal 60Hz), 1080p (30, 60Hz), 1080/24p, 1080i (60Hz), 720p (30, 60Hz), 720/24p, 480p, 480i Frame Packing 1080p (30Hz), 1080/24p, 1080i (60Hz), 720p (30, 60Hz), 720/24p. HDMI Signal 3D Side-by-Side 1080p (60Hz), 1080/24p, 1080i (60Hz), 720p (60Hz). Over-Under 1080p (30, 60Hz), 1080/24p, 1080i (60Hz), 720p (60Hz) Headphone Output(s) 1 (Side / Hybrid w/HP and Subwoofer Out) RF Connection Input(s) 1 (side) RS-232C Input(s) 1 (Side / Mini Jack) Subwoofer Out 1 (Side / Hybrid w/HP and Subwoofer Out) USB Port(s) 3 (side) Network Features MPEG1 MPEG1/ MPEG2PS: MPEG2/Codec for Home MPEG2TS(HDV,AVCHD): Network MPEG2,AVC/MP4(XAVCS): AVC,MPEG4,HEVC/AVI: Xvid,MotinJpeg/ ASF(WMV): VC1 Electronic Program Guide (EPG) Yes Featured (Content (depends on ad Bar) provider on that region) Yes Home Network Feature Home Network Client / Home Network Renderer Internet Browser Opera (not pre-Installed) Live Football Mode Yes Content Bar Yes Genre Categories Other Network (Content Bar) Yes Features (depend on countries) Related Info Yes (US / Canada / MX(STB)) Photo Sharing Plus / Photo Share Yes Screen mirroring(Miracast™) Yes Social Viewing Yes Trending on Twitter Yes (only US) TV SideView™ Yes Wi-Fi Certified Yes Wi-Fi Direct Yes Wi-Fi Frequency 2.4GHz / 5GHz Wi-Fi Standard a/b/g/n/ac Wireless LAN Integrated Power Annual Power Consumption 471 kWh/Year Power Consumption 767W (in Operation) Power Consumption 0.5W (in Standby) Power Requirements 60Hz for UL cUL 50/60Hz (frequency) for other Power Requirements AC 120V for UL cUL AC (voltage) 110-240V for other Regulation and Standards Compliance VESA® Hole Pitch 23 5/8 x 15 3/4 in (600 x 400 mm) VESA® Hole Spacing Compatible Yes Sensing Features LightSensor™ Technology Yes Service and Warranty Information Limited Warranty Term 12 months TV System Channel Coverage VHF: 2-13 / UHF: 14-69 / (Analog) CATV: 1-135 Color Space sRGB / BT709, BT2020, AdobeRGB, DCI Color System NTSC Number of Tuners 1 (Digital / Analog) (Terrestrial/Cable) On-board Storage 16 GB OS Android Yes Tuner Channel Coverage (Digital CATV: 1-135 Cable) Tuner Channel Coverage (Digital VHF: 2-13 / UHF: 14-69 Terrestrial) TV System (Analog) M TV System (Digital Cable) Clear QAM TV System (Digital Terrestrial) ATSC Video Features 24p True Cinema Yes 4:3 Default Yes 4K Processor X1 Extreme Advanced Contrast Enhancer (ACE) Yes Auto Wide Yes Blinking Type Line Blinking Face Area Detection Yes HDR (High Dynamic Range) compatiblity Yes Live Color™ Yes Technology Mastered in 4K Yes Motionflow™ XR Yes Technology Motionflow XR Yes Panel Refresh Rate (Native Hertz) 120Hz PhotoTV HD Yes Vivid, Standard, Custom, Cinema Pro, Cinema Picture Modes Home, Sports, Animation, Photo-Vivid, Photo-Standard, Photo-Custom, Game, Graphics Video Processing 4K X-Reality PRO Wide / Normal / Full / Wide Mode Zoom Normal / Full1 / Full2 for PC: 1080p (60 Hz), 1080i (60 Video Signal (analog) Hz), 720p (60 Hz), 480p, 480i CineMotion/Film Mode/Cinema Drive Yes Weights and Measurements TV only 89 x 51 3/8 x 3 7/8 in (2258 x 1303 x 98 7/8 in (2258 x 1303 x 98 mm) TV with stand 89(89) x 54 7/8(67 3/4) x 19 7/8(26 5/8) in (2258(2258) Dimensions (Approx.)x1393(1718)x504(675)mm) Stand Width 29 5/8(89) in (750(2258) mm) AC Cable Length 2000 mm Carton dimensions 96 1/2 x 65 1/4 x 30 in (2450 Packaging (Approx.) x 1657 x 760 mm) Carton weight 484.6lbs (220 kg) TV only 261.3 lbs (118.6 kg) Weight (Approx.) TV with stand 319.0(291.5) lbs (144.8(132.3) kg) Accessories Voice Remote Control (RMF-TX201U)3D Glasses x 2 ( TDG- BT400A)Batteries (R03)AC Power Cord (C17 US 2Pin (w Polarity)

Specifications 3D Features 3D capability Active 3D Format Support Yes (exclude 4K) 3D Super-resolution Yes Audio Bass/Treble/Balance Balance DSEE/DSEE-HX DSEE Speaker Configuration 2ch, Full Range (30 x 80mm) x 2 Speaker Position Bass Reflex Speaker Type Long Duct Audio Features Advanced Auto Volume Yes Alternate Audio (Digital) Yes ARC Output Format Dolby Digital, Dolby Digital Plus, DTS, PCM Audio Out Fixed / Variable Auto Mute (on no signal) Yes Auto Surround Yes Clear Audio+ Yes Clear Phase Yes Digital audio out (Optical) format Dolby Digital, DTS, PCM Dolby audio format Dolby Digital, Dolby support Digital Plus, Dolby Pulse DTS audio format support DTS Digital Surround HDMI Audio Return Channel(ARC) Yes, PCM (5.1ch, 32, 44.1, 48, HDMI input Audio 88.2, 96, 176.4, 192 Headphone/Speaker Link Yes Simulated Surround Sound S-Force Front Surround S-Master S-Master Digital Amplifier Sound Modes Standard, Cinema, Live Football, Music Convenience Features Application Store Yes (Google Play Store) Auto Picture Mode Yes Auto Shut-off Yes Channel Block (with password) Analog & Digital Google Cast™ Yes HDMI-CEC Yes i-Manual Yes Multiple Language Display English, Spanish, French On/Off Timer Yes On-Screen Clock Yes Parental Control Yes Show/Hide Channels Yes (Digital & Analog) Sleep Timer Yes Text Input Language BUL / CAT / HRV / CES / DAN / DUT / ENG / EST / HUN / ITA / LAV / LIT / / FIN / FRA / GER / GRK / NOR / POL / POR / RON / RUS / SLK / SLV / SPA / SWE / TUR / UKR / THA / VIE / ARA / FAS / JPN USB drive format Yes (Supported File support System: FAT16/ FAT32/ exFAT/ NTFS) MPEG1 / MPEG2PS / MPEG2TS / AVCHD / MP4Part10 / MP4Part2 / USB playback codecs AVI (MotinJpeg) / MOV / WMV / MKV / WEBM / 3GPP / MP3 / WMA / WAV / FLAC / JPEG Voice Search Yes Customizing Capability RS-232C Control Yes Design Features Cable Management Yes Frame color Black Illumination LED Yes Stand Design Black Slate Display Features Backlight dimming type Local Dimming Backlight Type Direct LED (Backlight Master Drive) Display type LCD TRILUMINOS Display Yes X-tended Dynamic X-tended Dynamic Range PRO/ X-tended Range PRO Dynamic Range Display Aspect Ratio 16:9 Display Resolution QFHD Display resolution (H x 3840 x 2160 V, pixels) Screen Size (cm, measured diagonally) 189.3 cm Screen Size (inch, measured diagonally) 75" (74.5") Viewing Angle (Right/Left) 178 (89/89) degree Viewing Angle (Up/Down) 178 (89/89) degree Energy Saving & Efficienct Backlight Off Mode Yes Dynamic Backlight Yes Control Yes Power Saving Mode Yes General Features Analog Yes Closed Captions (CC) Yes Digital Yes Demo Mode Yes Hotel Mode Menu Yes Inputs and Outputs Up to 18Gbps 4K 4K 60P High-Quality 60p 4:4:4(8bit), formats 4:2:2(8,10,12bit), 4:2:0(8,10bit) HDR included for HDMI AC Power Input 1 (rear) Analog Audio Input(s) 2 (1 Analog Conversion (Total) / 1 Rear) Audio / Headphone 1 (Side / Hybrid w/HP Output(s) and Subwoofer Out) Bluetooth profile Version 4.1 HID / HOGP / support 3DSP / SPP Component Video (Y/Pb/Pr) Input(s) 1 (rear) Composite Video 2 (1 Side Analog Input(s) Conversion / 1 Rear Hybrid w/Component) Digital Audio Output(s) 1 (side) Ethernet Connection(s) 1 (side) HDCP HDCP 2.2 (for HDMI1/2/3/4) HDMI inputs total 4 (outside 1, center 3), 640 x 480@60Hz,800 x 600@60Hz, 1028 x 1024@60Hz HDMI PC Input Format 1600 x 900@60Hz, 1152 x 864@75Hz, 1680 x 1050@60Hz, 1920 x 1080@60Hz, 3840 x 2160@30Hz, 4096 x 2160p (24, 60Hz), 3840 x 2160p (24, 30, HDMI Signal 60Hz), 1080p (30, 60Hz), 1080/24p, 1080i (60Hz), 720p (30, 60Hz), 720/24p, 480p, 480i Frame Packing 1080p (30Hz), 1080/24p, 1080i (60Hz), 720p (30, 60Hz), 720/24p. HDMI Signal 3D Side-by-Side 1080p (60Hz), 1080/24p, 1080i (60Hz), 720p (60Hz). Over-Under 1080p (30, 60Hz), 1080/24p, 1080i (60Hz), 720p (60Hz) Headphone Output(s) 1 (Side / Hybrid w/HP and Subwoofer Out) RF Connection Input(s) 1 (side) RS-232C Input(s) 1 (Side / Mini Jack) Subwoofer Out 1 (Side / Hybrid w/HP and Subwoofer Out) USB Port(s) 3 (side) Network Features MPEG1 MPEG1/ MPEG2PS: MPEG2/Codec for Home MPEG2TS(HDV,AVCHD): Network MPEG2,AVC/MP4(XAVCS): AVC,MPEG4,HEVC/AVI: Xvid,MotinJpeg/ ASF(WMV): VC1 Electronic Program Guide (EPG) Yes Featured (Content (depends on ad Bar) provider on that region) Yes Home Network Feature Home Network Client / Home Network Renderer Internet Browser Opera (not pre-Installed) Live Football Mode Yes Content Bar Yes Genre Categories Other Network (Content Bar) Yes Features (depend on countries) Related Info Yes (US / Canada / MX(STB)) Photo Sharing Plus / Photo Share Yes Screen mirroring(Miracast™) Yes Social Viewing Yes Trending on Twitter Yes (only US) TV SideView™ Yes Wi-Fi Certified Yes Wi-Fi Direct Yes Wi-Fi Frequency 2.4GHz / 5GHz Wi-Fi Standard a/b/g/n/ac Wireless LAN Integrated Power Annual Power Consumption 267 kWh/Year Power Consumption 428W (in Operation) Power Consumption 0.5W (in Standby) Power Requirements 60Hz for UL cUL 50/60Hz (frequency) for other Power Requirements AC 120V for UL cUL AC (voltage) 110-240V for other Regulation and Standards Compliance VESA® Hole Pitch 15 3/4 x 11 7/8 in (400 x 300 mm) VESA® Hole Spacing Compatible Yes Sensing Features LightSensor™ Technology Yes Service and Warranty Information Limited Warranty Term 12 months TV System Channel Coverage VHF: 2-13 / UHF: 14-69 / (Analog) CATV: 1-135 Color Space sRGB / BT709, BT2020, AdobeRGB, DCI Color System NTSC Number of Tuners 1 (Digital / Analog) (Terrestrial/Cable) On-board Storage 16 GB OS Android Yes Tuner Channel Coverage (Digital CATV: 1-135 Cable) Tuner Channel Coverage (Digital VHF: 2-13 / UHF: 14-69 Terrestrial) TV System (Analog) M TV System (Digital Cable) Clear QAM TV System (Digital Terrestrial) ATSC Video Features 24p True Cinema Yes 4:3 Default Yes 4K Processor X1 Extreme Advanced Contrast Enhancer (ACE) Yes Auto Wide Yes Blinking Type Line Blinking Face Area Detection Yes HDR (High Dynamic Range) compatiblity Yes Live Color™ Yes Technology Mastered in 4K Yes Motionflow™ XR Yes Technology Motionflow XR Yes Panel Refresh Rate (Native Hertz) 120Hz PhotoTV HD Yes Vivid, Standard, Custom, Cinema Pro, Cinema Picture Modes Home, Sports, Animation, Photo-Vivid, Photo-Standard, Photo-Custom, Game, Graphics Video Processing 4K X-Reality PRO Wide / Normal / Full / Wide Mode Zoom Normal / Full1 / Full2 for PC: 1080p (60 Hz), 1080i (60 Video Signal (analog) Hz), 720p (60 Hz), 480p, 480i CineMotion/Film Mode/Cinema Drive Yes Weights and Measurements TV only 66 3/8 x 38 3/8 x 3 1/8 in (1684 x 973 x 78 mm) TV with stand 66 3/8 x 41 1/4 x 11 in (1684 x 1047 x Dimensions (Approx.) 278 mm) Stand Width 17 1/4 in (437 mm) AC Cable Length 1500 mm Carton dimensions 75 3/4 x 43 3/8 x 10 3/8 in (1922 x Packaging (Approx.) 1100 x 262 mm) Carton weight 130lb. (59 kg) TV only 91.0 lbs (41.3 Kg) Weight (Approx.) TV with stand 99.4 lbs (45.1 Kg) Accessories Voice Remote Control (RMF-TX201U)

Specifications TV System Tuner ATSC Tuner (Cable) Clear QAM Number of tuners 1(Digital/Analog) Display features Dimming type Frame Dimming Display device LCD Backlight type Edge LED Video specs Wide Mode Wide Zoom/Normal/Full/Zoom 4:3 Default Yes Video Processing 4K X-Reality PRO Motionflow Motionflow XR 960 (Native 120Hz) Compatible with HDR Yes Video Signal 4096x2160p(24, 60Hz), 3840x2160p(24, 30, 60Hz), 1080p(30, 60Hz), 1080/24p, 1080i(60Hz), 720p(30, 60Hz), 720/24p, 480p, 480i Audio specs Speaker position Down Firing Audio Power Output 10W+10W Network specs Wi-Fi direct Yes Wi-Fi Certified Yes DLNA Home Network Client / Home Network Renderer Miracast (screen mirorring) Yes Firmware update Yes Internet Browser Opera (not pre-installed) Wireless LAN Integrated Convenience features USB Play (contents) MPEG1:MPEG1/MPEG2PS:MPEG2/MPEG2TS(HDV,AVCHD):MPEG2, AVC/MP4(XAVCS):AVC,MPEG4, HEVC/AVI:Xvid,MotinJpeg/ASF(WMV):VC1/MOV:AVC,MPEG4, MotionJpeg/MKV:Xvid,AVC,MPEG4,VP8. HEVC/WEBM:VP8/3GPP:MPEG4,AVC/MP3/ASF(WMA)/WAV/MP4AAC/ FLAC/JPEG On screen clock Yes Sleep timer Yes On/Off timer Yes Google Cast Yes Inputs and outputs HDCP HDCP 2.2 (for HDMI1/2/3/4) RF Connection Input(s) 1 (Side) Composite Video Input(s) 2 (1 Side Analog Conversion / 1Rear Hybrid w/Component) Component Video (Y/Pb/Pr) Input(s) 1 (Rear Hybrid w/Composite) HDMI™ Connection(s) (Total) 4 (3 Side / 1 Rear) Analog Audio Input(s) (Total) 1 Digital Audio Output(s) 1 (Side) Audio Out 1 (Side/Hybrid w/HP and Subwoofer Out) USB 3 (Side) Ethernet Connection(s) 1 (Side) Design features Finish (Surface Color) Black Table Top Stand Separate (assembly required) VESA® Hole Spacing Compatible Yes Eco and energy saving Screen size (measured diagonally) 75" (74.5") Power Consumption (Rated / Standard) 219W Annual Power Consumption 157 kWh/Year Power Consumption (in Standby) 0.5 W Power Requirements AC 120V for UL cUL AC 110-240V for other Power Saving Mode / Back Light Off Mode Yes Dynamic Backlight Control Yes Light Sensor Yes AC Power Input 1 (REAR) Measurements Display Only (WxHxD) (Approx.) 1677 x 968 x 53 (15.7) mm / 66 1/8 x 38 1/8 x 2 1/8(5/8) inch Display with Stand (WxHxD) (Approx.) 1677 x 1032 x 284 mm / 66 1/8 x 40 3/4 x 11 1/4 inch Package Carton (WxHxD) (Approx.) 1793 x 1088 x 216 mm / 70 5/8 x 42 7/8 x 8 5/8 inch Weight Display Only 34.1 kg Display with Stand 35.2 kg Package Carton 48 kg Display specifications Viewing angle (Right/Left) 178 (89/89) degree Viewing angle (Up/Down) 178 (89/89) degree Display resolution QFHD Aspect ratio 16:9 OS Android 6.0, Marshmallow Signage specs Easy HTML5 Signage embedded Yes Multicast / IPTV Yes Control specs RS-232C Control 1 (Rear/Mini Jack) IR Pass Through Yes Hotel Mode Pro Yes (Simple) IP Control Yes HDMI auto wake-up Yes

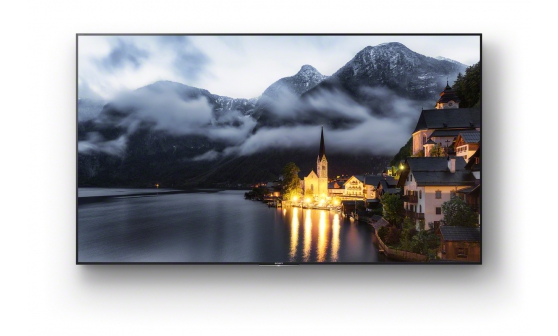

Specifications TV System Tuner ATSC Tuner (Cable) Clear QAM Number of tuners 1(Digital/Analog) Display features Dimming type Local Dimming Display device LCD Backlight type Direct LED Video specs Wide Mode Wide Zoom/Normal/Full/Zoom 4:3 Default Yes Video Processing 4K X-Reality PRO Motionflow Motionflow XR 960 (Native 120Hz) Compatible with HDR Yes Video Signal 4096x2160p(24, 60Hz), 3840x2160p(24, 30, 60Hz), 1080p(30, 60Hz), 1080/24p, 1080i(60Hz), 720p(30, 60Hz), 720/24p, 480p, 480i Audio specs Speaker position Down Firing Audio Power Output 10W+10W Network specs Wi-Fi direct Yes Wi-Fi Certified Yes DLNA Home Network Client / Home Network Renderer Miracast (screen mirorring) Yes Firmware update Yes Internet Browser Opera (not pre-installed) Wireless LAN Integrated Convenience features USB Play (contents) MPEG1:MPEG1/MPEG2PS:MPEG2/MPEG2TS(HDV,AVCHD):MPEG2, AVC/MP4(XAVC S):AVC,MPEG4, HEVC/AVI:Xvid,MotinJpeg/ASF(WMV):VC1/MOV:AVC,MPEG4, MotionJpeg/MKV:Xvid,AVC,MPEG4,VP8. HEVC/WEBM:VP8/3GPP:MPEG4,AVC/MP3/ASF(WMA)/WAV/MP4 AAC/FLAC/JPEG On screen clock Yes Sleep timer Yes On/Off timer Yes Google Cast Yes Inputs and outputs HDCP 2.2 (for HDMI 1/2/3/4) RF Connection Input(s) 1 (Side) Composite Video Input(s) 2 (1 Side Analog Conversion/1 Rear Hybrid w/Component) Component Video (Y/Pb/Pr) Input(s) 1 (Rear Hybrid w/Composite) HDMI™ Connection(s) (Total) 4 (3 Side / 1 Rear) Analog Audio Input(s) (Total) 1 Digital Audio Output(s) 1 (Rear) Audio Out 1 (Side/Hybrid w/HP and Subwoofer Out) USB 3 (Side) Ethernet Connection(s) 1 (Side) Design features Finish (Surface Color) Black Table Top Stand Separate (assembly required) VESA® Hole Spacing Compatible Yes (400 x 400 mm) Eco andenergy saving Screen size (measured diagonally) 75" (74.5") Power Consumption (in operation) 310W Annual Power Consumption 212 kWh/Year Power Consumption (in Standby) 0.5 W Power Requirements AC 120V for UL cUL AC 110-240V for other Power Saving Mode / Back Light Off Mode Yes Dynamic Backlight Control Yes Light Sensor Yes AC Power Input 1 (REAR) Measurements Display Only (WxHxD) (Approx.) 1674 x 959 x 66 mm / 66 x 37 7/8 x 2 5/8 inch Display with Stand (WxHxD) (Approx.) 1674 x 1021 x 296 mm / 66 x 40 1/4 x 11 3/4 inch Package Carton (WxHxD) (Approx.) 1780 x 1082 x 195 mm / 70 1/8 x 42 5/8 x 7 3/4 inch Weight Display Only 33.2 kg Display with Stand 35 kg Package Carton 47 kg Display specifications Viewing angle (Right/Left) 178 (89/89) degree Viewing angle (Up/Down) 178 (89/89) degree Display resolution QFHD Aspect ratio 16:9 Operating System Android 6.0, Marshmallow Signage specs Easy HTML5 Signage embedded Yes Multicast / IPTV Yes Control specs RS-232C Control 1 (Rear/Mini Jack) IR Pass Through Yes Hotel Mode Pro Yes (Simple) IP Control Yes HDMI auto wake-up Yes
