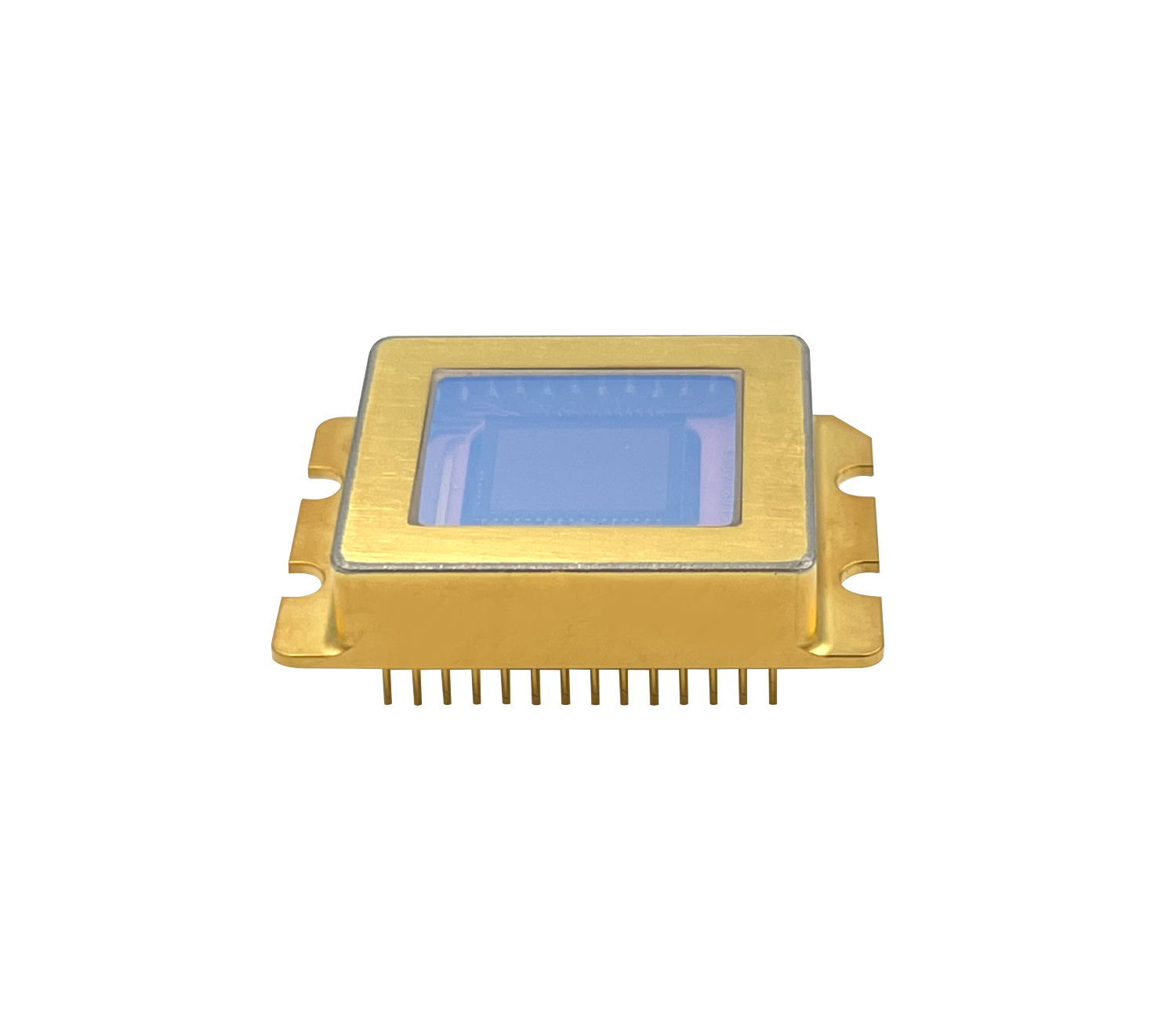

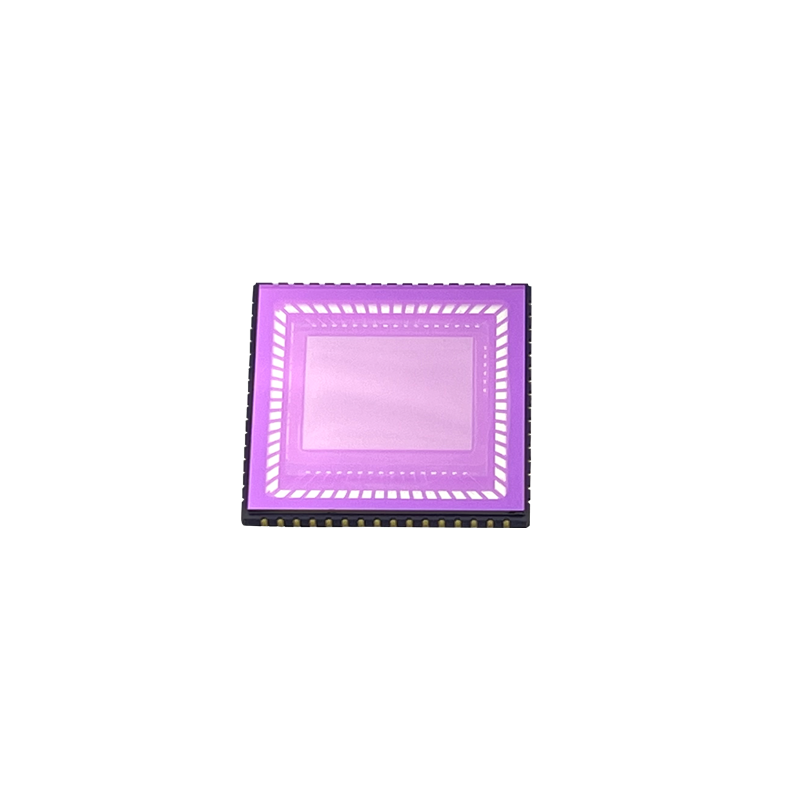

No. Part no. Data Sheet photo Product Name Number of Effective Pixels Pixel Size (μm) Pixel Pitch (μm) Image Size (mm) Spectral Response Range Frame Rate Package Cooling 1 FPA0640P15F-17V-C InGaAs area image sensor 640x512 15x15 15 16x12.8 900-1700 nm 240 fps CLCC Un-Cooled 2 FPA0640P15F-17V-T1 InGaAs area image sensor 640x512 15x15 15 16x12.8 900-1700 nm 240 fps Kovar 1-stage-TE-Cooled 3 FPA0640P15F-17-C InGaAs area image sensor 640x512 15x15 15 16x12.8 900-1700 nm 240 fps CLCC Un-Cooled 4 FPA0640P15F-17-T1 InGaAs area image sensor 640x512 15x15 15 16x12.8 900-1700 nm 240 fps Kovar 1-stage-TE-Cooled 5 FPA0640P15F-17-T1a InGaAs area image sensor 640x512 15x15 15 16x12.8 900-1700 nm 240 fps Kovar 2-stage-TE-Cooled 6 FPA0640P15F-17-T2 InGaAs area image sensor 640x512 15x15 15 16x12.8 900-1700 nm 240 fps Kovar 2-stage-TE-Cooled 7 FPA0640P15F-17-T2a InGaAs area image sensor 640x512 15x15 15 16x12.8 900-1700 nm 240 fps Kovar 2-stage-TE-Cooled 8 FPA0640P15F-19-T2 InGaAs area image sensor 640x512 15x15 15 9.6x7.68 1100-1900 nm 240 fps Kovar 2-stage-TE-Cooled 9 FPA0640P15F-19-T2a InGaAs area image sensor 640x512 15x15 15 9.6x7.68 1100-1900 nm 240 fps Kovar 2-stage-TE-Cooled 10 FPA0640P15F-22-T2 InGaAs area image sensor 640x512 15x15 15 9.6x7.68 1200-2200 nm 240 fps Kovar 2-stage-TE-Cooled 11 FPA0640P15F-22-T2a InGaAs area image sensor 640x512 15x15 15 9.6x7.68 1200-2200 nm 240 fps Kovar 2-stage-TE-Cooled

No. Part no. Data Sheet photo Product Name Number of Effective Pixels Pixel Size (μm) Pixel Pitch (μm) Image Size (mm) Spectral Response Range Frame Rate Package Cooling 1 FPA0640P15F-17V-C InGaAs area image sensor 640x512 15x15 15 16x12.8 900-1700 nm 240 fps CLCC Un-Cooled 2 FPA0640P15F-17V-T1 InGaAs area image sensor 640x512 15x15 15 16x12.8 900-1700 nm 240 fps Kovar 1-stage-TE-Cooled 3 FPA0640P15F-17-C InGaAs area image sensor 640x512 15x15 15 16x12.8 900-1700 nm 240 fps CLCC Un-Cooled 4 FPA0640P15F-17-T1 InGaAs area image sensor 640x512 15x15 15 16x12.8 900-1700 nm 240 fps Kovar 1-stage-TE-Cooled 5 FPA0640P15F-17-T1a InGaAs area image sensor 640x512 15x15 15 16x12.8 900-1700 nm 240 fps Kovar 2-stage-TE-Cooled 6 FPA0640P15F-17-T2 InGaAs area image sensor 640x512 15x15 15 16x12.8 900-1700 nm 240 fps Kovar 2-stage-TE-Cooled 7 FPA0640P15F-17-T2a InGaAs area image sensor 640x512 15x15 15 16x12.8 900-1700 nm 240 fps Kovar 2-stage-TE-Cooled 8 FPA0640P15F-19-T2 InGaAs area image sensor 640x512 15x15 15 9.6x7.68 1100-1900 nm 240 fps Kovar 2-stage-TE-Cooled 9 FPA0640P15F-19-T2a InGaAs area image sensor 640x512 15x15 15 9.6x7.68 1100-1900 nm 240 fps Kovar 2-stage-TE-Cooled 10 FPA0640P15F-22-T2 InGaAs area image sensor 640x512 15x15 15 9.6x7.68 1200-2200 nm 240 fps Kovar 2-stage-TE-Cooled 11 FPA0640P15F-22-T2a InGaAs area image sensor 640x512 15x15 15 9.6x7.68 1200-2200 nm 240 fps Kovar 2-stage-TE-Cooled

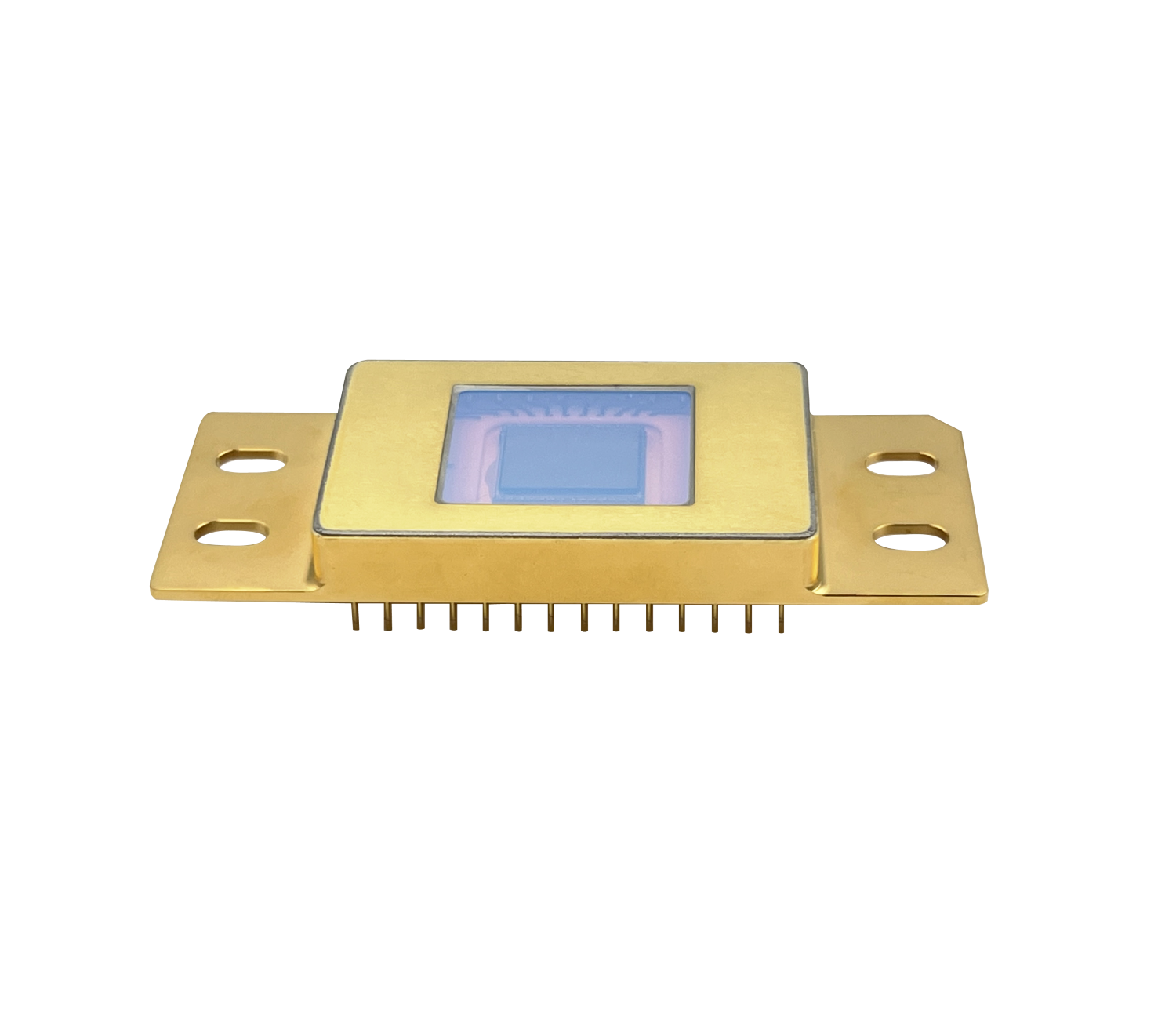

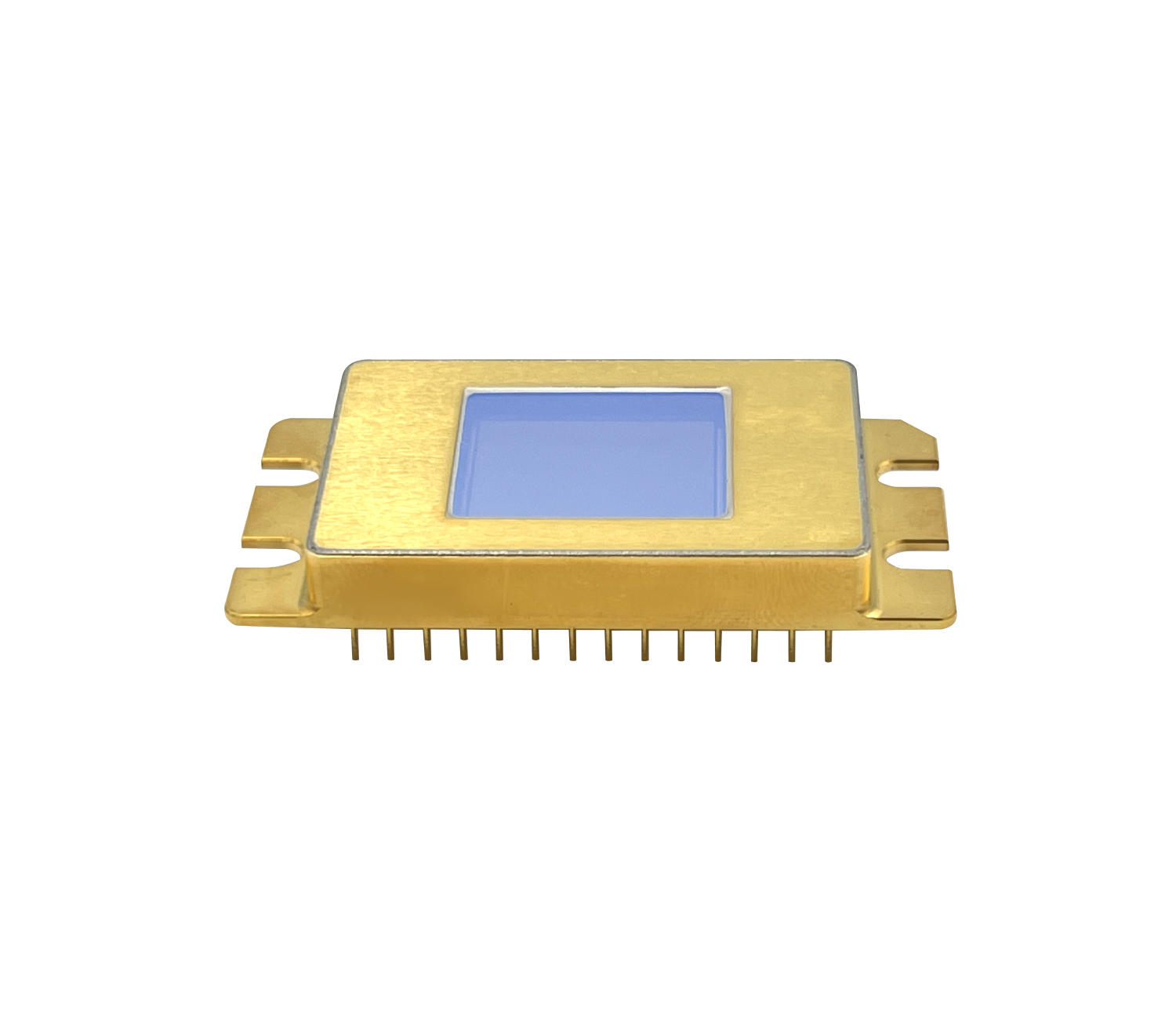

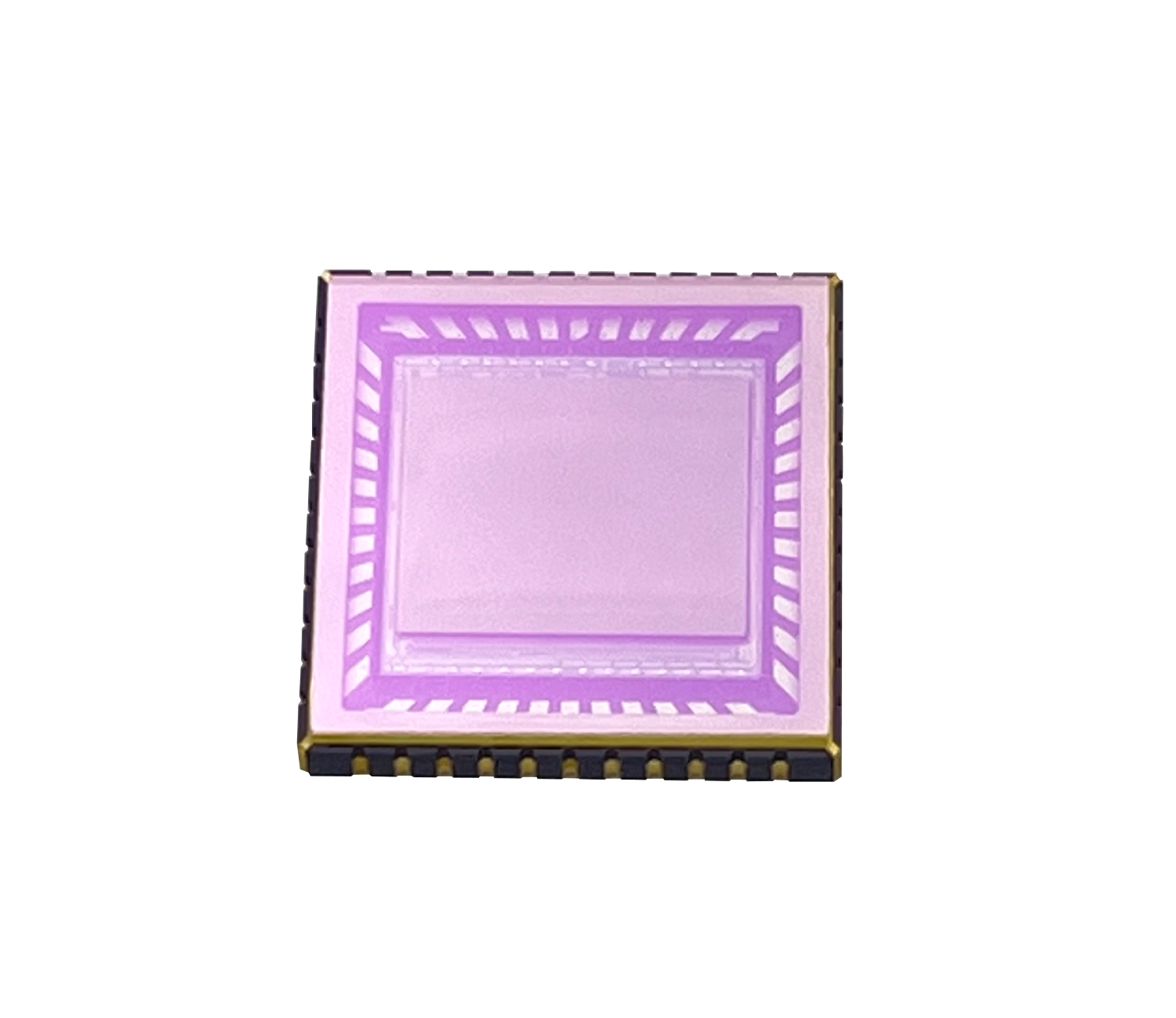

No. Part no. Data Sheet photo Product Name Number of Effective Pixels Pixel Size (μm) Pixel Pitch (μm) Image Size (mm) Spectral Response Range Frame Rate Package Cooling 1 FPA0320P30F-17V-C InGaAs area image sensor 320x256  30x30  30  9.6x7.68  900-1700 nm 346 fps CLCC Un-Cooled 2 FPA0320P30F-17-C InGaAs area image sensor 320x256  30x30  30  9.6x7.68  900-1700 nm 346 fps CLCC Un-Cooled 3 FPA0320P30F-17-T1 InGaAs area image sensor 320x256  30x30  30  9.6x7.68  900-1700 nm 346 fps Kovar 1-stage-TE-Cooled 4 FPA0320P30F-17-T2 InGaAs area image sensor 320x256  30x30  30  9.6x7.68  900-1700 nm 346 fps Kovar 2-stage-TE-Cooled 5 FPA0320P30F-19-TS2 InGaAs area image sensor 320x256  30x30  30  9.6x7.68  1100-1900 nm 346 fps Kovar 2-stage-TE-Cooled 6 FPA0320P30F-22-TS2 InGaAs area image sensor 320x256  30x30  30  9.6x7.68  1200-2200 nm 346 fps Kovar 2-stage-TE-Cooled 7 FPA0320P30F-22-TS2a InGaAs area image sensor 320x256  30x30  30  9.6x7.68  1200-2200 nm 346 fps Kovar 2-stage-TE-Cooled

No. Part no. Data Sheet photo Product Name Number of Effective Pixels Pixel Size (μm) Pixel Pitch (μm) Image Size (mm) Spectral Response Range Frame Rate Package Cooling 1 FPA0320P30F-17V-C InGaAs area image sensor 320x256  30x30  30  9.6x7.68  900-1700 nm 346 fps CLCC Un-Cooled 2 FPA0320P30F-17-C InGaAs area image sensor 320x256  30x30  30  9.6x7.68  900-1700 nm 346 fps CLCC Un-Cooled 3 FPA0320P30F-17-T1 InGaAs area image sensor 320x256  30x30  30  9.6x7.68  900-1700 nm 346 fps Kovar 1-stage-TE-Cooled 4 FPA0320P30F-17-T2 InGaAs area image sensor 320x256  30x30  30  9.6x7.68  900-1700 nm 346 fps Kovar 2-stage-TE-Cooled 5 FPA0320P30F-19-TS2 InGaAs area image sensor 320x256  30x30  30  9.6x7.68  1100-1900 nm 346 fps Kovar 2-stage-TE-Cooled 6 FPA0320P30F-22-TS2 InGaAs area image sensor 320x256  30x30  30  9.6x7.68  1200-2200 nm 346 fps Kovar 2-stage-TE-Cooled 7 FPA0320P30F-22-TS2a InGaAs area image sensor 320x256  30x30  30  9.6x7.68  1200-2200 nm 346 fps Kovar 2-stage-TE-Cooled

No. Part no. Data Sheet photo Product Name Number of Effective Pixels Pixel Size (μm) Pixel Pitch (μm) Image Size (mm) Spectral Response Range Frame Rate Package Cooling 1 FPA0320P30F-17V-C InGaAs area image sensor 320x256  30x30  30  9.6x7.68  900-1700 nm 346 fps CLCC Un-Cooled 2 FPA0320P30F-17-C InGaAs area image sensor 320x256  30x30  30  9.6x7.68  900-1700 nm 346 fps CLCC Un-Cooled 3 FPA0320P30F-17-T1 InGaAs area image sensor 320x256  30x30  30  9.6x7.68  900-1700 nm 346 fps Kovar 1-stage-TE-Cooled 4 FPA0320P30F-17-T2 InGaAs area image sensor 320x256  30x30  30  9.6x7.68  900-1700 nm 346 fps Kovar 2-stage-TE-Cooled 5 FPA0320P30F-19-TS2 InGaAs area image sensor 320x256  30x30  30  9.6x7.68  1100-1900 nm 346 fps Kovar 2-stage-TE-Cooled 6 FPA0320P30F-22-TS2 InGaAs area image sensor 320x256  30x30  30  9.6x7.68  1200-2200 nm 346 fps Kovar 2-stage-TE-Cooled 7 FPA0320P30F-22-TS2a InGaAs area image sensor 320x256  30x30  30  9.6x7.68  1200-2200 nm 346 fps Kovar 2-stage-TE-Cooled

No. Part no. Data Sheet photo Product Name Number of Effective Pixels Pixel Size (μm) Pixel Pitch (μm) Image Size (mm) Spectral Response Range Frame Rate Package Cooling 1 FPA0320P30F-17V-C InGaAs area image sensor 320x256  30x30  30  9.6x7.68  900-1700 nm 346 fps CLCC Un-Cooled 2 FPA0320P30F-17-C InGaAs area image sensor 320x256  30x30  30  9.6x7.68  900-1700 nm 346 fps CLCC Un-Cooled 3 FPA0320P30F-17-T1 InGaAs area image sensor 320x256  30x30  30  9.6x7.68  900-1700 nm 346 fps Kovar 1-stage-TE-Cooled 4 FPA0320P30F-17-T2 InGaAs area image sensor 320x256  30x30  30  9.6x7.68  900-1700 nm 346 fps Kovar 2-stage-TE-Cooled 5 FPA0320P30F-19-TS2 InGaAs area image sensor 320x256  30x30  30  9.6x7.68  1100-1900 nm 346 fps Kovar 2-stage-TE-Cooled 6 FPA0320P30F-22-TS2 InGaAs area image sensor 320x256  30x30  30  9.6x7.68  1100-1900 nm 346 fps Kovar 2-stage-TE-Cooled 7 FPA0320P30F-22-TS2a InGaAs area image sensor 320x256  30x30  30  9.6x7.68  1200-2200 nm 346 fps Kovar 2-stage-TE-Cooled

No. Part no. Data Sheet photo Product Name Number of Effective Pixels Pixel Size (μm) Pixel Pitch (μm) Image Size (mm) Spectral Response Range Frame Rate Package Cooling 1 FPA0320P30F-17V-C InGaAs area image sensor 320x256  30x30  30  9.6x7.68  900-1700 nm 346 fps CLCC Un-Cooled 2 FPA0320P30F-17-C InGaAs area image sensor 320x256  30x30  30  9.6x7.68  900-1700 nm 346 fps CLCC Un-Cooled 3 FPA0320P30F-17-T1 InGaAs area image sensor 320x256  30x30  30  9.6x7.68  900-1700 nm 346 fps Kovar 1-stage-TE-Cooled 4 FPA0320P30F-17-T2 InGaAs area image sensor 320x256  30x30  30  9.6x7.68  900-1700 nm 346 fps Kovar 2-stage-TE-Cooled 5 FPA0320P30F-19-TS2 InGaAs area image sensor 320x256  30x30  30  9.6x7.68  1100-1900 nm 346 fps Kovar 2-stage-TE-Cooled 6 FPA0320P30F-22-TS2 InGaAs area image sensor 320x256  30x30  30  9.6x7.68  1200-2200 nm 346 fps Kovar 2-stage-TE-Cooled 7 FPA0320P30F-22-TS2a InGaAs area image sensor 320x256  30x30  30  9.6x7.68  1200-2200 nm 346 fps Kovar 2-stage-TE-Cooled

No. Part no. Data Sheet photo Product Name Photosensitive areas Spectral Response Range Peak sensitivity wavelength Breakdown voltage(Min-Max) Cutoff frequency (typ.) Terminal capacitance (typ.) Package  1 APD0200-17-D InGaAs APD φ0.2mm 950-1650nm 1550nm 35-55V 900MHz 2.5pF Bare Chip 2 APD0200-17-T0 InGaAs APD φ0.2mm 950-1650nm 1550nm 35-55V 1000MHz 2.5pF TO46 3 APD0200-17-T1 InGaAs APD φ0.2mm 950-1650nm 1550nm 35-55V 1000MHz 3pF TO46

No. Part no. Data Sheet photo Product Name Number of Effective Pixels Pixel Size (μm) Pixel Pitch (μm) Image Size (mm) Spectral Response Range Frame Rate Package Cooling 1 FPA0320P30F-17V-C InGaAs area image sensor 320x256  30x30  30  9.6x7.68  900-1700 nm 346 fps CLCC Un-Cooled 2 FPA0320P30F-17-C InGaAs area image sensor 320x256  30x30  30  9.6x7.68  900-1700 nm 346 fps CLCC Un-Cooled 3 FPA0320P30F-17-T1 InGaAs area image sensor 320x256  30x30  30  9.6x7.68  900-1700 nm 346 fps Kovar 1-stage-TE-Cooled 4 FPA0320P30F-17-T2 InGaAs area image sensor 320x256  30x30  30  9.6x7.68  900-1700 nm 346 fps Kovar 2-stage-TE-Cooled 5 FPA0320P30F-19-TS2 InGaAs area image sensor 320x256  30x30  30  9.6x7.68  1100-1900 nm 346 fps Kovar 2-stage-TE-Cooled 6 FPA0320P30F-22-TS2 InGaAs area image sensor 320x256  30x30  30  9.6x7.68  1200-2200 nm 346 fps Kovar 2-stage-TE-Cooled 7 FPA0320P30F-22-TS2a InGaAs area image sensor 320x256  30x30  30  9.6x7.68  1200-2200 nm 346 fps Kovar 2-stage-TE-Cooled

No. Part no. Data Sheet photo Product Name Number of Effective Pixels Pixel Size (μm) Pixel Pitch (μm) Image Size (mm) Spectral Response Range Frame Rate Package Cooling 1 FPA0320P30F-17V-C InGaAs area image sensor 320x256  30x30  30  9.6x7.68  900-1700 nm 346 fps CLCC Un-Cooled 2 FPA0320P30F-17-C InGaAs area image sensor 320x256  30x30  30  9.6x7.68  900-1700 nm 346 fps CLCC Un-Cooled 3 FPA0320P30F-17-T1 InGaAs area image sensor 320x256  30x30  30  9.6x7.68  900-1700 nm 346 fps Kovar 1-stage-TE-Cooled 4 FPA0320P30F-17-T2 InGaAs area image sensor 320x256  30x30  30  9.6x7.68  900-1700 nm 346 fps Kovar 2-stage-TE-Cooled 5 FPA0320P30F-19-TS2 InGaAs area image sensor 320x256  30x30  30  9.6x7.68  1100-1900 nm 346 fps Kovar 2-stage-TE-Cooled 6 FPA0320P30F-22-TS2 InGaAs area image sensor 320x256  30x30  30  9.6x7.68  1100-1900 nm 346 fps Kovar 2-stage-TE-Cooled 7 FPA0320P30F-22-TS2a InGaAs area image sensor 320x256  30x30  30  9.6x7.68  1200-2200 nm 346 fps Kovar 2-stage-TE-Cooled
