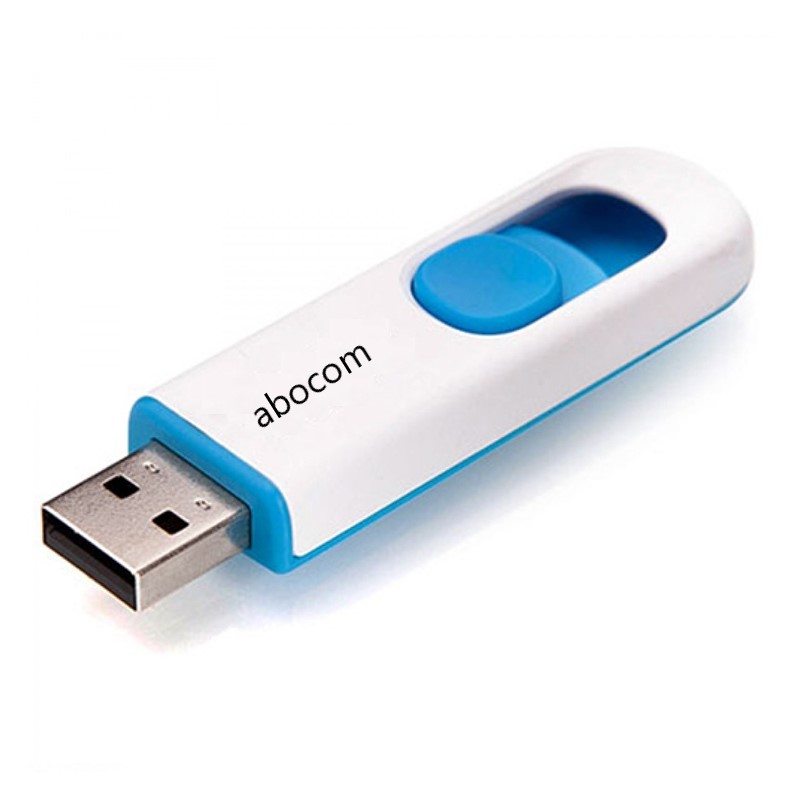

容量 4GB/ 8GB/ 16GB/ 32GB/ 64GB 顏色 藍色/ 紅色 尺寸 (L x W x H) 60 x 20 x 9mm (L x W x H) 重量 10公克 介面 USB 2.0 效能 N/A 支援作業系統 Windows XP, Vista, 7, 8, 8.1, 10, Mac OS 9.X and Linux™: Kernel 2.4 or higher, with no device driver needed 備註 實際效能可能因平台及應用工具而有所不同。 請注意：快閃儲存裝置上所列出容量有部分用於格式化和其他功能，並非全部用於資料儲存。因此，實際可用儲存容量會略低於產品所列之容量。 保固 終身保固

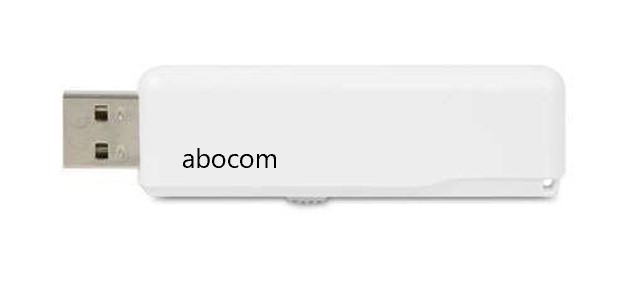

容量 8GB/ 16GB / 32GB 顏色 藍色/ 白色 尺寸 (L x W x H) 69 x 22 x 9mm (L x W x H) 重量 11公克 介面 USB 2.0 效能 N/A 支援作業系統 Windows XP, Vista, 7, 8, 8.1, 10, Mac OS 9.X and Linux™: Kernel 2.4 or higher, with no device driver needed 備註 實際效能可能因平台及應用工具而有所不同。 請注意：快閃儲存裝置上所列出容量有部分用於格式化和其他功能，並非全部用於資料儲存。因此，實際可用儲存容量會略低於產品所列之容量。 保固 終身保固

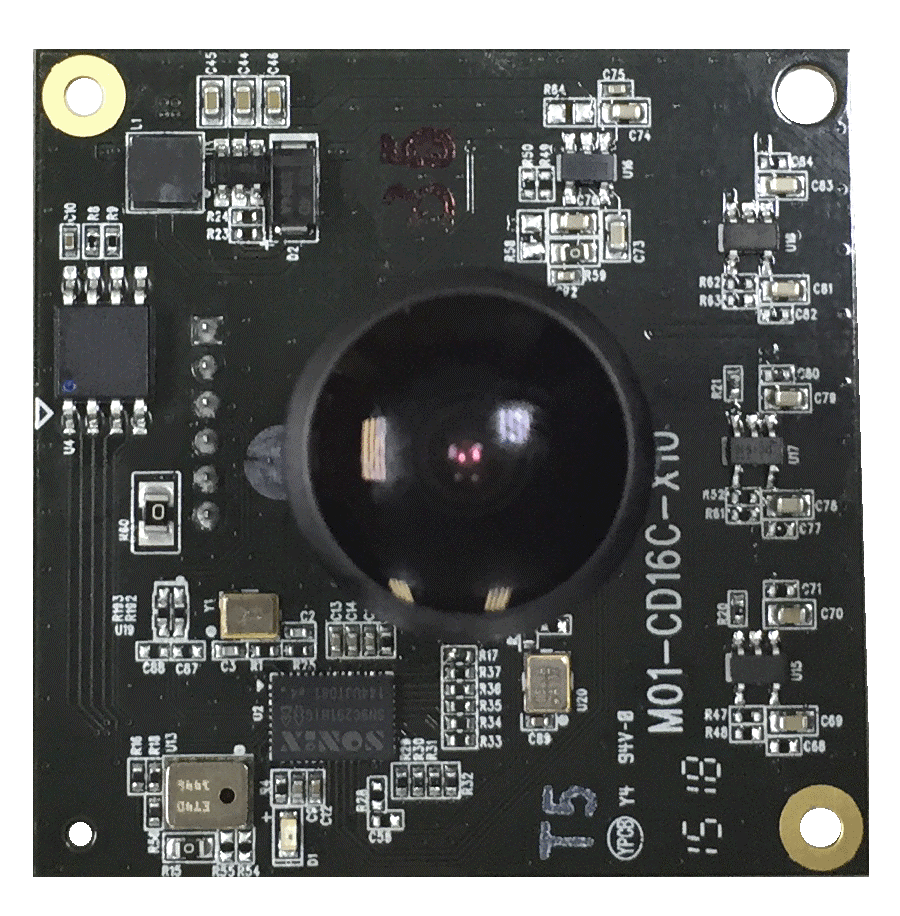

1. General Description      The “CD16C” is a high quality 1.0 Megapixel resolution camera module. It is especially designed for IP CAM、Web Cam. “CD16C” has built-in 10b parallel interface. “CD16C” provides high quality video streaming, transferring up 30 frame rate per second (fps) at HD(720P).   2. Major Features   2.1 10bit Parallel interface support            。10-bit RAW RGB data            。Built-in JPEG encoder to support USB Video Class MJPEG payload            。Built-in H.264 encoder support USB Video Class   2.2 Supported maximum readout            。- HD 720p (1280x720): 30 fps            。- VGA (640x480): 30 fps            。- QVGA (320x240): 30 fps   2.3 Image quality control            。- automatic exposure control (AEC)            。- automatic gain control (AGC)            。- automatic white balance (AWB)            。- automatic black level calibration (ABLC)     3. Key Specifications   3.1 Normal define   Specifications     Description Module Size (LWH/mm) 45mm× 45mm × 24.06mm(MAX) Temperature (Operation) 0°Cto 45°C Focus 1.5Meter~∞ Types of iris control Fixed iris Resolution 1.0Mp Interface USB Power 3.3V Minimum Illumination 0.1 Lux   3.2 Sensor Specification   Specifications     Description Sensor Type SONY_IMX-225 (HD CMOS Image Sensor 1/3” format) Active Array Size  1280x960 Pixel Size 3.75μm x 3.75μm       3.3Lens Specification   Specifications   Description Lens Construction  6G+IR F/No 2.0 EFL 2.8mm Maximum FOV 101(horizontal)             4. Platforms Supported   Supported Operating Systems Microsoft Windows XP 32bit SP2, Microsoft Windows XP 64bit, Microsoft Windows Vista 32/64 bit, Microsoft Window 7 32/64 bit. For Win7, it’s fully compatible with system built-in h.264 decoder and Linux support UVC after kernel 2.6.26

Features   ■IEEE 1901 compatible ■HomePlug AV (2.0) compatible ■Integrated with wireless and powerline networks ■Supports data rates up to 300Mbps for wireless 11n networks     Specifications 　 Powerline Features Compliant with IEEE 1901 with data transfer rate of up to 500MbpsCompatible with HomePlug AV standardMax. range up to 300 metersPowerline: 128-bit AES encryption Frequency Band(PLC) 2 MHz-68MHz Wireless Features 64/128 bit WEP, WPA-PSK/WPA2-PSK802.11 b/g/n compliant with data transfer rates of up to 300MbpsTransmit Power: 17dBm +/- 2dBm PLC Modulation Types OFDM: ROBO,BPSK, QPSK, 4096/1024/256/64/16/8-QAM 64QAM Wireless Modulation Types OFDM: BPSK, QPSK, 16QAM, 64QAMDSSS: DBPSK, DQPSK, CCK(11b) Ethernet interface two 10/100 Mbps RJ45 LED Power on/offWireless/WPS activity/on/offPowerline networkEthernet 1 link/activityEthernet 2 link/activity Button Power on/off buttonWPS buttonEncrypt/Reset button Power rating 100-240 V AC, 50/60 Hz Power consumption Full operation: 8 watt max. Off mode: <0.5W. Environment Operating Environment Temperature: 0°C to 40°C Humidity: 10% to 90% (Non-condensing)Storage Environment Temperature: -30°C to 70°C Humidity: 10% to 95% (Non-condensing)

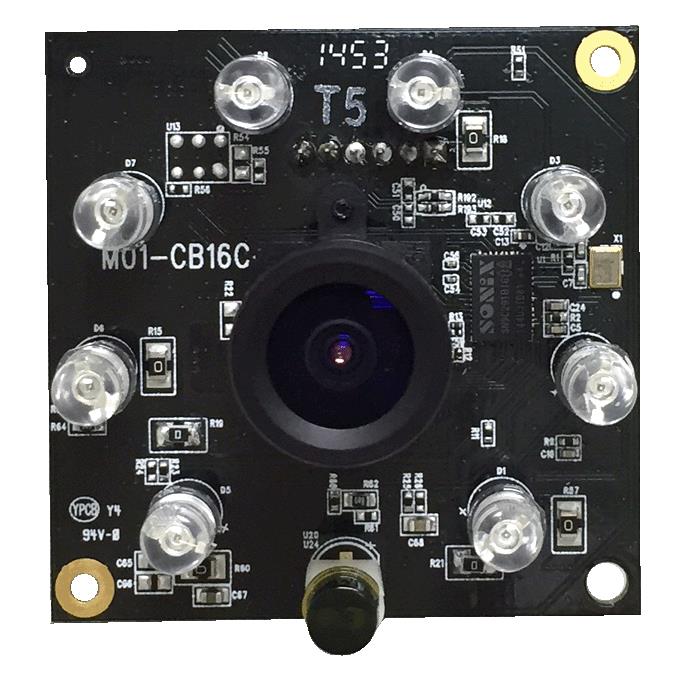

1. General Description      The “CB16C” is a high quality 1.0 Megapixel resolution camera module. It is especially designed for IP CAM、Web Cam. “CB16C” has built-in 10b parallel interface. “CB16C” provides high quality video streaming, transferring up 30 frame rate per second (fps) at HD(720P).   2. Major Features   2.1 10bit Parallel interface support            。10-bit RAW RGB data            。Built-in JPEG encoder to support USB Video Class MJPEG payload            。Built-in H.264 encoder support USB Video Class   2.2 Supported maximum readout            。- HD 720p (1280x720): 30 fps            。- VGA (640x480): 30 fps            。- QVGA (320x240): 30 fps   2.3 Image quality control            。- automatic exposure control (AEC)            。- automatic gain control (AGC)            。- automatic white balance (AWB)            。- automatic black level calibration (ABLC)   3. Key Specifications   3.1 Normal define   Specifications     Description Module Size (LWH/mm) 45mm × 45mm × 25.2mm(MAX) Temperature (Operation) 0°C to 45°C Focus 1Meter~∞ Types of iris control Fixed iris Resolution 1.0Mp Interface USB Power VCC – (3.3V) IR Illuminators IR LED*8/ effective up to 6 meters   3.2 Sensor Specification   Specifications     Description Sensor Type SOI_JX-H22 (HD CMOS Image Sensor 1/4” format) Active Array Size  1296x816 Pixel Size 3μm x 3μm Maximum Image Transfer Rate up to 30 fps @720P AGC/AEC/Whiter balance Auto Output Image Formats 10-bit RAW RGB data   3.3Lens Specification   Specifications   Description Lens Construction  5G+IRF(6E) F/No 1.8 ± 5% EFL 3.3mm ± 5% Maximum FOV 85°± 3° TV Distortion <-12.64%  Relative Illumination (Sensor) > 67.6%    4. Platforms Supported   Supported Operating Systems Microsoft Windows XP 32bit SP2, Microsoft Windows XP 64bit, Microsoft Windows Vista 32/64 bit, Microsoft Window 7 32/64 bit. For Win7, it’s fully compatible with system built-in h.264 decoder and Linux support UVC after kernel 2.6.26

Description   The AU7511 AC dongle delivers next generation WiFi speeds and enables multiple HD video streams throughout your home simultaneously. It is compatible with next generation WiFi devices and backward compatible with 802.11 n +AC devices. With up to 150/ 433 Mbps speed technology, It easy to use with both laptops and desktops.   Features   ■802.11acsolution for 5Ghz band ■1*1 technology for extended reception robustness and exceptional throughput. ■Backward compatible with 802.11a/an devices while operating at 802.11ac data rates.     ■SPECIFICATION Chipset –RTL8811AU Host Interface Complies with USB Revision 2.0 Radio Antenna PIFA  Antennas Operating 5.15 - 5.35 GHz, 5.47 – 5.7 GHz Data Rate 802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11ac: up to 433Mbps Modulation 802.11a: OFDM(BPSK, QPSK, 16-QAM, 64-QAM) 802.11ac: OFDM(BPSK, QPSK, 16-QAM, 64-QAM,256-QAM) Transmit Power 802.11a: 11 +/-1.5dBm@54Mbps 802.11an HT20: 11+/-1.5dBm@MCS7 802.11an HT40: 11+/-1.5dBm@MCS7 802.11acHT20: 11+/-1.5dBm@MCS8 802.11acHT40: 11+/-1.5dBm@MCS9 802.11acHT80: 11+/-1.5dBm@MCS9 Receive Sensitivity 802.11a:-65dBm+/-2dBm@54Mbps 802.11ac: -57dBm+/-2dBm@HT20 MCS8 802.11ac: -54dBm+/-2dBm@HT40 MCS9 802.11ac: -51dBm+/-2dBm@HT80 MCS9 Power Consumption Standby: 100mA / 5V (Max) Full load: 400mA / 5V (Max) Environmental Operating 0~400C. 20% to 90% Non-Condensing Storage -30 ~ 700C. 20% to 95% Non-Condensing Operating Voltage 5V +/-5% Physical Specification Dimensions/ Weight 16(W)*18.8(H)*7.3(D) mm / 2 g

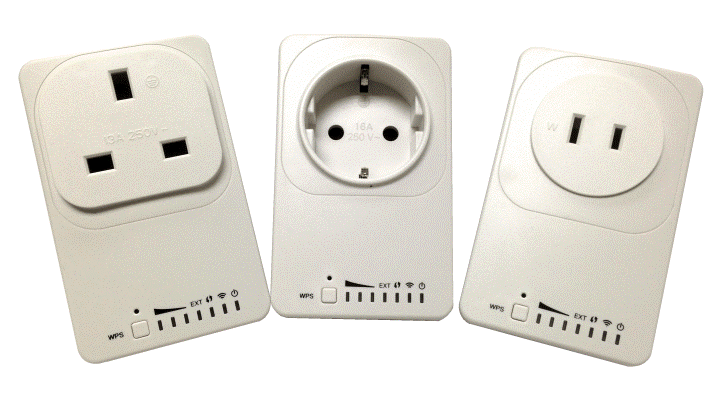

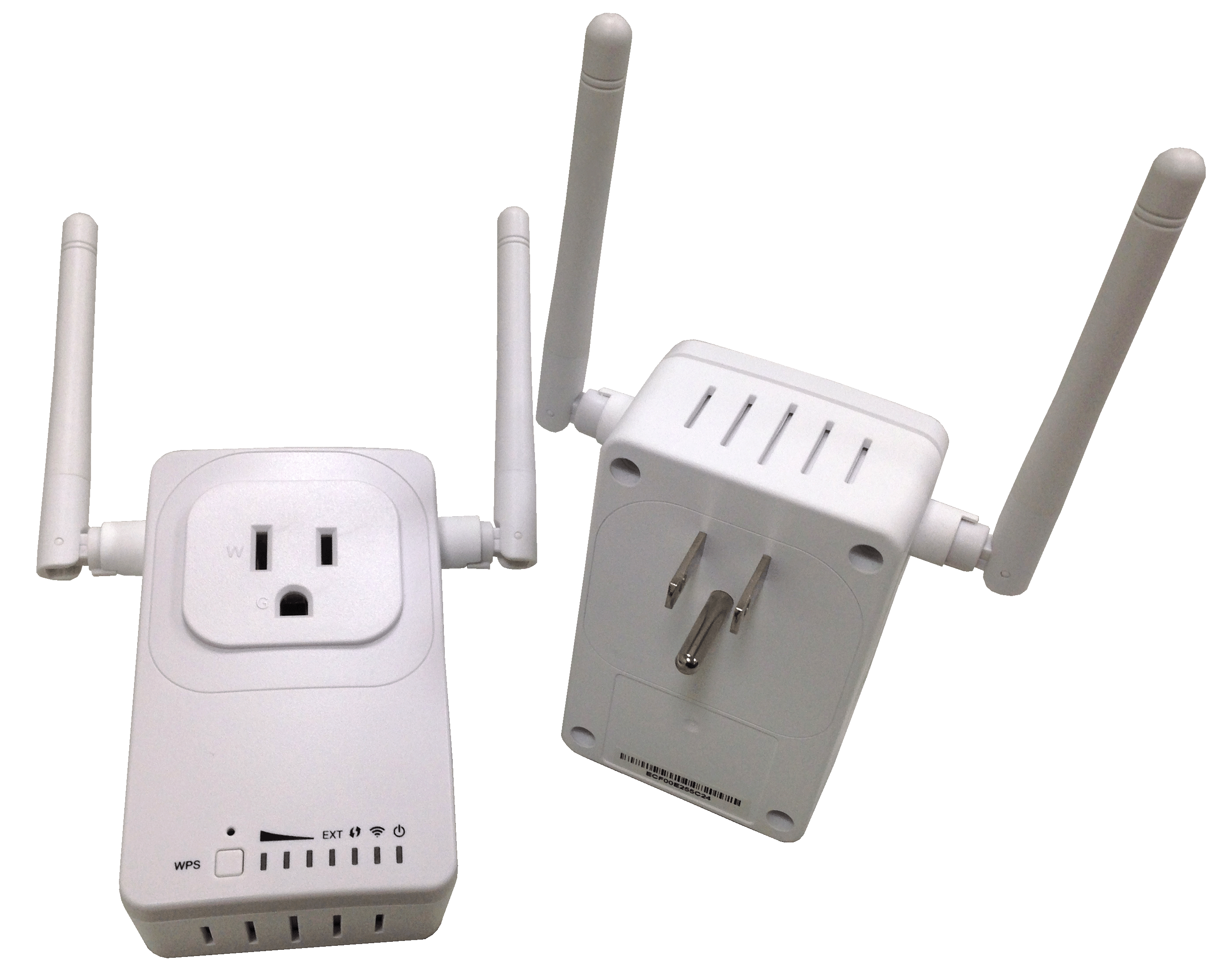

Description   WiFi Smart Extender Plug gives you wireless control of your home appliances and electronics, scheduling power ON/OFF control by internal Relay. The Wi-Fi Extender expands the range of any 802.11b/g/n wireless network by repeating the signal from a wireless router and redistributing it in a new "extended"   Features   ■  WiFi 11n/b/g 300Mbps Range Extender ■Smart phone Apps (Android) access and track energy usage ■Energy management monitoring (kw/h)  ■Web application provides remote access Smart plug is Secured & easy Set up ■Zero-Crossing cut (Cut off the relay at the point of zero-crossing.) ■16AOver current protection (Cut-off the relay when the current is over the threshold.)     SPECIFICATION Chipset MT7620A Host Interface AC  Plug  ( UK / EU / US Type ) FLASH 8  Mb DDR2 64Mb Radio Antenna 2 PCS of chip antennas Operating 2.412 - 2.484GHz(Subject to Local Regulations) Data Rate 802.11b: 1, 2, 5.5, 11Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11n: up to 300Mbps Modulation 802.11b: DSSS(DBPSK, DQPSK, CCK) 802.11g: OFDM(BPSK, QPSK, 16-QAM, 64-QAM) 802.11n: OFDM(BPSK, QPSK, 16-QAM, 64-QAM) Transmit Power 802.11b: 17+/-1.5dBm@11Mbps 802.11gn HT20: 14+/-1.5dBm@MCS7 802.11gn HT40: 14+/-1.5dBm@MCS7 802.11n HT20: 14+/-1.5dBm@MCS7 802.11n HT20: 14+/-1.5dBm@MCS7 Receive Sensitivity 11n: ≦-70 dBm typical with 20MHz ≦-68 dBm typical with 40MHz 11g: ≦-73 dBm typical @ 54Mbps 11b: ≦-84 dBm typical @ 11Mbp Power Consumption 3W Environmental Operating 0~400C. 10% to 90% Non-Condensing Storage -30 ~ 700C. 10% to 95% Non-Condensing Operating Voltage 110~220 V Physical Specification Dimension ( included  AC plug) UKType 58.9(W)*94.5(D) *71.8(H)+-0.2 mm EU Type 58.9(W)*94.5(D) *77.5(H)+-0.2 mm US Type 58.9(W)*94.5(D) *56.9(H)+-0.2 mm

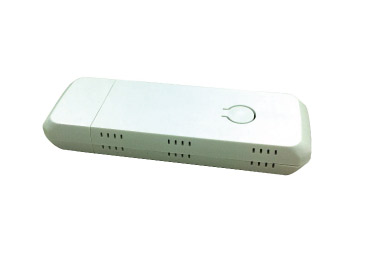

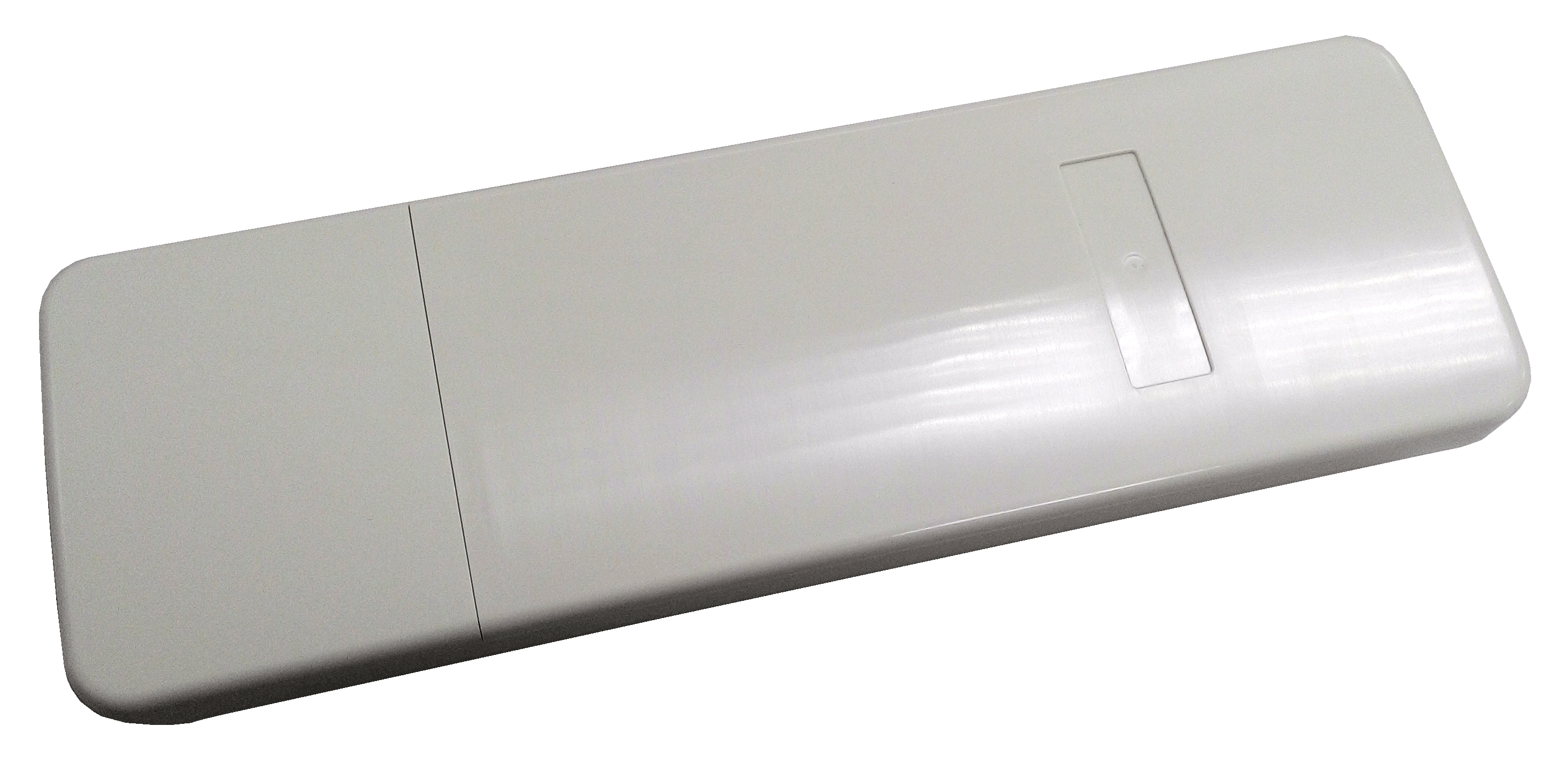

The AU7520 AC dongle delivers next generation WiFi speeds and enables multiple HD video streams throughput your home simultaneously. It is compatible with next generation WiFi devices and backward compatible with 802.11 b/g/n  +AC devices. With up to 300/867 Mbps speed and dual band technology, it is easy to use with both laptops and desktops. Moreover, the Dual Band reduces interference for enhanced connections to more WiFi devices. The AU7520 AC dongle is ideal for upgrading your exiting laptop or desktop to 802.11ac.       • 802.11ac MIMO solution for 5G band • Complete 802.11n MIMO solution for 2.4GHz and 5GHz band • 2*2 MIMO technology foe extended receiption robustness and exceptional throughput • Maximum PHY data rate up to 173.3Mbps using 20MHz bandwidth, 400Mbps using 40MHz bandwidth and 866.7Mbps using 80MHz bandwidth. • Backward compatible with 802.11a/b/g devices while opreating at 802.11n data rates • Backward compatible with 802.11a/n devices while opreating at 802.11ac data rates • IEEE802.11a/b/g/n/ac Draft 2.0 compatible WLAN • IEEE802.11e QoS Enhancement(WMM) • IEEE802.11i(WPA,WPA2). Open, shared key,and pair-wise key authentication services • IEEE802.11h TPC, Spectrum Measurement • IEEE802.11k (Wireless Authentication Privacy Infrastructure) certified

容量 8GB / 16GB / 32GB 顏色 香檳金 尺寸 (L x W x H) 44.2 x 16.85 x 8mm (L x W x H) 重量 8公克 介面 USB 2.0 效能 N/A 支援作業系統 Windows XP, Vista, 7, 8, 8.1, 10, Mac OS 9.X and Linux™: Kernel 2.4 or higher, with no device driver needed 備註 實際效能可能因平台及應用工具而有所不同。 請注意：快閃儲存裝置上所列出容量有部分用於格式化和其他功能，並非全部用於資料儲存。因此，實際可用儲存容量會略低於產品所列之容量。 保固 終生保固

容量 16GB/32GB/64GB 顏色 質感黑、知性藍 尺寸 (長 x 寬 x 高) 55 x 22.1 x 9.5mm 重量 9.9g 介面 USB 2.0 支援作業系統 Windows XP, Vista, 7, 8, 10, Mac OS 10.10與Linux Fedora 15或更高等級, 無需其他裝置之驅動程式 保固 終身保固 備註 實際效能可能因平台及應用工具而有所不同。 *請注意：快閃儲存裝置上所列出容量有部分用於格式化和其他功能，並非全部用於資料儲存。因此，實際可用儲存容量會略低於產品所列之容量。

容量 16GB/ 32GB/ 64GB/ 128GB 顏色 藍色/ 黃色 尺寸 (L x W x H) 60 x 20 x 9mm (L x W x H) 重量 10公克 介面 USB 3.1 (可向下相容於USB 2.0) 效能 N/A 支援作業系統 Windows XP, Vista, 7, 8, 8.1, 10, Mac OS 9.X and Linux™: Kernel 2.4 or higher, with no device driver needed 備註 實際效能可能因平台及應用工具而有所不同。 請注意：快閃儲存裝置上所列出容量有部分用於格式化和其他功能，並非全部用於資料儲存。因此，實際可用儲存容量會略低於產品所列之容量。 保固 終身保固

容量 16GB/32GB/64GB/128GB 顏色 質感黑、活力紅 尺寸 (長 x 寬 x 高) 55 x 22.1 x 9.5mm 重量 9.9g 介面 USB 3.1 支援作業系統 Windows XP, Vista, 7, 8, 10, Mac OS 10.10與Linux Fedora 15 或更高等級, 無需其他裝置之驅動程式 保固 終身保固 備註 實際效能可能因平台及應用工具而有所不同。 *請注意：快閃儲存裝置上所列出容量有部分用於格式化和其他功能，並非全部用於資料儲存。因此，實際可用儲存容量會略低於產品所列之容量。

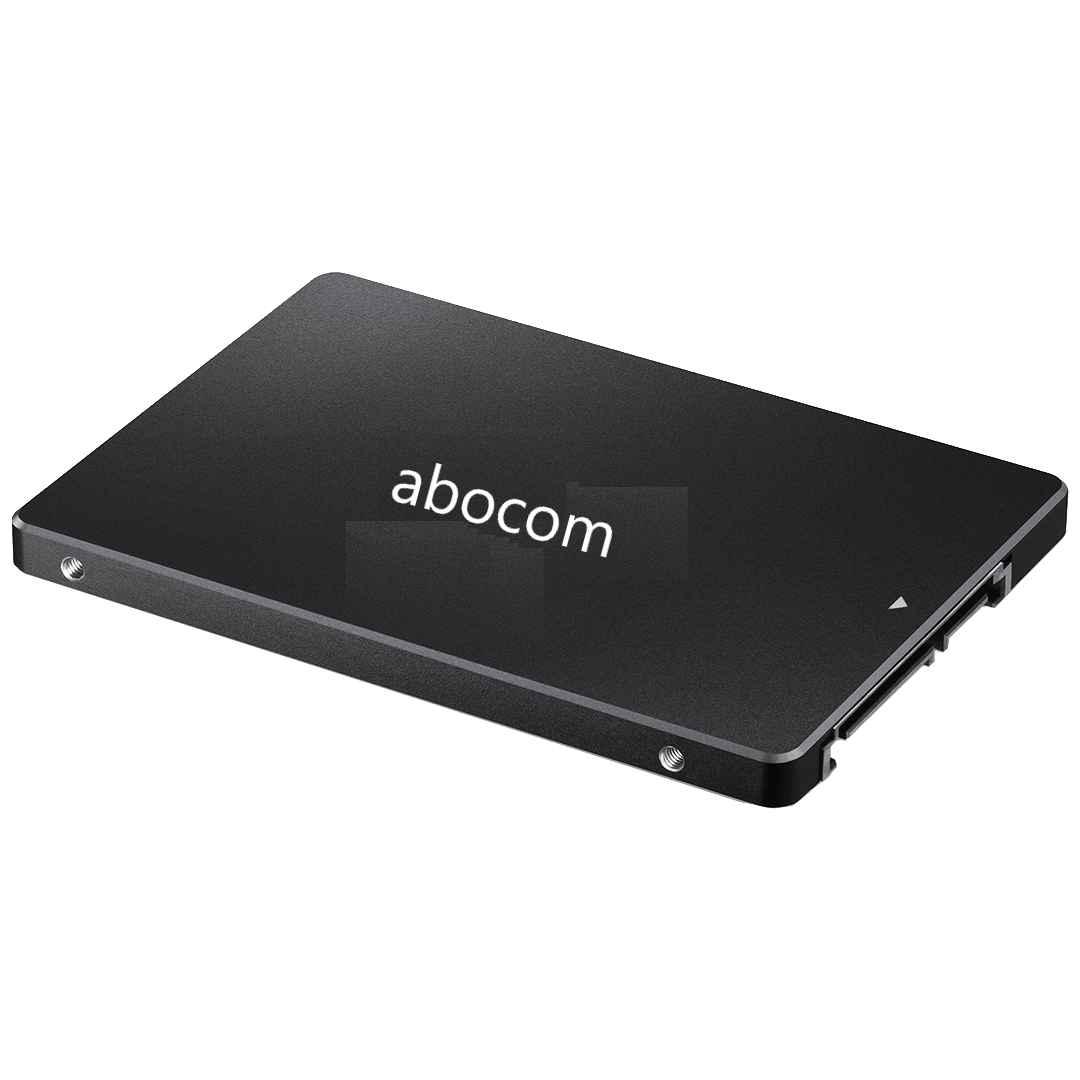

容量 128GB - 2TB 外觀尺寸 2.5" NAND 型快閃記憶體 3D TLC 控制晶片 SMI 尺寸 (長 x 寬 x 高) 100.45 x 69.85 x 7mm 重量 47.5g 介面 SATA 6Gb/秒 最高連續讀寫效能(最大值) 高達560/520MB/s *傳輸速度會依 SSD 容量、測試平台的硬體、測試軟體及作業系統的不同而有所差異 作業溫度 0°C-70°C 儲存溫度 -40°C-85°C 防震 1500G/0.5ms MTBF 2,000,000 小時 保固 三年

容量 128GB , 256GB , 512GB , 1TB , 2TB 外觀尺寸 2.5" 快閃記憶體 3D MLC 控制晶片 SMI 2258 尺寸 (長 x 寬 x 高) 100.45 x 69.85 x 7mm 重量 47.5g 介面 SATA 6Gb/秒 最高連續讀寫效能(最大值) 高達560/525MB/s *傳輸速度會依 SSD 容量、測試平台的硬體、測試軟體及作業系統的不同而有所差異 作業溫度 0°C-70°C 儲存溫度 -40°C-85°C 防震 1500G/0.5ms MTBF 2,000,000小時 保固 三年

容量 60GB / 120GB / 240GB / 480GB / 960GB 外觀尺寸 2.5" NAND 型快閃記憶體 3D NAND 尺寸 (長 x 寬 x 高) 100.45 x 69.85 x 7mm 重量 47.5g 介面 SATA 6Gb/秒 最高連續讀寫效能(最大值) 高達 520 / 450MB/s * 傳輸速度會依 SSD 容量、測試平台的硬體、測試軟體及作業系統的不同而有所差異 作業溫度 0°C ~ 70°C 儲存溫度 -40°C ~ 85°C 防震 1500G / 0.5ms MTBF 2,000,000小時 保固 三年

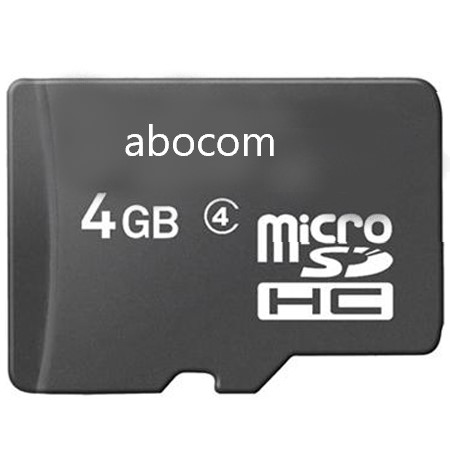

容量 4GB/ 8GB/ 16GB/ 32GB 規格介面 SDA 2.0 尺寸 (L x W x H) 15 x 11 x 1.0mm (W x H x D) 重量 0.25g 電壓 2.7V~3.6V 效能 Speed (read) : 10~14 (MB/s)** Speed (write) : 6~8 (MB/s)** 認證單位 FCC , CE , VCCI , CTICK , EAC 保固 Lifetime warranty 注意事項 ** 此數據為依據內部測試， 測試結果會依不同平台或軟體而有所不同。 速度 Speed Class : Class 6 適用裝置 mobile phone/ Smartphone/ Tablet 工作溫度 -25°C (-13°F) ~ 85°C (185°F)

容量 4GB/ 8GB/ 16GB/ 32GB 規格介面 SDA 2.0 尺寸 (L x W x H) 15 x 11 x 1.0mm (W x H x D) 重量 0.25g 電壓 2.7V~3.6V 效能 Speed (read) : 10~14 (MB/s)** Speed (write) : 4~5 (MB/s)** 認證單位 FCC , CE , VCCI , CTICK , EAC 保固 Lifetime warranty 注意事項 ** 此數據為依據內部測試， 測試結果會依不同平台或軟體而有所不同。 速度 Speed Class : Class 4 適用裝置 mobile phone/ Smartphone/ Tablet 工作溫度 -25°C (-13°F) ~ 85°C (185°F)
