產品設計圖 產品名稱. 管徑 (mm) 管厚 (mm) 材質 26B60 60 1.0 PA6 26B60-1 60 1.2~1.4 PA6

產品名稱. 管徑 (mm) 管塞厚度 (mm) 材質 　 OB1020 10x20 1.0 PA6 OB1225 10x25 1.0 PA6 OB1530 15x30 1.0 PA6 OB2040 20x40 1.0 PA6 OB2040-1 20x40 1.2 PA6 　 OB2060 20x60 1.0 PP 　 OB2550 25.4x50 1.0 PP 　 OB3060 28x58 1.0 PP 　 OB3060-1 30x60 1.0 PP 　 OB3070 30x70 1.4~1.5 PP 　

產品名稱. 管徑 (mm) 管塞厚度 (mm) 材質   OB1530-1 15x30 1.0 PA6 OB3060-2 30x60 1.0 PP OB3070-1 30x70 1.4-1.5 PP   OB4080 40x80 1.5 PP   OB4080-2 40x80 2.0 PP

產品名稱. 管徑 管厚 (mm) 材質 　 mm itch CA9 9 3/8" 1.0 PP CA12 12.7 1/2" 1.0 PP CA12-1 12.7 1/2" 1.0 PA6 CA13-1 13 　 1.0 PP CA15 15 5/8" 1.0 PA6 CA19 19 3/4" 1.0 PA6 CA22 22 7/8" 1.0 PA6 CA25 25 1" 1.0 PVC CA29 29 1-1/8" 1.0 PA6 CA29-1 29 1-1/8" 1.6 PA6 CA32 32 1-1/4" 1.0 PP CA32-2 32 1-1/4" 2.0 PP CA32-3 32 1-1/4" 3.0 PP CA35 35 1-3/8" 1.0 PA6 CA38 38 1-1/2" 1.0 PP CA42 42 　 1.0 PA6 CA48 48 　 1.0 PA6

產品名稱. 管徑 管厚 (mm) 材質   mm itch CW19 19 3/4" 1.0 PA6 CW22 22 7/8" 1.0 PA6   CW25 25 1" 1.0 PA6 CW32 32 1-1/4" 1.0 PA6   CW38 38 1-1/2" 1.0 PA6   CW50 50 2" 1.0 PA6   CW60 60 1.0 PA6   CW75 75 3" 1.0 PA6

產品名稱. 管徑 管厚 (mm) 材質 　 mm itch CF12 12 1/2" 1.0 PA6 CF15 15 5/8" 1.0 PA6 CF17 17 　 1.0 PA6 CF19 19 3/4" 1.0 PA6 CF21 21.3 　 1.0 PA6 CF22 22 7/8" 1.0 PA6 CF25 25 1 1.0 PA6 CF25-1 25 1 1.5 PA6 CF25-2 25 1 2.0 PA6 CF25-3 25 1 2.6 PA6 CF29 29 1-1/8" 1.0 PA6 CF29-1 29 1-1/8" 2.0 PA6 CF30 30 　 1.5 PA6 CF32 32 1-1/4" 1.0 PA6 CF35 35 1-3/8" 1.0 PA6 CF38-1 38 1-1/2" 1.0 PA6 CF40 40 　 1.0 PA6 CF45 45 1-3/4" 1.0 PP CF50 50 2" 1.0 PA6 CF60 60 　 1.0 PP CF75 75 3" 1.0 PP CF102 102 4" 1.0 PA6 CF102-1 102 4" 2.3 PA6

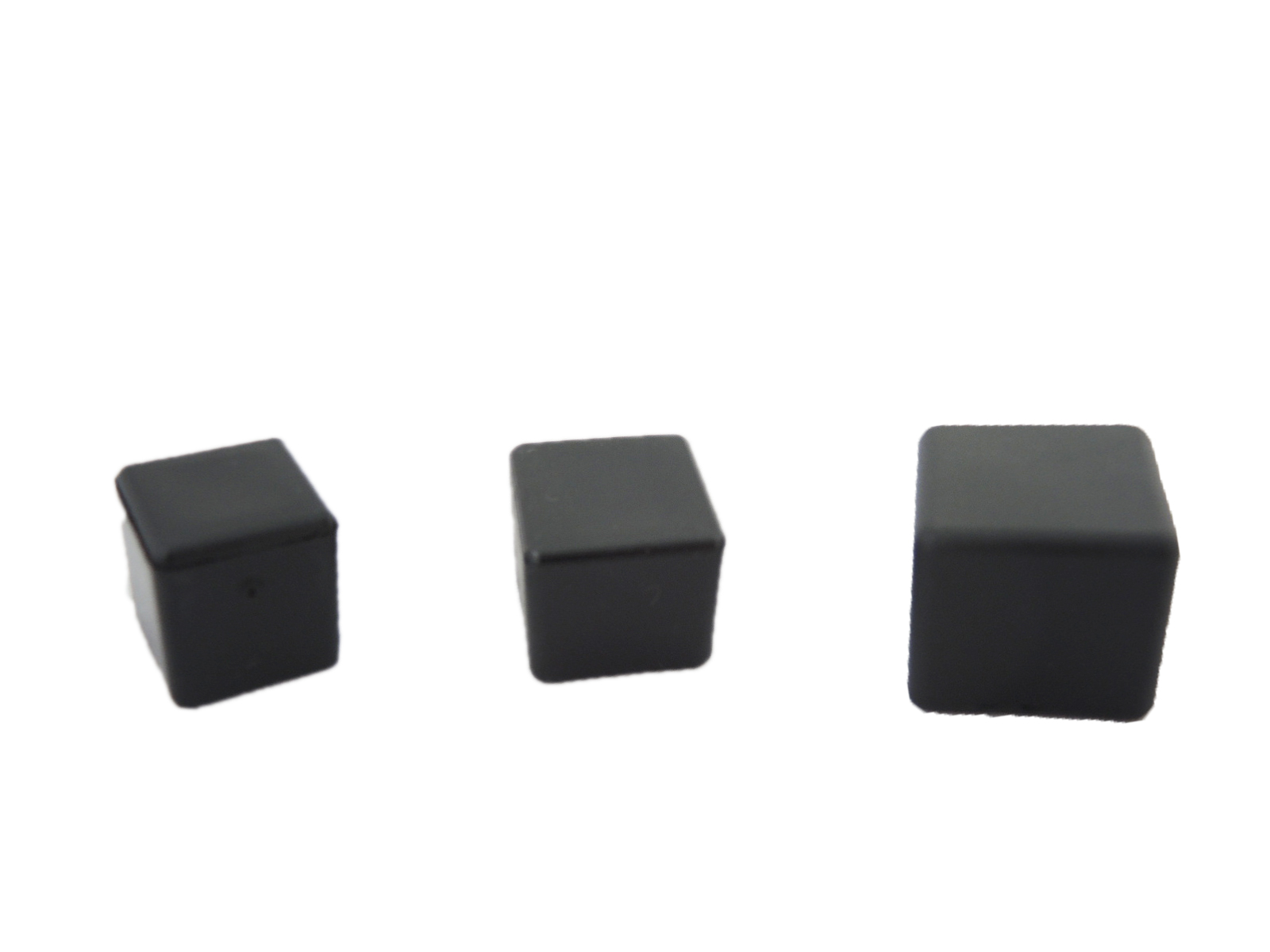

產品名稱. 管徑 (mm) 管厚 (mm) 材質 CO2020 20 x 20 27.5 PVC CO2525 25.4 x 25.4 17.5 PVC CO2525-1 25.4 x 25.4 26.0 PE CO3030 30 x 30 32.0 PVC

產品設計圖 產品名稱. 內徑(mm) 外徑(mm) 材質 CG12 12.7 19.0 PP CG19 19.0 29.0 PP CG19-1 19.0 31.0 PA6 CG22 22.2 29 PP

產品名稱. 管徑 (mm) 高度 (mm) 材質 　 CO3 3.0 11.5 PVC CO3.6 3.6 11.0 PVC CO4 4.0 11.5 PVC CO5 5.0 12.5 PVC CO6 6.0 14.0 PVC CO7 7.0 14.0 PVC CO8 8.0 14.0 PVC CO8-1 8.0 13.6 PE CO9 9.0 16.0 PVC CO10 10.0 14.0 PVC CO11.5 11.5 15.0 PVC 　 CO12 13.0 19.5 PVC CO12-1 13.0 19.5 PE CO12.7 12.7 19.5 PVC CO15 15.8 23.0 PVC CO19 19.0 26.5 PVC CO22 22.2 27.0 PVC CO25 25.4 29.0 PVC CO29 28.5 35.0 PVC CO32-1 31.7 32.0 PVC CO38-1 38.1 33.0 PVC CO50 50.0 27.5 PVC

產品名稱. 管徑 管厚 (mm) 材質 　 mm itch CB15 15.8 5/8" 1.0 PP CB17-1 17.1 　 1.5 PA6 CB19 19 3/4" 1.0 PA6 CB19-1 19 3/4" 2.3 PA6 CB22 22 7/8" 1.0 PA6 CB22-1 22 7/8" 1.5 PA6 CB25 25 1 1.0 PA6 CB25-2 25 1 2.0 PA6 CB25-3 25 1 1.6 PA6 CB29 29 1-1/8" 1.0 PP CB29-3 29 1-1/8" 1.6 PA6 CB32 32 1-1/4" 1.0 PA6 CB32-1 32 1-1/4" 1.5 ABS CB32-1N 32 1-1/4" 1.5 PA6 CB35 35 1-3/8" 1.0 PA6 CB38 38 1-1/2" 1.0 PA6 CB50 50 2 1.0 PP
