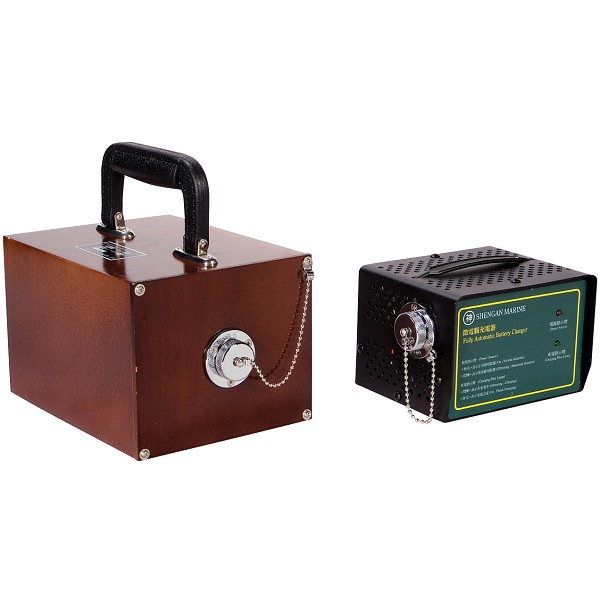

CHARGER & BATTERY MODULE CHARGER & BATTERY MODULE Body：Wood Specification：12V x 2 7000 mAh Weight：2.5 kg + 5.5kg In accordance with IMO Resolution MSC.95(72) requirements, battery set can operate portable daylight signal light more than 2 hours.

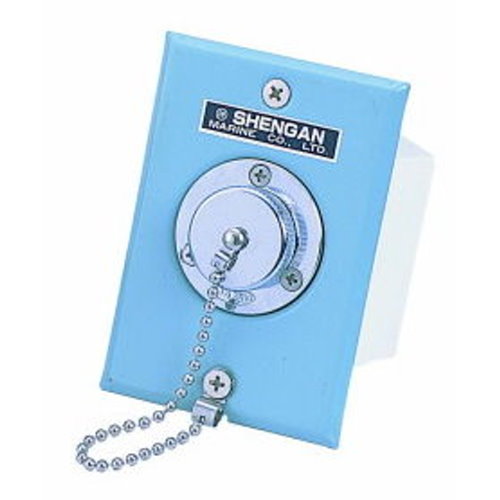

N.W.T. RECEPTACLE N.W.T. RECEPTACLE Body：Steel Plate Rated：250V 10A 4P、2P IP20 Weight：0.4 kg

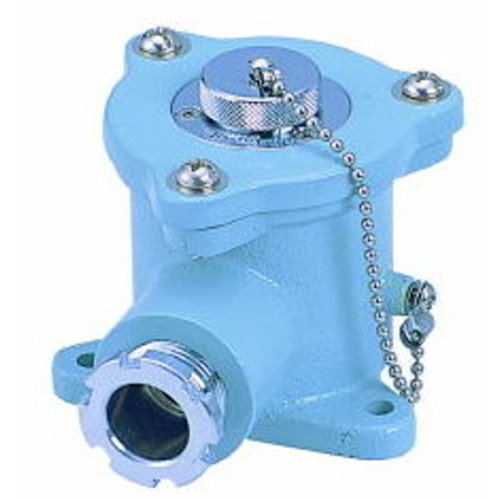

W.T. RECEPTACLE W.T. RECEPTACLE Body：Cast Brass Rated：250V 10A 4P、2P IP56 Weight：0.8 kg

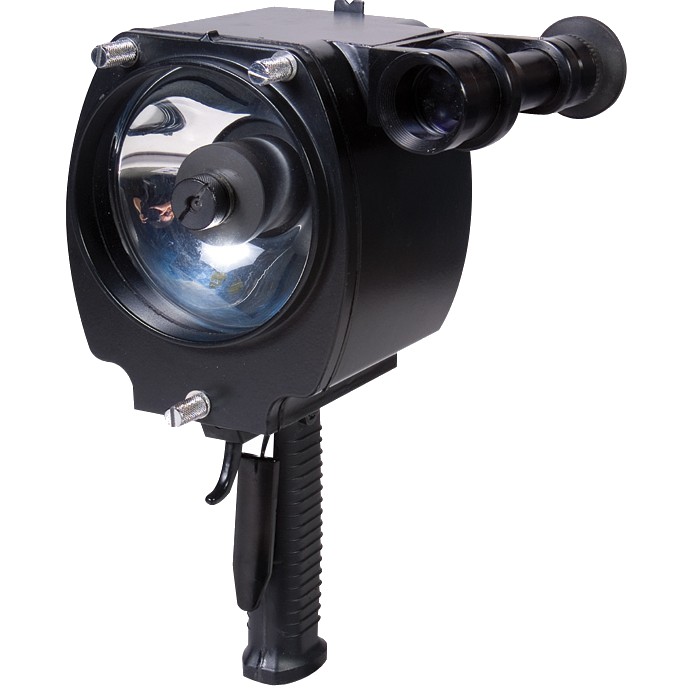

PORTABLE DAYLIGHT SIGNALLING LIGHT PORTABLE DAYLIGHT SIGNALLING LIGHT Body：Aluninum Alloy Lamp Cap：G6.35 Rated：12V 60W / 24V 60W With cable & Plug IP56 Weight：2.5 kg

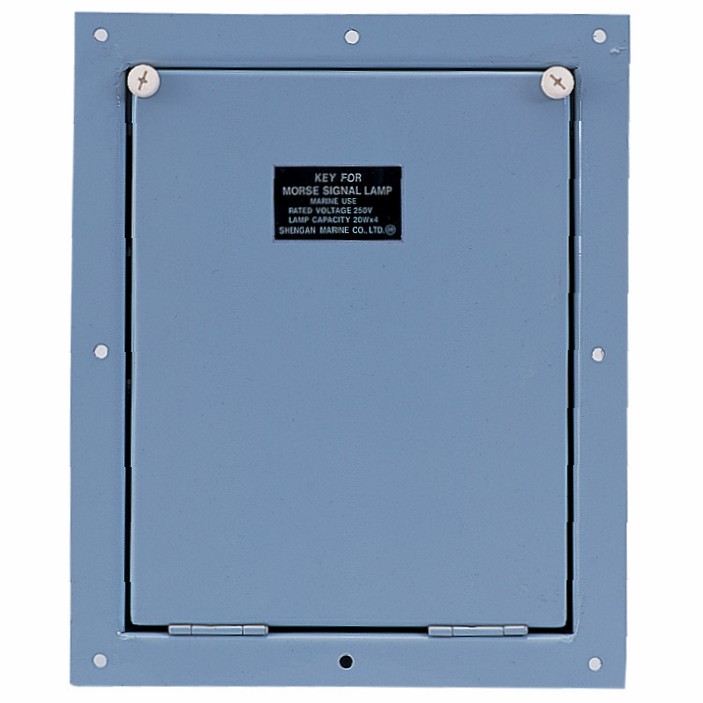

MORSE KEY MORSE KEY Body：Steel Plate AC250V 2A / 125V 4A IP20 Weight：2.4 kg
MORSE KEY MORSE KEY Body：Cast Brass AC250 2A / 125V 4A IP56 Weight：2.8 kg

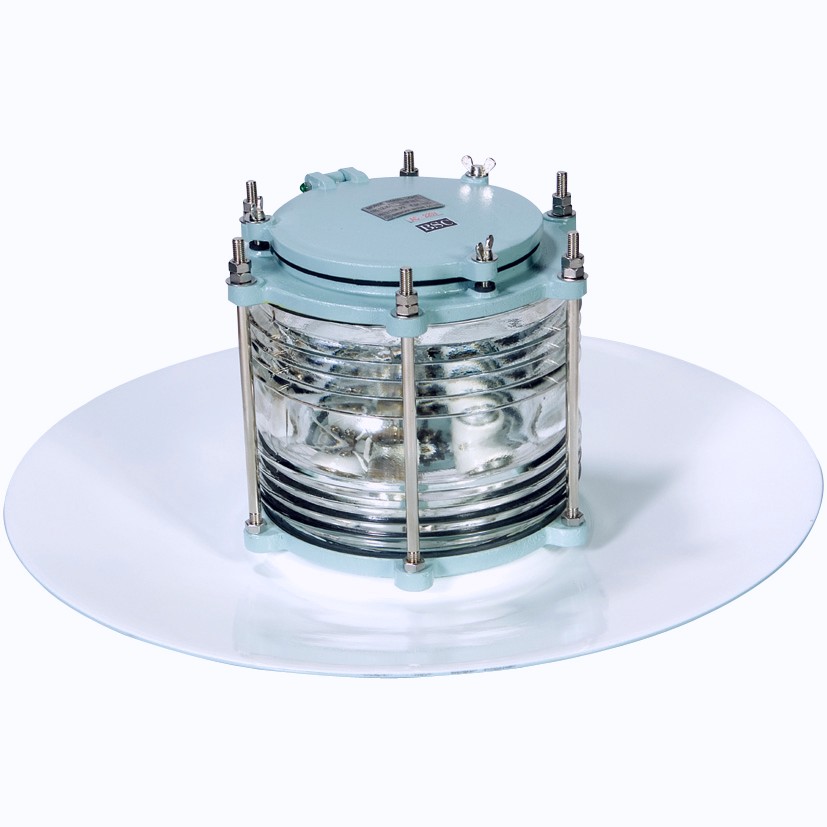

FOUR LAMP TYPE FOUR LAMP TYPE Body：Cast Brass Lamp Holder：FE-26 Lamp Capacity：20Wx4 Lens：Hardness Glass IP56 Weight：10.5 kg
THREE LAMP TYPE THREE LAMP TYPE Body：Cast Brass Lamp Holder：FE-26 Lamp Capacity：20Wx3 Lens：Hardness Glass IP56 Weight：10.5 kg

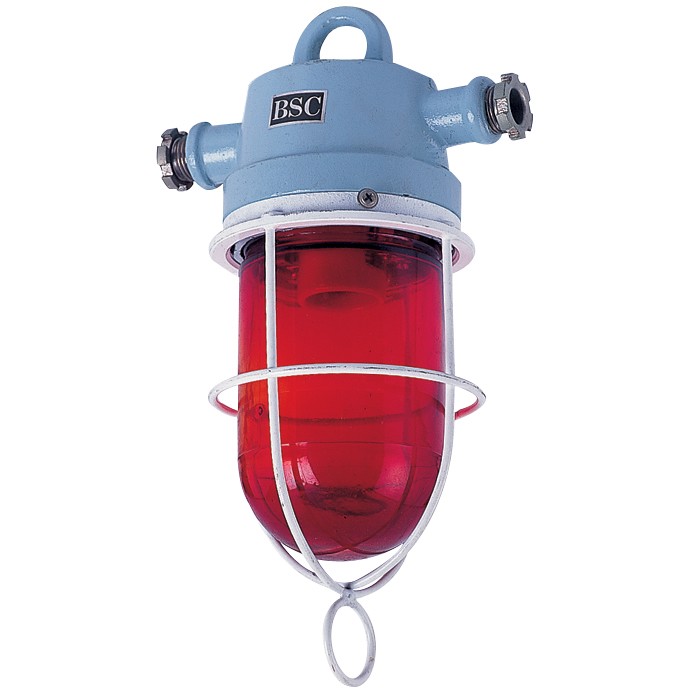

HANGING TYPE SIGNAL LIGHT HANGING TYPE SIGNAL LIGHT Body：Cast Brass Lamp Holder：FE-26 Lamp Capacity：40W.60W Globe：Glass S-90 Colour : Red , Clear , Green , Yellow IP56 Weight：2.2 kg

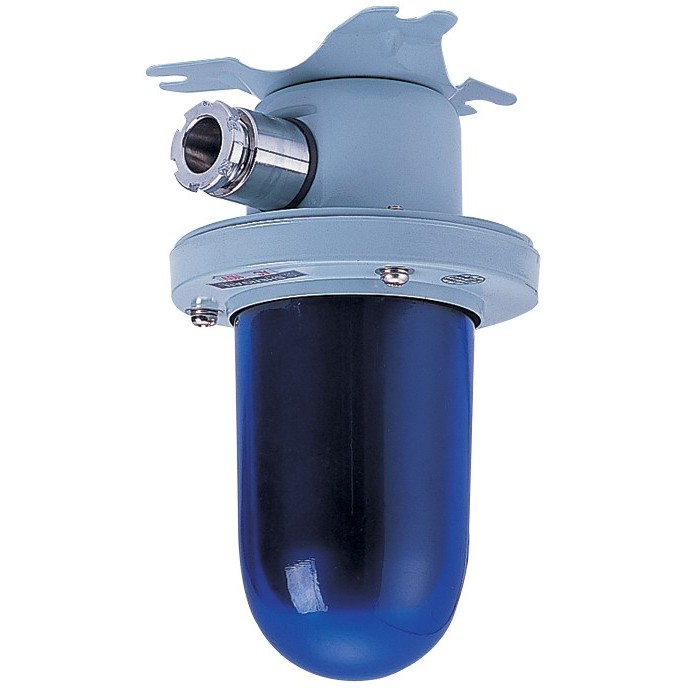

STEERING LIGHT STEERING LIGHT Body：Stainless Steel Lamp Holder：FE-26 Lamp Capacity：20W.25W.40W.60W Globe：Glass F-90 Blue Include Shade IP56 Weight：1.8 kg

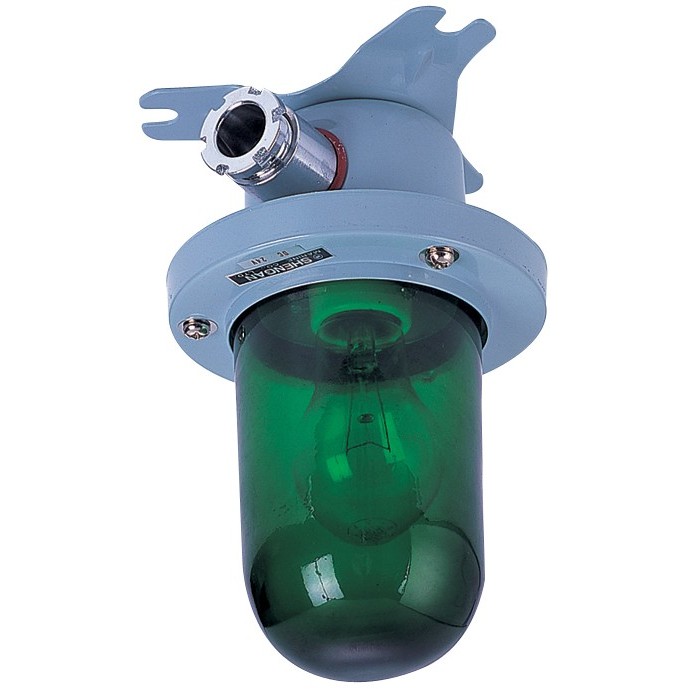

FIXED TYPE SIGNAL LIGHT FIXED TYPE SIGNAL LIGHT Body：Stainless Steel Lamp Holder：FE-26 Globe：Glass F-90 Lamp Capacity：40W.60W Colour : Red , Clear , Green , Yellow IP56 Weight：1.8 kg
DANGEROUS CARGO SIGNAL LIGHT NAME DANGEROUS CARGO SIGNAL LIGHT 危险货物灯 MODEL SLDC VISIBILITY RANGE (n.m.) 3 VISIBILITY SECTOR 360° LENS COLOR RED WEIGHT (kg) 1.97 BULBS TO BE USED DC24V / 40W AC110V / 60W AC220V / 65W FLASH 120~140/min
HUGE VESSEL SIGNAL LIGHT,URARA STRAIT SIGNAL LIGHT NAME HUGE VESSEL SIGNAL LIGHT 大船灯 URARA STRAIT SIGNAL LIGHT MODEL SLHV VISIBILITY RANGE (n.m.) 3 VISIBILITY SECTOR 360° LENS COLOR GREEN WEIGHT (kg) 1.97 BULBS TO BE USED DC24V / 40W AC110V / 60W AC220V / 65W FLASH 180~200/min
MANEUVERING LIGHT NAME ALL ROUND LIGHT 环照灯(白) MODEL SLML-11 VISIBILITY RANGE (n.m.) 5 VISIBILITY SECTOR 360° LENS COLOR WHITE WEIGHT (kg) 1.97 TYPE APPROVAL MED0950212 BULBS TO BE USED DC24V / 40W AC110V / 60W AC220V / 65W Fig. NO. 5
ALL ROUND LIGHT NAME ALL ROUND LIGHT 环照灯(黄) MODEL SLYL-11 VISIBILITY RANGE (n.m.) 3 VISIBILITY SECTOR 360° LENS COLOR YELLOW WEIGHT (kg) 1.97 TYPE APPROVAL MED0950212 BULBS TO BE USED DC24V / 40W AC110V / 60W AC220V / 65W Fig. NO. 5
ALL ROUND LIGHT NAME ALL ROUND LIGHT 环照灯(绿) MODEL SLGL-11 VISIBILITY RANGE (n.m.) 3 VISIBILITY SECTOR 360° LENS COLOR GREEN WEIGHT (kg) 1.97 TYPE APPROVAL MED0950212 BULBS TO BE USED DC24V / 40W AC110V / 60W AC220V / 65W Fig. NO. 5
ALL ROUND LIGHT NAME ALL ROUND LIGHT 环照灯(红) MODEL SLRL-11 VISIBILITY RANGE (n.m.) 3 VISIBILITY SECTOR 360° LENS COLOR RED WEIGHT (kg) 1.97 TYPE APPROVAL MED0950212 BULBS TO BE USED DC24V / 40W AC110V / 60W AC220V / 65W Fig. NO. 5 ALL ROUND LIGHT 环 照 灯 (单层) 型号 能见度 视角 灯罩颜色 灯罩层数 适用灯泡 重量 Model Visibility Visibility Sector Lens Color Lens No. Bulbs to be used Weight SLRL-11 3 n. m.(海浬) 360°(度) 红色RED 单层Single DC24V/40W AC110V/60W AC220V/65W 1.97Kg ■防护等级Protection Class：IP56 ■SLML-11：Maneuvering light 操纵灯
ALL ROUND LIGHT NAME ALL ROUND LIGHT 环照灯(白) MODEL SLWL-11 VISIBILITY RANGE (n.m.) 3 VISIBILITY SECTOR 360° LENS COLOR WHITE WEIGHT (kg) 1.97 TYPE APPROVAL MED0950212 BULBS TO BE USED DC24V / 40W AC110V / 60W AC220V / 65W Fig. NO. 5

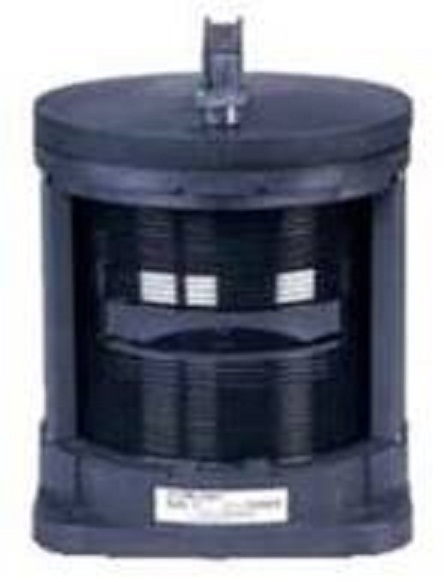

TOWING LIGHT NAME TOWING LIGHT 拖曳燈 MODEL NLTL-11 VISIBILITY RANGE (n.m.) 3 VISIBILITY SECTOR 135° LENS COLOR YELLOW WEIGHT (kg) 2.37 TYPE APPROVAL MED0950211 BULBS TO BE USED DC24V / 40W AC110V / 60W AC220V / 65W Fig. NO.

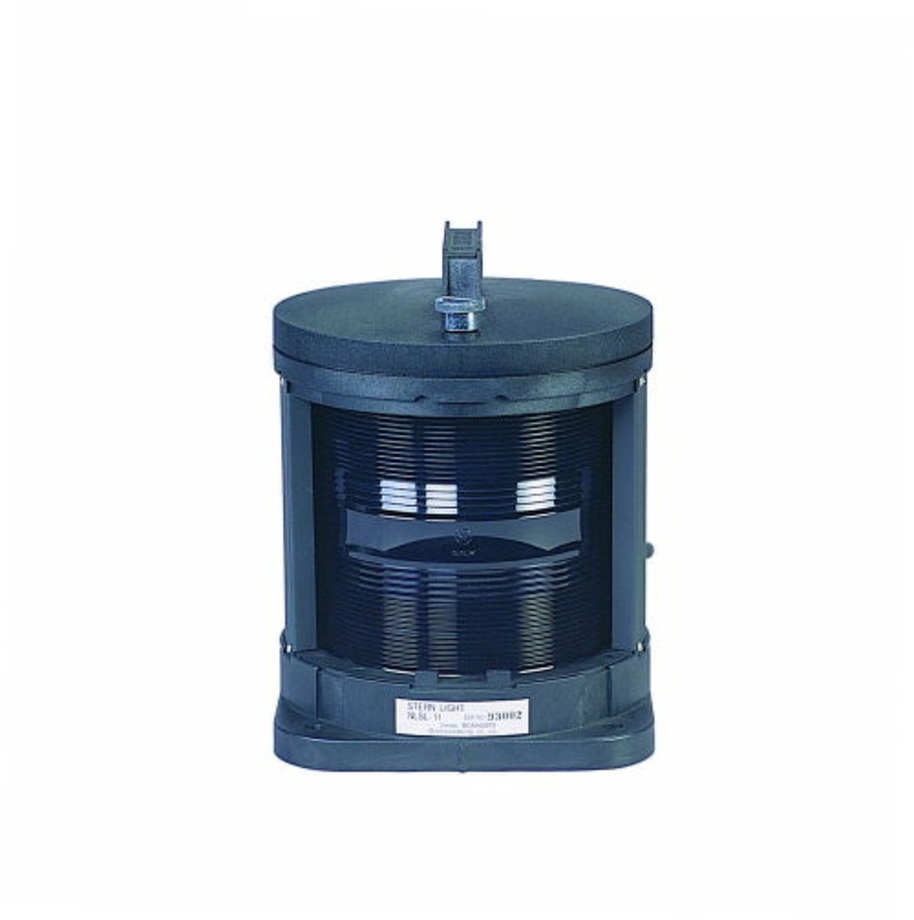

STERN LIGHT NAME STERN LIGHT 艉灯 MODEL NLSL-11 VISIBILITY RANGE (n.m.) 3 VISIBILITY SECTOR 135° LENS COLOR WHITE WEIGHT (kg) 2.37 TYPE APPROVAL MED0950191 BULBS TO BE USED DC24V / 40W AC110V / 60W AC220V / 65W Fig. NO. 4
