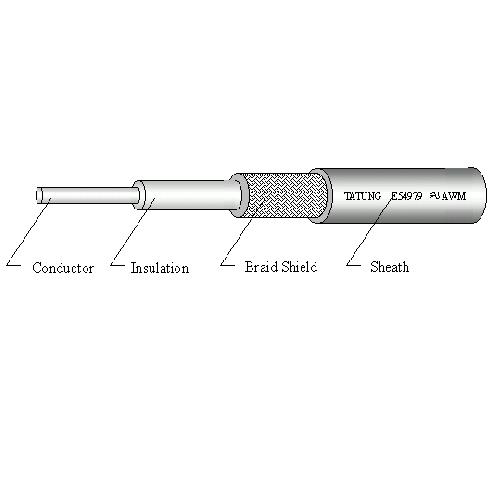

Connecting , Internal wiring , feeder etc. of radio-frequency apparatus , With characteristic impedance of 50W , and 75W.   Specifications 1.Conductor：Annealed Copper Wire (Bare Single,Bare Strand or Tinned Strand)2.Insulation：PE (Polyethylene)or XLPE (Cross-Linked Polyethylene) 3.Braid Shield：Annealed Copper Wire (Tinned Copper)4.Sheath：PVC ( Polyvinyl Chloride) 5.Structure： Conductor CPE Insulation Braid Shield Sheath AWG Construction Diameter Min. Thickness NominalThickness Diameter Const--ruction Diameter Min.Thickness NominalThickness Diameter 26 7 / 0.16A approx.0.48 mm 0.40 mm 0.485 mm 1.45 ± 0.10 mm 16/5/0.10 approx.0.31 mm 0.31mm 0.375mm 2.70 ± 0.10 mm   6.Characteristics： Items Specification Rating 80℃ 30V Dielectric Strength AC 500V / min.(Between Conductor and Shield) Spark Test AC 2000V / 0.15sec. Insulation Resistance Min.1000MW - Km (20℃) at DC 500V Characteristic Impedance 50W ± 5W (1MHz)   7.Marking：TATUNG E54979 AWM 1354 80℃ 26AWG RG – 174 / U

Connecting , Internal wiring , feeder etc. of radio-frequency apparatus , With characteristic impedance of 50W , and 75W.   Specifications 1.Conductor：Annealed Copper Wire (Bare Single,Bare Strand or Tinned Strand) orCopper-Plated Steel Wire. 2.Insulation：PE(Polyethylene)or XLPE (Cross-Linked Polyethylene) 3.Braid Shield：Annealed Copper Wire (Tinned Copper)4.Sheath：PVC( Polyvinyl Chloride) 5.Structure： Conductor CPE Insulation Braid Shield Sheath AWG Constr--uction Diameter Min. Thickness NominalThickness Diameter Constr--uction Diameter Min.Thickness NominalThickness Dia 30 7 / 0.10A approx.0.30 mm 0.508 mm 0.675 mm 1.65 ± 0.10 mm 16/5/0.10 approx.2.15mm 0.305mm 0.475mm 3.10 ± 0.20 mm 30 1 / 0.26ACP approx.0.26 mm 0.695 mm 1.65 ± 0.10 mm 16/5/0.10 approx.2.15mm 0.305mm 0.475mm 3.10 ± 0.20 mm 28 1 / 0.32 ACP approx.0.32 mm 0.84 mm 2.00 ± 0.10 mm 16/5/0.10 approx.2.50mm 0.305mm 0.75mm 4.00 ± 0.20 mm 28 1 / 0.32A approx.0.32 mm 0.695 mm 2.00 ± 0.10 mm 16/5/0.10 approx.2.50mm 0.305mm 0.75mm 4.00 ± 0.20 mm 26 7 / 0.16A approx.0.48 mm 0.685 mm 1.85 ± 0.10 mm 16/5/0.10 approx.2.35mm 0.305mm 0.575mm 3.50 ± 0.20 mm 24 7 / 0.20A approx.0.60 mm 0.725 mm 2.05 ± 0.10 mm 16/5/0.10 approx.2.55mm 0.305mm 0.525mm 3.60 ± 0.20 mm 24 11 / 0.16TA approx.0.61 mm 0.72 mm 2.05 ± 0.10 mm 16/5/0.10 approx.2.55mm 0.305mm 0.525mm 3.60 ± 0.20 mm   6.Characteristics： Items Specification Rating UL：60℃ 300V Dielectric Strength AC 500V / min.(Between Conductor and Shield) Spark Test AC 2000V / 0.15sec. Insulation Min.1000MW - Km (20℃) at DC 500V for PE Min.50MW - Km (20℃) at DC 500V for FRPE Flame Tesst UL：VW - 1 Note：TA：Tinned Copper , A：Bare Copper, ACP：Copper-Plated Steel 7.Marking： Items Specification 30 7/0.10(PE) TATUNG E54979 AWM 1365 60℃ VW-1 30AWG 75W 1.7C-2VS 30 7/0.10(FRPE) TATUNG E54979 AWM 1365 60℃ VW-1 30AWG 30 1/0.26ACP(PE) TATUNG E54979 AWM 1365 60℃ VW-1 30AWG COPPER-CLAD STEEL 75W 1.7C-2VCS 30 1/0.26ACP(FRPE) TATUNG E54979 AWM 1365 60℃ VW-1 30AWG COPPER-CLAD STEEL 28 1/0.32 ACP(PE) TATUNG E54979 AWM 1365 60℃ VW-1 28AWG COPPER-CLAD STEEL 75W 2C-2VCS 28 1/0.32 (PE) TATUNG E54979 AWM 1365 60℃ VW-1 28AWG 75W 2C-2V 28 1/0.32 ACP(FRPE) TATUNG E54979 AWM 1365 60℃ VW-1 28AWG COPPER-CLAD STEEL 28 1/0.32(FRPE) TATUNG E54979 AWM 1365 60℃ VW-1 28AWG 26 7/0.16(PE) TATUNG E54979 AWM 1365 60℃ VW-1 26AWG 26 7/0.16TA(FRPE) TATUNG E54979 AWM 1365 60℃ VW-1SC 26AWG-TA 24 7/0.20(PE) TATUNG E54979 AWM 1365 60℃ VW-1 24AWG

Connecting , Internal wiring , feeder etc. of radio-frequency apparatus , With characteristic impedance of 50W , and 75W.   Specifications 1.Conductor：Annealed Copper Wire (Tinned Strand)2.Insulation： CPE (Cellular Polyethylene) 3.Braid Shield：Annealed Copper Wire (Tinned Copper)4.Sheath： PVC ( Polyvinyl Chloride) 5.Structure： Conductor Insulation Braid Shield Sheath AWG Construction Diameter Min.Thickness NominalThickness Diameter Const--ruction Diameter Min.Thickness NominalThickness Diameter 30 7/ 0.10TA(1.9f) approx.0.30 mm 0.64 mm 0.80 mm 1.90 ± 0.10 mm 16/5/0.10 approx.2.40 mm 0.44mm 0.55mm 3.50 ± 0.10 mm 30 7 / 0.10TA approx.0.30 mm 0.44 mm 0.55 mm 1.40 ± 0.10 mm 16/5/0.10 approx.1.90 mm 0.22mm 0.275mm 2.50 ± 0.10 mm 28 1 / 0.32TA approx.0.32 mm 0.39 mm 0.49 mm 1.30 ± 0.10 mm 16/5/0.10 approx.1.80 mm 0.40mm 0.50mm 2.80 ± 0.10 mm 28 7 / 0.13TA approx.0.39 mm 0.38 mm 0.53 mm 1.45 ± 0.10 mm 16/5/0.10 approx.1.95mm 0.34mm 0.425mm 2.80 ± 0.10 mm   6.Characteristics： Items Specification Rating UL：80℃ 30V Dielectric Strength AC 500V / min.(Between Conductor and Shield) Spark Test AC 2000V / 0.15sec. Mutual Capacitance Depends on Different Specifications (1KHz) Characteristic Impedance 75W ± 5W (1MHz) 7.Marking：TATUNG E54979 AWM 1354 80℃ □AWG

Connecting , Internal wiring , feeder etc. of radio-frequency apparatus , With characteristic impedance of 50W , and 75W.   Specifications 1.Conductor：Annealed Copper Wire (Bare Single,Bare Strand or Tinned Strand) 2.Insulation： PE(Polyethylene) or FRPE ( Flame Retardant Polyethylene )3.Braid shield : Annealed Copper Wire ( Bare or Tinned Copper)4.Sheath : PVC ( Polyvinyl Chloride )5.Structure： Conductor Insulation Braid Shield Sheath AWG Construction Diameter Min.Thickness NominalThickness Diameter Const--ruction Diameter Min.Thickness NominalThickness Diameter 26 1 / 0.41A 0.41 mm 0.686 mm 1.04 mm 2.50 ± 0.10 mm 16/6/0.12 approx.3.10mm 0.331mm 0.775mm 4.65 ± 0.15mm 24 1 / 0.51A 0.51 mm 1.295 mm 3.10 ± 0.10 mm 24/5/0.14 approx.3.80mm 0.331mm 1.0mm 5.80 ± 0.15mm   6.Characteristics： Items Specification Rating UL：60℃ 300V Dielectric Strength AC 2000V / min.(Between Conductor and Shield) Spark Test AC 3000V / 0.15sec. Insulation Resistance Min.1000MW - Km (20℃) at DC 500V Flame Test UL：VW-1   7.Marking：E54979 AWM 1150 60℃ 300V VW – 1 □AWG 75W 2.5C – 2V

Connecting , Internal wiring , feeder etc. of radio-frequency apparatus , With characteristic impedance of 50W , and 75W.   Specifications 1.Conductor：Annealed Copper Wire (Bare Single,Bare Strand or Tinned Strand) 2.Insulation：PVC (Polyvinyl Chloride)3.Braid shield : Annealed Copper Wire (Bare or Tinned Copper)4.Sheath : PVC ( Polyvinyl Chloride)5.Structure： Conductor Insulation Braid Shield Sheath AWG Const--ruction Diameter Min.Thickness NominalThickness Diameter Const--ruction Diameter Min.Thickness NominalThickness Dia. 26 7 / 0.18A approx.0.53 mm 0.331 mm 0.53 mm 1.60±0.10mm 16/5/0.10 approx.2.10mm 0.331mm 0.65mm 3.40±0.10mm 26 7/ 0.16ATC approx.0.48 mm 0.46 mm 1.40±0.10mm 16/5/0.10 approx.1.90mm 0.331mm 0.60mm 3.10±0.10mm 24 7 / 0.10TA approx.0.30 mm 0.40 mm 1.10±0.10mm 16/4/0.10 approx.1.60mm 0.331mm 0.40mm 2.40±0.10mm   6.Characteristics： Items Specification Rating UL：60℃ 300V Dielectric Strength AC 2000V / min.(Between Conductor and Shield) Spark Test AC 3000V / 0.15sec. Insulation Resistance Min.1000MW - Km (20℃) at DC 500V Flame Test UL：VW-1   7.Marking：TATUNG E54979 AWM 1107 60℃ VW – 1 □AWG

Connecting , Internal wiring , feeder etc. of radio-frequency apparatus , With characteristic impedance of 50W , and 75W.   Specifications 1.Application：Connecting , Internal wiring , feeder etc. of radio-frequency apparatus , With characteristic impedance of 50W , and 75W.2.Classification and Symbols： Classification (by characteristic ) impedance Symbol 50W 0.8D – 2V1.5D – 2V2.5D – 2V3D – 2V5D – 2V8D – 2V10D – 2V 75W 1.5C – 2V2.5C – 2V2.5C – 2VS3C – 2V3C–2VCS3C – 2VS3C – 2W3C– 2WS5C – 2V5C – 2VS5C – 2W7C – 2V10C – 2V   3.Remark：1. First numeral：expressing approximate inner diameter of outer conductor in mm.2. Second letters：D means ² cable of 50 W type ² C means ² cable of 75 W type ²3. Third numeral：2 means ²cable with solid polyethylene ² 4. Fourth letters：V means ²cable with single outer conductor applied with vinyl sheath ² 5. Fifth Letter：S means ²cable with stranded inner ²6. Fifth and Sixth letter： CS means ²cable with copper-covered steel inner conductor( to distinguish from ones of same size but with inner conductor of annealed copper wire ). ² 4.Structure ＆ Properties： Items Cable symbol Inner Insulation Outer Conductor Finished Max.Conductor Static Charact--eristic Standard Conductor Diameter Inner Braid Outer Braid Diameter Resistance Capacitance Impedance Attenuation(dB / Km) (NO. / mm) (mm) NO. / mm / strike NO. / mm / strike (mm) 20°C (W / Km) 1KHz (nF / Km) (W) 1 M Hz 10 M Hz 30 M Hz 200 M Hz 0.8C-2V 1 / 0.26* 0.8 3 / 0.1 / 16 － 2.00 ± 0.40 968 102 ± 8 50 ± 4 140 180 280 700 1.5C-2V 7 / 0.18 1.6 5 / 0.1 / 16 － 2.90 ± 0.40 110 104 ± 5 50 ± 2 27 85 155 400 2.5D-2V 1 / 0.80 2.7 7 / 0.12 / 16 － 4.30 ± 0.50 35.9 100 ± 5 50 ± 2 15 45 88 240 3D-2V 7 / 0.32 3.0 5 / 0.14 / 24 － 5.30 ± 0.50 33.3 100 ± 4 50 ± 2 13 47 77 220 5D-2V 1 / 1.40 4.8 7 / 0.14 / 24 － 7.30 ± 0.50 11.7 100 ± 4 50 ± 2 8 27 46 125 5D-2W 1 / 1.40 4.8 7 / 0.14 / 24 7 / 0.14 / 24 8.00 ± 0.50 11.7 100 ± 4 50 ± 2 8 27 46 125 8D-2V 7 / 0.80 7.8 8 / 0.18 / 24 － 11.1 ± 0.50 5.13 100 ± 4 50 ± 2 5 20 30 85 10D-2V 1 / 2.90 9.7 10 / 0.20 /24 － 13.1 ± 0.50 2.67 102 ± 4 50 ± 2 4 14 24 65 1.5C-2V 1 / 0.26* 1.6 5 / 0.1 / 16 － 2.90 ± 0.40 968 69 ± 4 75 ± 3 27 96 143 390 2.5C-2V 1 / 0.40 2.4 6 / 0.12 / 16 － 4.00 ± 0.50 145 69 ± 4 75 ± 3 16 52 90 250 2.5C-2VS 7 / 0.14 2.4 6 / 0.12 / 16 － 4.00 ± 0.50 180 69 ± 4 75 ± 3 18 60 110 280 3C-2V 1 / 0.50 3.1 5 / 0.14 / 24 － 5.40 ± 0.50 91.4 67 ± 3 75 ± 3 14 42 73 194 3C-2VS 7 / 0.18 3.1 5 / 0.14 / 24 － 5.40 ± 0.50 100 67 ± 3 75 ± 3 14 48 79 215 3C-2VCS 1 / 0.50* 3.1 5 / 0.14 / 24 － 5.40 ± 0.50 256 67 ± 3 75 ± 3 22 42 70 195 3C-2W 1 / 0.50 3.1 5 / 0.14 / 24 5 / 0.14 / 24 6.50 ± 0.50 91.4 67 ± 3 75 ± 3 14 42 73 194 3C-2WS 7 / 0.18 3.2 5 / 0.14 /24 5 / 0.14 / 24 6.60 ± 0.50 110 67 ± 3 75 ± 3 15 44 79 215 5C-2V 1 / 0.80 4.9 7 / 0.14 / 24 － 7.40 ± 0.50 35.9 67 ± 3 75 ± 3 8 27 47 126 5C-2VS 7 / 0.26 4.6 7 / 0.14 / 24 － 7.30 ± 0.50 53.1 67 ± 3 75 ± 3 9 31 55 150 5C-2W 1 / 0.80 4.9 7 / 0.14 / 24 7 / 0.14 / 24 8.30 ± 0.50 35.9 67 ± 3 75 ± 3 8 27 47 126 7C-2V 7 / 0.40 7.3 8 / 0.18 / 24 － 10.4 ± 0.50 20.7 67 ± 3 75 ± 3 7 22 38 105 10C-2V 7 / 0.50 9.4 10 / 0.20 /24 － 13.0 ± 0.50 13.1 67 ± 3 75 ± 3 5 18 31 86 *Means Copper – Clad Steel Wire   5.Marking：TATUNG □Ω Symbol Year.

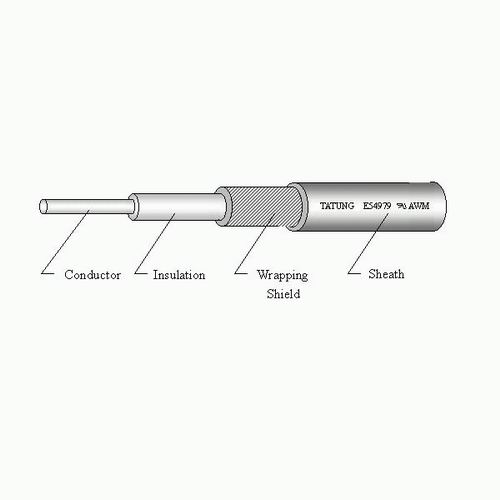

1.Inner wiring of computers and videos.2.Special designs are subject to customers' requirements.   Specifications 1.Conductor：Annealed Copper Wire (Bare Single or Tinned Strand)2.Insulation：SR-PVC (Semi-Rigid Polyvinyl Chloride) 2.Wrapping Shield：Annealed Copper Wire (Bare Copper or Tinned Copper )4.Sheath：PVC ( Polyvinyl Chloride) 5.Structure： Conductor Insulation Wrapping Shield Sheath AWG Construction Diameter Min.Thickness NominalThickness Diameter Construction Diameter Min.Thickness NominalThickness Diameter 32 7 / 0.08TA approx.0.24 mm 0.51mm 0.18 mm 0.60 ± 0.10 mm 23 / 0.08 approx.0.76 mm 0.051mm 0.22mm 1.20 ± 0.10 mm 30 7 / 0.10TA approx.0.30 mm 0.20 mm 0.70 ± 0.10 mm 22 / 0.10 approx.0.90 mm 0.051mm 0.225mm 1.40 ± 0.10 mm 28 7 / 0.13TA approx.0.39 mm 0.205 mm 0.80 ± 0.10 mm 25 / 0.10 approx.1.00 mm 0.051mm 0.25mm 1.50 ± 0.10 mm 26 7 / 0.16TA approx.0.48 mm 0.21 mm 0.90 ± 0.10 mm 28 / 0.10 approx.1.10 mm 0.051mm 0.275mm 1.65 ± 0.10 mm 24 7 / 0.20TA approx.0.60 mm 0.20 mm 1.00 ± 0.10 mm 31 / 0.10 approx.1.20 mm 0.051mm 0.275mm 1.75 ± 0.10 mm 22 7 / 0.26TA approx.0.78 mm 0.21 mm 1.20 ± 0.10 mm 36 / 0.10 approx.1.40 mm 0.051mm 0.275mm 1.95 ± 0.10 mm 20 42 / 0.13TA approx.0.97 mm 0.39 mm 0.39 ± 0.10 mm 52 / 0.10 approx.1.95 mm 0.051mm 0.475mm 2.90 ± 0.10 mm Note：TA：Tinned Copper , A：Bare Copper   6.Characteristics： Items Specification Rating UL：80℃ 30V Dielectric Strength AC 500V / min. (Between Conductor and Shield) Spark Test AC 3000V / 0.15sec. Insulation Min.5MW - Km (20℃) at DC 500V   7.Marking：E54979 AWM 1533 80℃ VW – 1SC □AWG

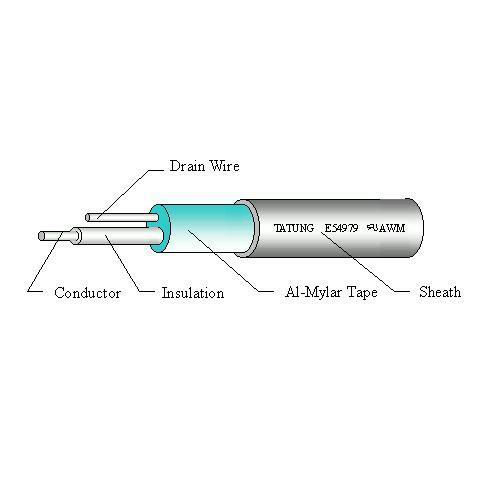

1.Inner wiring of computers and videos.2.Special designs are subject to customers' requirements.   Specifications 1.Conductor：Annealed Copper Wire (Top-Tinned Strand or Tinned Single)2.Insulation： PVC (Polyvinyl Chloride) 3.Drain Wire：Annealed Copper Wire (Top-Tinned Strand or Tinned Single)4.Shield：Aluminum-Mylar Tape (Thickness＝0.025mm )5.Sheath： PVC ( Polyvinyl Chloride)6.Structure： Conductor Insulation Sheath AWG Const--ruction Diameter Min.Thickness NominalThickness Diameter Al-MylarTape Diameter Min.Thickness NominalThickness Diameter 26 7/0.16ATC approx.0.48mm 0.208mm 0.26 mm 1.00± 0.10mm 0.025×6mmlongitudinal 7/0.16ATClongitudinal 0.32mm 0.40mm 1.90 ± 0.10 mmx2.40 ±0.10mm   7.Characteristics： Items Specification Rating UL：80℃ 30V Dielectric Strength Spark Test AC 2000V / 0.15sec. Insulation Resistance Min.5MW - Km (20℃) at DC 500V Flame Test UL：VW – 1SC   8.Marking：TATUNG E54979 AWM 1571

1.Inner wiring of computers and videos.2.Special designs are subject to customers' requirements.   Specifications 1.Conductor：Annealed Copper Wire (Bare Single or Tinned Strand)2.Insulation：SR-PVC(semi-Rigid Polyvinyl Chloride) 3.Wrapping Shield：Annealed Copper Wire (Bare Copper or Tinned Copper )4.Sheath：PVC( Polyvinyl Chloride) 5.Structure： Conductor Insulation Wrapping Shield Sheath AWG Construction Diameter Min.Thickness NominalThickness Diameter Const--ruction Diameter Min.Thickness NominalThickness Diameter 30 7 / 0.10TA approx.0.30 mm 0.178mm 0.25 mm 0.80 ± 0.10 mm 25 / 0.10 1.00 mm 0.30mm 0.40mm 1.80 ± 0.10 mm 28 7 / 0.13TA approx.0.39 mm 0.255mm 0.90 ± 0.10 mm 28 / 0.10 1.10 mm 0.30mm 0.40mm 1.90 ± 0.10 mm 26 7 / 0.16TA approx.0.48 mm 0.245mm 0.97 ± 0.10 mm 31 / 0.10 1.17 mm 0.30mm 0.40mm 2.00 ± 0.10 mm 24 7 / 0.20TA approx.0.60 mm 0.25 mm 1.10 ± 0.10 mm 33 / 0.10 1.30 mm 0.30mm 0.40mm 2.10 ± 0.10 mm 22 7 / 0.26TA approx.0.78 mm 0.26 mm 1.30 ± 0.10 mm 39 / 0.10 1.50 mm 0.30mm 0.40mm 2.30 ± 0.10 mm 20 7 / 0.32TA approx.0.96 mm 0.27 mm 1.50 ± 0.10 mm 44 / 0.10 1.70 mm 0.30mm 0.40mm 2.50 ± 0.10 mm   6.Characteristics： Items Specification Rating UL：80℃ ， CSA：80℃ 300V Dielectric Strength AC 500V / min.(Between Conductor and Shield) Insulation Resistance Min. 5MW - Km (20℃) at DC 500V Flame Test UL：VW-1SC CSA：FT-1 Elongation of Insulation Min.100 ﹪ Tensile Strength of Insulation Min.2.11Kg / mm2 Residual of Elongation after Aging Min. 70 ﹪of original (113℃，168H) Residual of Tensile Strength after Aging Min. 70 ﹪of original (113℃，168H)   7.Marking：E54979 AWM 1533 80℃ 300V VW – 1SC □AWG TATUNGLL58500 CSA AWM I / II A / B 80℃ 30V FT1

1.Inner wiring of computers and videos.2.Special designs are subject to customers' requirements.   Specifications 1.Conductor：Annealed Copper Wire (Top-Tinned Strand or Tinned Single)2.Insulation：SR-PVC (Semi-Rigid Polyvinyl Chloride) 3.Drain Wire：Annealed Copper Wire (Top-Tinned Strand or Tinned Single)4.Shield：Aluminum-Mylar Tape (Thickness＝0.025mm )5.Sheath：PVC ( Polyvinyl Chloride)6.Structure： Conductor Insulation Sheath AWG Const--ruction Diameter Min.Thickness NominalThickness Diameter Al-MylarTape Diameter Min.Thickness NominalThickness Diameter 28 7 / 0.13ATC approx.0.38mm 0.178 mm 0.26 mm 0.90 ± 0.10 mm 0.025 × 6 mmlongitudinal 7/0.13ATClongitudinal 0.254mm 0.45mm 1.80 ± 0.10 mm´2.20 ± 0.10 mm 26 1 / 0.41TA approx.0.41 mm 0.178 mm 0.295 mm 1.00 ± 0.10 mm 0.025 × 6 mmlongitudinal 1/0.41ATClongitudinal 0.254mm 0.47mm 1.95 ± 0.10 mm´2.35 ± 0.10 mm 26 7 / 0.16ATC approx.0.47 mm 0.178 mm 0.265 mm 1.00 ± 0.10 mm 0.025 × 6 mmlongitudinal 7/0.16ATClongitudinal 0.254mm 0.44mm 1.95 ± 0.10 mm´2.35 ± 0.10 mm 24 1 / 0.51TA approx.0.51 mm 0.178 mm 0.295 mm 1.05 ± 0.10 mm 0.025 × 6 mmlongitudinal 1/0.51ATClongitudinal 0.254mm 0.445mm 2.00 ± 0.10 mm´2.50 ± 0.10 mm 24 7 / 0.20ATC approx.0.58 mm 0.178 mm 0.26 mm 1.10 ± 0.10 mm 0.025 × 6 mmlongitudinal 7/0.20ATClongitudinal 0.254mm 0.41mm 2.00 ± 0.10 mm´2.50 ± 0.10 mm Note：TA：Tinned Copper , ATC：Top – Tinned Strand   7.Characteristics： Items Specification Rating UL：80℃ , CSA：80℃ 30V Dielectric Strength AC 500V / min. (Between Conductor and Shield) Spark Test AC 3000V / 0.15sec. Insulation Resistance Min.5MW - Km (20℃) at DC 500V Mutual Capacitance Depends on Different Specifications (1KHz)   8.Marking：TATUNG E54979 AWM 1533 80℃ VW – 1SC □AWG TATUNG LL58500 CSA AWM I / II A / B 80℃ 30V FT1

1.Inner wiring of computers and videos.2.Special designs are subject to customers' requirements.   Specifications 1.Conductor：Annealed Copper Wire (Tinned Strand)2.Insulation：PE (Polyethylene) 、CPE ( Cellular Polyethylene) 3.Wrapping Shield：Annealed Copper Wire (Tinned Copper )4.Sheath：PVC ( Polyvinyl Chloride) 5.Structure： Conductor CPE Insulation Wrapping Shield Sheath AWG Const--ruction Diameter Min. Thickness NominalThickness Diameter Const--ruction Diameter Min.Thickness NominalThickness Diameter 30 7 / 0.10TA approx.0.30 mm 0.40 mm 0.525 mm 1.40 ± 0.10 mm 44 / 0.10 approx.1.60 mm 0.26mm 0.325mm 2.20 ± 0.10 mm Conductor PE Insulation (General) Wrapping Shield Sheath 30 7 / 0.10TA approx.0.30 mm 0.16 mm 0.25 mm 0.80 ± 0.10 mm 25 / 0.10 approx.1.00 mm 0.175mm 0.275mm 1.55 ± 0.10 mm Conductor CPE Insulation (General) Wrapping Shield Sheath 28 7 / 0.13TA approx.0.39 mm 0.38 mm 0.53 mm 1.45 ± 0.10 mm 37 / 0.12 approx.1.69 mm 0.26mm 0.33mm 2.35 ± 0.10 mm Conductor CPE Insulation (for Apple) Wrapping Shield Sheath 28 7 / 0.13TA approx.0.39 mm 0.38 mm 0.605 mm 1.60 ± 0.10 mm 42 / 0.12 approx.1.84 mm 0.224mm 0.305mm 2.45 ± 0.10 mm   6.Characteristics： Items Specification Rating UL：80℃ 30V Dielectric Strength AC 500V / min. Spark Test AC 2000V / 0.15sec. Insulation Resistance Min.1000MW - Km (20℃) at DC 500V Mutual Capacitance Depends on Different Specifications (1KHz)   7.Marking：TATUNG E54979 AWM 1354 80℃ □AWG TATUNG E54979 AWM 1691 80℃ □AWGTATUNG E54979 AWM 1792 80℃ □AWG

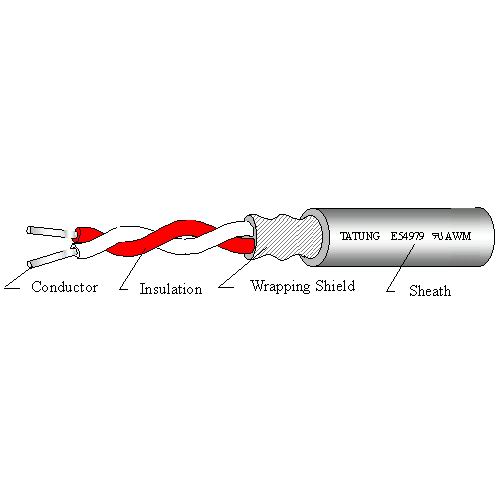

1.Inner wiring of computers and videos.2.Special designs are subject to customers\' requirements.   Specifications 1、Conductor： Tinned Copper Strand. 2、Insulation： FRPE ( Flame Retardant Polyethylene )or PE (Polyethylene)3、Wrapping Shield：Bare or Tinned Copper on Twisted Wires4、Sheath： PVC ( Polyvinyl Chloride) 5、Structure： Conductor Insulation Wrapping Shield Sheath AWG Construction Diameter Min.Thickness NominalThickness Diameter Const--ruction Diameter Min.Thickness NominalThickness Diameter 32 7 / 0.08TAX2C approx.0.24 mm 0.14 mm 0.18 mm 0.60 ± 0.10 mm 42 / 0.08 1.36 mm 0.16 mm 0.195 mm 1.75 ± 0.10 mm 30 7 / 0.10TAX2C approx.0.30 mm 0.14 mm 0.20 mm 0.70 ± 0.10 mm 42 / 0.10 1.40 mm 0.16 mm 0.275 mm 2.15 ± 0.10 mm 28 7 / 0.13TAX2C approx.0.39 mm 0.15 mm 0.205mm 0.80 ± 0.10 mm 46 / 0.10 1.80 mm 0.22 mm 0.30 mm 2.40 ± 0.10 mm 26 7 / 0.16TAX2C approx.0.48 mm 0.15 mm 0.21 mm 0.90 ± 0.10 mm 50 / 0.10 2.00 mm 0.22 mm 0.275 mm 2.55 ± 0.10 mm 24 7 / 0.20TAX2C approx.0.60 mm 0.15 mm 0.20 mm 1.00 ± 0.10 mm 50 / 0.10 2.20 mm 0.22 mm 0.30 mm 2.80 ± 0.10 mm 24 11/ 0.16TAX2C approx.0.61 mm 0.15 mm 0.195 mm 1.00 ± 0.10 mm 52 / 0.10 2.20 mm 0.22 mm 0.30 mm 2.80 ± 0.10 mm 32 7 / 0.08TAX3C approx.0.24 mm 0.14 mm 0.18 mm 0.60 ± 0.10 mm 45 / 0.08 1.45 mm 0.18 mm 0.225 mm 1.90 ± 0.10 mm 30 7 / 0.10TAX3C approx.0.30 mm 0.14 mm 0.20 mm 0.70 ± 0.10 mm 42 / 0.10 1.40 mm 0.18 mm 0.27 mm 2.25 ± 0.10 mm 28 7 / 0.13TAX3C approx.0.30 mm 0.15mm 0.205 mm 0.80 ± 0.10 mm 48 / 0.10 1.92 mm 0.22 mm 0.265 mm 2.45 ± 0.10 mm 26 7 / 0.16TAX3C approx.0.48 mm 0.15 mm 0.21 mm 0.90 ± 0.10 mm 53 / 0.10 2.00 mm 0.22 mm 0.28 mm 2.70 ± 0.10 mm 24 7 / 0.20TAX3C approx.0.60 mm 0.15 mm 0.20 mm 1.00 ± 0.10 mm 58 / 0.10 2.20 mm 0.22 mm 0.275 mm 2.90 ± 0.10 mm 24 11/ 0.16TAX3C approx.0.61 mm 0.15 mm 0.195 mm 1.00 ± 0.10 mm 58 / 0.10 2.20 mm 0.22 mm 0.275 mm 2.90 ± 0.10 mm 32 7 / 0.08TAX4C approx.0.24 mm 0.14 mm 0.18 mm 0.60 ± 0.10 mm 52 / 0.10 1.61 mm 0.16 mm 0.195 mm 2.00 ± 0.10 mm 30 7 / 0.10TAX4C approx.0.30 mm 0.14 mm 0.20 mm 0.70 ± 0.10 mm 49 / 0.10 1.89 mm 0.20 mm 0.27 mm 2.25 ± 0.10 mm 28 7 / 0.13TAX4C approx.0.39 mm 0.15 mm 0.205 mm 0.80 ± 0.10 mm 55 / 0.10 2.13 mm 0.20 mm 0.235 mm 2.60 ± 0.10 mm 26 7 / 0.16TAX4C approx.0.48 mm 0.15 mm 0.21 mm 0.90 ± 0.10 mm 61 / 0.10 2.37 mm 0.22 mm 0.24 mm 2.85 ± 0.10 mm 30 7 / 0.10TAX7C approx.0.30 mm 0.14 mm 0.20 mm 0.70 ± 0.10 mm 62 / 0.10 2.30 mm 0.21 mm 0.25 mm 2.80 ± 0.10 mm 6、Characteristics： Items Specification Rating UL：80℃ 30V Dielectric Strength Spark Test AC2000V / 0.15sec. Insulation Resistance Min.5MW - Km (20℃) at DC 500V Flame Test UL：VW – 1SC 7、Marking： E54979 AWM 2854 30V - 80℃ VW – 1SC □AWG / □TATUNG

1.Inner wiring of computers and videos.2.Special designs are subject to customers' requirements.   Specifications 1.Conductor：Tinned Copper Strand. 2.Insulation：FRPE ( Flame Retardant Polyethylene )or PE (Polyethylene) 3.Wrapping Shield：Bare or Tinned Copper on Twisted Wir1.Conductor：Tinned Copper Strand. 2.Insulation：FRPE ( Flame Retardant Polyethylene )or PE (Polyethylene) 3.Wrapping Shield：Bare or Tinned Copper on Twisted Wires 4.Sheath：PVC( Polyvinyl Chloride) 5.Structure： Conductor Insulation Wrapping Shield Sheath AWG Construction Diameter Min. Thickness Nominal Thickness Diameter Const--ruction Diameter Min. Thickness Nominal Thickness Diameter 32 7 / 0.08TAX2C approx.0.24 mm 0.14 mm 0.18 mm 0.60 ± 0.10 mm 42 / 0.08 1.36 mm 0.16 mm 0.195 mm 1.75 ± 0.10 mm 30 7 / 0.10TAX2C approx.0.30 mm 0.14 mm 0.20 mm 0.70 ± 0.10 mm 42 / 0.10 1.40 mm 0.16 mm 0.275 mm 2.15 ± 0.10 mm 28 7 / 0.13TAX2C approx.0.39 mm 0.15 mm 0.205mm 0.80 ± 0.10 mm 46 / 0.10 1.80 mm 0.22 mm 0.30 mm 2.40 ± 0.10 mm 26 7 / 0.16TAX2C approx.0.48 mm 0.15 mm 0.21 mm 0.90 ± 0.10 mm 50 / 0.10 2.00 mm 0.22 mm 0.275 mm 2.55 ± 0.10 mm 24 7 / 0.20TAX2C approx.0.60 mm 0.15 mm 0.20 mm 1.00 ± 0.10 mm 50 / 0.10 2.20 mm 0.22 mm 0.30 mm 2.80 ± 0.10 mm 24 11/ 0.16TAX2C approx.0.61 mm 0.15 mm 0.195 mm 1.00 ± 0.10 mm 52 / 0.10 2.20 mm 0.22 mm 0.30 mm 2.80 ± 0.10 mm 32 7 / 0.08TAX3C approx.0.24 mm 0.14 mm 0.18 mm 0.60 ± 0.10 mm 45 / 0.08 1.45 mm 0.18 mm 0.225 mm 1.90 ± 0.10 mm 30 7 / 0.10TAX3C approx.0.30 mm 0.14 mm 0.20 mm 0.70 ± 0.10 mm 42 / 0.10 1.40 mm 0.18 mm 0.27 mm 2.25 ± 0.10 mm 28 7 / 0.13TAX3C approx.0.30 mm 0.15mm 0.205 mm 0.80 ± 0.10 mm 48 / 0.10 1.92 mm 0.22 mm 0.265 mm 2.45 ± 0.10 mm 26 7 / 0.16TAX3C approx.0.48 mm 0.15 mm 0.21 mm 0.90 ± 0.10 mm 53 / 0.10 2.00 mm 0.22 mm 0.28 mm 2.70 ± 0.10 mm 24 7 / 0.20TAX3C approx.0.60 mm 0.15 mm 0.20 mm 1.00 ± 0.10 mm 58 / 0.10 2.20 mm 0.22 mm 0.275 mm 2.90 ± 0.10 mm 24 11 /0.16TAX3C approx.0.61 mm 0.15 mm 0.195 mm 1.00 ± 0.10 mm 58 / 0.10 2.20 mm 0.22 mm 0.275 mm 2.90 ± 0.10 mm 32 7 / 0.08TAX4C approx.0.24 mm 0.14 mm 0.18 mm 0.60 ± 0.10 mm 52 / 0.10 1.61 mm 0.16 mm 0.195 mm 2.00 ± 0.10 mm 30 7 / 0.10TAX4C approx.0.30 mm 0.14 mm 0.20 mm 0.70 ± 0.10 mm 49 / 0.10 1.89 mm 0.20 mm 0.27 mm 2.25 ± 0.10 mm 28 7 / 0.13TAX4C approx.0.39 mm 0.15 mm 0.205 mm 0.80 ± 0.10 mm 55 / 0.10 2.13 mm 0.20 mm 0.235 mm 2.60 ± 0.10 mm 26 7 / 0.16TAX4C approx.0.48 mm 0.15 mm 0.21 mm 0.90 ± 0.10 mm 61 / 0.10 2.37 mm 0.22 mm 0.24 mm 2.85 ± 0.10 mm 30 7 / 0.10TAX7C approx.0.30 mm 0.14 mm 0.20 mm 0.70 ± 0.10 mm 62 / 0.10 2.30 mm 0.21 mm 0.25 mm 2.80 ± 0.10 mm   6.Characteristics： Items Specification Rating UL：80℃ 30V Dielectric Strength Spark Test AC2000V / 0.15sec. Insulation Resistance Min.5MW - Km (20℃) at DC 500V Flame Test UL：VW – 1SC 7.Marking：E54979 AWM 2851 30V-80℃ VW – 1SC □AWG / □TATUNG

1.Inner wiring of computers and videos.2.Special designs are subject to customers' requirements.   Specifications 1.Conductor：Tinned Copper Strand. 2.Insulation：FRPE ( Flame Retardant Polyethylene )or PE (Polyethylene)3.Wrapping Shield：Bare or Tinned Copper on Twisted Wir1.Conductor：Tinned Copper Strand. 2.Insulation：FRPE ( Flame Retardant Polyethylene )or PE (Polyethylene)3.Wrapping Shield：Bare or Tinned Copper on Twisted Wires4.Sheath：PVC( Polyvinyl Chloride) 5.Structure： Conductor FRPE Insulation Wrapping Shield Sheath AWG Construction Diameter Min.Thickness NominalThickness Diameter Const--ruction Diameter Min.Thickness NominalThickness Diameter 30 7 / 0.10TAX2C approx.0.30 mm 0.22mm 0.275mm 0.85 ± 0.10 mm 48 / 0.10 1.90 mm 0.16 mm 0.20 mm 2.30 ± 0.10 mm 28 7 / 0.13TAX2C approx.0.39 mm 0.212mm 0.265mm 0.92 ± 0.10 mm 50 / 0.10 2.04 mm 0.164 mm 0.205 mm 2.45 ± 0.10 mm 26 7 / 0.16TAX2C approx.0.48 mm 0.208mm 0.26mm 1.00 ± 0.10 mm 52 / 0.10 2.20 mm 0.20 mm 0.25 mm 2.70 ± 0.10 mm 24 7 / 0.20TAX2C approx.0.60 mm 0.20mm 0.25mm 1.10 ± 0.10 mm 54 / 0.10 2.40 mm 0.28 mm 0.35 mm 3.10 ± 0.10 mm 24 11 / 0.16TAX2C approx.0.61 mm 0.196mm 0.245mm 1.10 ± 0.10 mm 54 / 0.10 2.40 mm 0.28 mm 0.35 mm 3.10 ± 0.10 mm 32 7 / 0.08TAX3C approx.0.24 mm 0.204mm 0.255mm 0.75 ± 0.10 mm 55 / 0.08 1.78 mm 0.228 mm 0.285 mm 2.35 ± 0.10 mm 30 7 / 0.10TAX3C approx.0.30 mm 0.22mm 0.275mm 0.85 ± 0.10 mm 50 / 0.10 2.03 mm 0.188 mm 0.235 mm 2.50 ± 0.10 mm 28 7 / 0.13TAX3C approx.0.39 mm 0.164mm 0.205mm 0.92 ± 0.10 mm 53 / 0.10 2.18 mm 0.188 mm 0.235 mm 2.65 ± 0.10 mm 26 7 / 0.16TAX3C approx.0.48 mm 0.208mm 0.26mm 1.00 ± 0.10 mm 58 / 0.10 2.35 mm 0.22 mm 0.275 mm 2.90 ± 0.10 mm 24 7 / 0.20TAX3C approx.0.60 mm 0.20mm 0.25mm 1.10 ± 0.10 mm 63 / 0.10 2.57 mm 0.252 mm 0.315 mm 3.20 ± 0.10 mm 24 11 / 0.16TAX3C approx.0.61 mm 0.20mm 0.25mm 1.10 ± 0.10 mm 63 / 0.10 2.57 mm 0.252 mm 0.315 mm 3.20 ± 0.10 mm 28 7 / 0.13TAX4C approx.0.39 mm 0.212mm 0.265mm 0.92 ± 0.10 mm 53 / 0.10 2.46 mm 0.176 mm 0.22 mm 2.90 ± 0.10 mm 30 7 / 0.10TAX4C approx.0.30 mm 0.22mm 0.275mm 0.85 ± 0.10 mm 60 / 0.10 2.25 mm 0.24 mm 0.30 mm 2.85 ± 0.10 mm Conductor PE Insulation Wrapping Shield Sheath 26 7 / 0.10TAX2C approx.0.30 mm 0.20mm 0.20mm 0.80 ± 0.10 mm 46 / 0.10 1.80mm 0.20 mm 0.25 mm 2.30 ± 0.10 mm 24 7 / 0.13TAX2C approx.0.39 mm 0.212mm 0.265mm 0.92 ± 0.10 mm 50 / 0.10 2.04 mm 0.164 mm 0.205 mm 2.45 ± 0.10 mm 24 7 / 0.16TAX2C approx.0.48 mm 0.208mm 0.26mm 1.00 ± 0.10 mm 52 / 0.10 2.20 mm 0.20 mm 0.25 mm 2.70 ± 0.10 mm 28 7 / 0.20TAX2C approx.0.60 mm 0.20mm 0.25mm 1.10 ± 0.10 mm 54 / 0.10 2.40 mm 0.24 mm 0.30 mm 3.00 ± 0.10 mm 30 11 / 0.16TAX2C approx.0.61 mm 0.196mm 0.245mm 1.10 ± 0.10 mm 54 / 0.10 2.40 mm 0.24 mm 0.30 mm 3.00 ± 0.10 mm 6.Characteristics： Items Specification Rating UL：80℃ 30V Dielectric Strength Spark Test AC2000V / 0.15sec. Insulation Resistance Min.5MW - Km (20℃) at DC 500V Flame Test UL：VW – 1   7.Marking： FRPE：E54979 AWM 2791 30V-80℃ VW – 1SC □AWG / □TATUNG PE：E54979 AWM 2791 30V-80℃ VW – 1 □AWG / □TATUNG

1.Inner wiring of computers and videos.2.Special designs are subject to customers' requirements.   Specifications 1.Conductor：Tinned Copper Strand. 2.Insulation：PVC (Polyvinyl Chloride )3.Wrapping Shield：Bare or Tinned Copper Wrapping on Twisted Wires4.Sheath：PVC( Polyvinyl Chloride) 5.Structure： Conductor Insulation Wrapping Shield Sheath AWG Const--ruction Diameter Min.Thickness NominalThickness Diameter Const--ruction Diameter Min.Thickness NominalThickness Diameter 30 7 / 0.10TAx2C approx.0.30 mm 0.178 mm 0.25 mm 0.80 ± 0.10 mm 46 / 0.10 1.80 mm 0.30mm 0.40mm 2.60 ± 0.10 mm 28 7 / 0.13TAx2C approx.0.39 mm 0.25 mm 0.90 ± 0.10 mm 50 / 0.10 2.00 mm 2.80 ± 0.10 mm 26 7 / 0.16TAx2C approx.0.48 mm 0.245 mm 0.97 ± 0.10 mm 52 / 0.10 2.14 mm 3.00 ± 0.10 mm 24 7 / 0.20TAx2C approx.0.60 mm 0.25 mm 1.10 ± 0.10 mm 59 / 0.10 2.40 mm 3.20 ± 0.10 mm 24 11/ 0.16TAx2C approx.0.61 mm 0.245 mm 1.10 ± 0.10 mm 54 / 0.10 2.40 mm 3.20 ± 0.10 mm 22 7 / 0.26TAx2C approx.0.78 mm 0.26 mm 1.30 ± 0.10 mm 58 / 0.08 2.84 mm 3.65 ± 0.10 mm 20 7 / 0.32TAx2C approx.0.96 mm 0.26 mm 1.50 ± 0.10 mm 65 / 0.10 3.24 mm 4.05 ± 0.10 mm 30 7 / 0.10TAx3C approx.0.30 mm 0.26 mm 0.80 ± 0.10 mm 48 / 0.10 1.92 mm 2.85 ± 0.10 mm 28 7 / 0.13TAx3C approx.0.39 mm 0.26 mm 0.90 ± 0.10 mm 53 / 0.10 2.14 mm 3.00 ± 0.10 mm 26 7 / 0.16TAx3C approx.0.48 mm 0.245 mm 0.97 ± 0.10 mm 58 / 0.10 2.30 mm 3.25 ± 0.10 mm 24 7 / 0.20TAx3C approx.0.60 mm 0.25 mm 1.10 ± 0.10 mm 63 / 0.10 2.57 mm 3.50 ± 0.10 mm 24 11/ 0.16TAx3C approx.0.61 mm 0.245 mm 1.10 ± 0.10 mm 63 / 0.10 2.57 mm 3.50 ± 0.10 mm 22 7 / 0.26TAx3C approx.0.76 mm 0.27 mm 1.30 ± 0.10 mm 54 / 0.10 2.84 mm 3.65 ± 0.10 mm 6.Characteristics： Items Specification Rating UL：80℃ ，CSA：80℃ 300V Dielectric Strength Spark Test AC2000V / 0.15sec. Insulation Resistance Min.5MW - Km (20℃) at DC 500V Flame Test UL：VW – 1SC ，CSA：FT1 7.Marking (General)：E54979 AWM 2547 80℃ VW – 1SC □AWG / □TATUNGLL58500 CSA AWM I / II A / B 80℃ 300V FT1( P. B ):E54979 AWM 2547 80℃ VW–1SC □AWG/□LL58500CSA AWM I / II A / B 80℃ 300V FT1

1.Inner wiring of computers and videos.2.Special designs are subject to customers' requirements.   Specifications 1.Conductor：Tinned Copper Strand.2.Insulation：FRPE ( Flame Retardant Polyethylene )or PE (Polyethylene)3.Wrapping Shield：Bare or Tinned Copper on Twisted Wires4.Sheath：PVC(Polyvinyl Chloride) 5.Structure： Conductor Insulation Wrapping Shield Sheath AWG Const--ruction Diameter Min.Thickness NominalThickness Diameter Const--ruction Diameter Min.Thickness NominalThickness Diameter 32 7 / 0.08TA approx.0.24 mm 0.051 mm 0.23 mm 0.70 ± 0.10 mm 35 / 0.10 approx.1.60 mm 0.178 mm 0.225 mm 2.05 ± 0.10 mm 30 7 / 0.105TA approx.0.315 mm 0.051 mm 0.23 mm 0.75 ± 0.10 mm 38 / 0.10 approx.1.70 mm 0.178 mm 0.225 mm 2.15 ± 0.10 mm 28 7 / 0.13TA approx.0.39 mm 0.051 mm 0.23mm 0.85 ± 0.10 mm 41 / 0.10 approx.1.90 mm 0.178 mm 0.25 mm 2.40 ± 0.10 mm 26 7 / 0.16TA approx.0.48 mm 0.051 mm 0.235 mm 0.95 ± 0.10 mm 46 / 0.10 approx.2.10 mm 0.229 mm 0.25 mm 2.60 ± 0.10 mm 24 7 / 0.20TA approx.0.60 mm 0.051 mm 0.225 mm 1.05 ± 0.10 mm 52 / 0.10 approx.2.30 mm 0.229 mm 0.30 mm 2.90 ± 0.10 mm   6.Characteristics： Items Specification Rating UL：80℃ 30V Dielectric Strength Spark Test AC 500V / min. Insulation Resistance Min.5MW - Km (20℃) at DC 500V Flame Test UL：VW – 1SC   7.Marking：TATUNG E54979 AWM 20005 80℃ VW – 1SC □AWG / 2

1.Inner wiring of computers and videos.2.Special designs are subject to customers' requirements.   Specifications 1.Conductor：Tinned Copper Strand2.Insulation：FRPE (Flame Retardant Polyethylene) 3.Wrapping Shield：Bare or Tinned Copper Wires Wrapped Insulation.4.Sheath：PVC( Polyvinyl Chloride) 5.Structure： Conductor Insulation Wrapping Shield Sheath AWG Construction Diameter Min.Thickness NominalThickness Diameter Const--ruction Diameter Min.Thickness NominalThickness Diameter 32 7 / 0.08TA approx.0.24 mm 0.178 mm 0.23mm 0.70 ± 0.10 mm 27 / 0.08 approx.0.86 mm 0.178mm 0.22mm 1.30 ± 0.10 mm 30 7 / 0.10TA approx.0.30 mm 0.178 mm 0.225 mm 0.75 ± 0.10 mm 24 / 0.10 approx.0.95 mm 0.178mm 0.225mm 1.40 ± 0.10 mm 28 7 / 0.13TA approx.0.39 mm 0.178 mm 0.23mm 0.85 ± 0.10 mm 27 / 0.10 approx.1.05 mm 0.178mm 0.225mm 1.50 ± 0.10 mm 26 7 / 0.16TA approx.0.48 mm 0.178 mm 0.235 mm 0.95 ± 0.10 mm 29 / 0.10 approx.1.15 mm 0.178mm 0.25mm 1.65 ± 0.10 mm 24 7 / 0.20TA approx.0.60 mm 0.178 mm 0.225 mm 1.05 ± 0.10 mm 32 / 0.10 approx.1.25 mm 0.178mm 0.25mm 1.75 ± 0.10 mm   6.Characteristics： Items Specification Rating UL：80℃ 30V Dielectric Strength Spark Test AC 1000V / 0.15sec. Insulation Resistance Min.5MW - Km (20℃) at DC 500V Flame Test UL：VW – 1SC   7.Marking：TATUNG E54979 AWM 1792 80℃ VW – 1SC □AWG

1.Inner wiring of computers and videos.2.Special designs are subject to customers' requirements.   Specifications 1.Conductor：Top-Tinned Copper Strand or Tinned Single. 2.Insulation：FRPE (Flame Retardant Polyethylene) 3.Drain Wire：Top-Tinned Copper Strand or Tinned Single.4.Shield：Al-Mylar Tape Longitudinally Folded Around Insulation and Drain Wire.5.Sheath：PVC (Polyvinyl Chloride)6.Structure： Conductor Insulation Sheath AWG Construction Diameter Min.Thickness NominalThickness Diameter Al-mylarTape Diameter Min.Thickness NominalThickness Diameter 30 7 / 0.102ATC approx.0.306 mm 0.102 mm 0.27 mm 0.85 ± 0.10 mm 0.025 × 6 mm 7 / 0.102 0.127mm 0.40mm 1.70 ± 0.10 mmX1.90 ± 0.10mm 28 7 / 0.13ATC approx.0.39 mm 0.102 mm 0.25 mm 0.92 ± 0.10 mm 0.025 × 6 mm 7 / 0.13 0.127mm 0.40mm 1.80 ± 0.10 mmX2.10 ± 0.10mm 26 7 / 0.16ATC approx.0.48 mm 0.102 mm 0.26 mm 1.00± 0.10 mm 0.025 × 6 mm 7 / 0.16 0.127mm 0.40mm 1.90 ± 0.10 mmX2.40 ± 0.10mm 24 7 / 0.20ATC approx.0.60 mm 0.102 mm 0.25 mm 1.10 ± 0.10 mm 0.025 × 6 mm 7 / 0.20 0.127mm 0.40mm 2.00 ± 0.10 mmX2.50 ± 0.10mm 24 1 / 0.51TA approx.0.51 mm 0.102 mm 0.29 mm 1.10 ± 0.10 mm 0.025 × 6 mm 7 / 0.51 0.127mm 0.40mm 2.00 ± 0.10 mmX2.50 ± 0.10mm Note：TA：Tinned Copper , ATC：Top – Tinned Strand Copper Wire.   7.Characteristics： Items Specification Rating UL：80℃ 30V Dielectric Strength Spark Test AC 2000V / 0.15sec. Insulation Resistance Min.5MW - Km (20℃) at DC 500V Flame Test UL：VW – 1   8.Marking：E54979 AWM 1691 30V - 80℃ VW – 1SC □AWG TATUNG

1.Inner wiring of computers and videos.2.Special designs are subject to customers' requirements.   Specifications 1.Conductor：Bare or Tinned Copper Strand2.Insulation：FRPE (Flame Retardant Polyethylene) 3.Wrapping Shield：Bare or Tinned Copper Wires Wrapped on Insulation4.Sheath：PVC ( Polyvinyl Chloride) 5.Structure： Conductor Insulation Wrapping Shield Sheath AWG Construction Diameter Min.Thickness NominalThickness Diameter Construction Diameter Min.Thickness NominalThickness Diameter 28 7 / 0.13TA approx.0.39 mm 0.22 mm 0.265 mm 0.92 ± 0.10 mm 28 / 0.10 approx.1.12 mm 0.192mm 0.24mm 1.60 ± 0.10 mm 26 7 / 0.16TA approx.0.48 mm 0.208 mm 0.26 mm 1.00 ± 0.10 mm 31 / 0.10 approx.1.05 mm 0.20mm 0.25mm 1.70 ± 0.10 mm 24 7 / 0.20TA approx.0.60 mm 0.20 mm 0.25 mm 1.10 ± 0.10 mm 33 / 0.10 approx.1.30 mm 0.20mm 0.25mm 1.80 ± 0.10 mm 24 11 / 0.16TA approx.0.61 mm 0.196 mm 0.245 mm 1.10 ± 0.10 mm 33 / 0.10 approx.1.30 mm 0.20mm 0.25mm 1.80 ± 0.10 mm Note：TA：Tinned Copper , A：Bare Copper   6.Structure： Items Specification Rating UL：80℃ 30V Dielectric Strength Spark Test AC 2000V / 0.15sec. Insulation Resistance Min.5MW - Km (20℃) at DC 500V Flame Test UL：VW – 1   7.Marking：E54979 AWM 1691 30V - 80℃ VW – 1SC □AWG TATUNG

1.Inner wiring of computers and videos.2.Special designs are subject to customers' requirements.   Specifications 1.Conductor：Annealed Copper Wire (Tinned Strand)2.Insulation：PVC (Polyvinyl Chloride) 3.Wrapping Shield：Annealed Copper Wire ( Bare or Tinned Copper )4.Sheath：PVC ( Polyvinyl Chloride) 5.Structure： Conductor Insulation Wrapping Shield Sheath AWG Construction Diameter Min.Thickness NominalThickness Diameter Const--ruction Diameter Min.Thickness NominalThickness Diameter 28 7 / 0.13TA approx.0.39 mm 0.331 mm 0.405 mm 1.20 ± 0.10 mm 23 / 0.12 1.44 mm 0.331mm 0.48mm 2.40 ± 0.10 mm 26 7 / 0.16TA approx.0.48 mm 0.41 mm 1.30 ± 0.10 mm 22 / 0.12 1.54 mm 0.331mm 0.48mm 2.50 ± 0.10 mm 24 7 / 0.20TA approx.0.60 mm 0.45 mm 1.45 ± 0.10 mm 36 / 0.12 1.69 mm 0.331mm 0.48mm 2.70 ± 0.10 mm 24 11 / 0.16TA approx.0.61 mm 0.42 mm 1.45 ± 0.10 mm 36 / 0.12 1.69 mm 0.331mm 0.48mm 2.70 ± 0.10 mm 22 7 / 0.26TA approx.0.78 mm 0.41 mm 1.60 ± 0.10 mm 37 / 0.13 1.86 mm 0.331mm 0.52mm 3.00 ± 0.10 mm 22 17 / 0.16TA approx.0.76 mm 0.47 mm 1.60 ± 0.10 mm 37 / 0.13 1.86 mm 0.331mm 0.52mm 3.00 ± 0.10 mm 20 26 / 0.16TA approx.0.94 mm 0.48 mm 1.90 ± 0.10 mm 42 / 0.13 2.16 mm 0.331mm 0.495mm 3.15 ± 0.10 mm 18 34 / 0.18TA approx.1.20 mm 0.425 mm 2.05 ± 0.10 mm 45 / 0.13 2.31 mm 0.331mm 0.495mm 3.30 ± 0.10 mm 16 26 / 0.26TA approx.1.50 mm 0.425 mm 0.425 ± 0.10 mm 51 / 0.13 2.61 mm 0.331mm 0.495mm 3.60 ± 0.10 mm 6.Characteristics： Items Specification Rating UL：80℃ 300V，CSA ：90℃ 600V(Peak) Dielectric Strength AC 2000V / min.(Between Conductor and Shield) Spark Test AC 3000V / 0.15sec. Insulation Resistance Min.10MW - Km (20℃) at DC 500V Flame Test UL：VW-1SC， CSA：FT-1 7.Marking：E54979 AWM 1185 80℃ 300V VW – 1SC □AWG TATUNG LL58500 CSA TR – 64 90℃ FT1
